TAVOL TA 20 Wheel Loader
TAVOL Brand
Product Description
TAVOL TA20 Construction large Front End Wheel Loader with high quality diesel engine
TAVOL Wheel Loader is a kind of earth and stone construction machinery widely used in highway, railway, construction, hydro power, port,mine and other construction projects. , hard soil, etc. for light shovel excavation. It can also carry out bulldozing, lifting and loading and unloading of other materials such as wood by changing different attachments.
Main Specification:
| NO. | Item | Specification | NO. | Item | Specification |
| 1 | Bucket Capacity | 1.1m³ | 10 | Min.Turning Radius(Outside of read wheel) | 4950mm |
| 2 | Rated Load | 2000 Kg | 11 | Steering Angle | 36° |
| 3 | Dumping Height | 3200 mm | 12 | Min.Ground Clearance | 360 mm |
| 4 | Dumping Reach | 960mm | 13 | Wheel Base | 2580mm |
| 5 | Boom Lifting Time | 4.5S | 14 | Wheel Tread | 1620 mm |
| 6 | Max Working Speed | 22 km/h | 15 | Rated Power | 60KW/2400 rpm |
| 7 | Max.Breakout Force | 63 kN | 16 | Tyre | 16/70-24 |
| 8 | Max. Drawing Force | 52 kN | 17 | Overall Dimensions | 6410*2100*2960mm |
| 9 | Max.Grade Ability | 25° | 18 | Operating Weight | 6700 Kg |

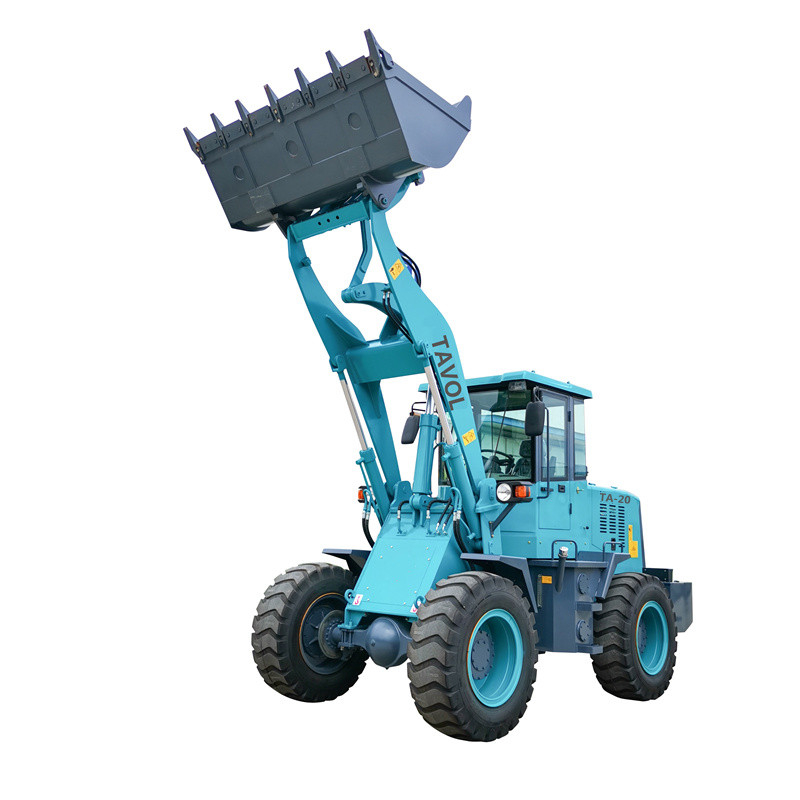

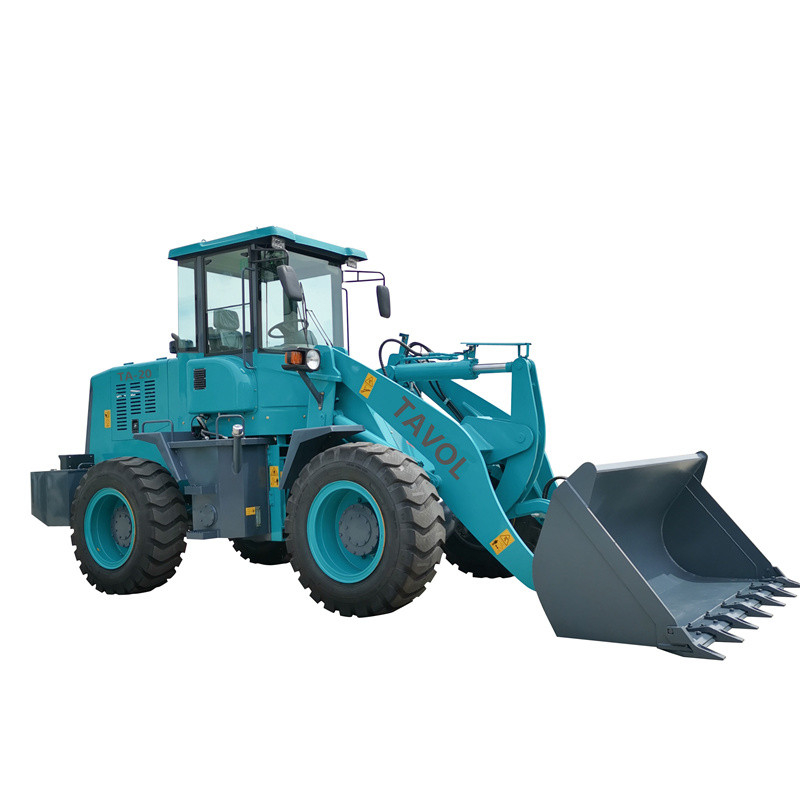

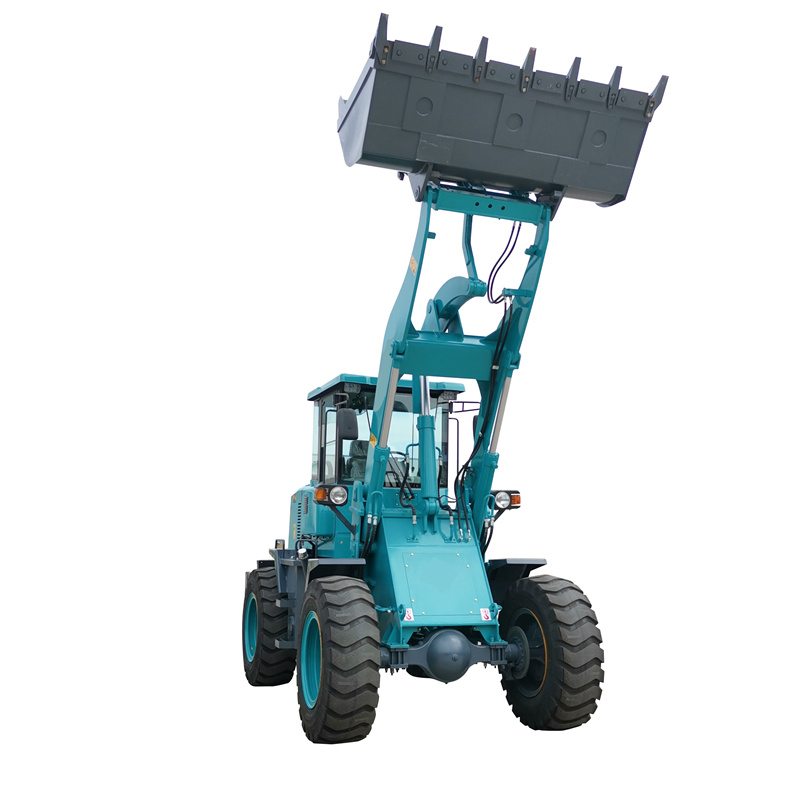

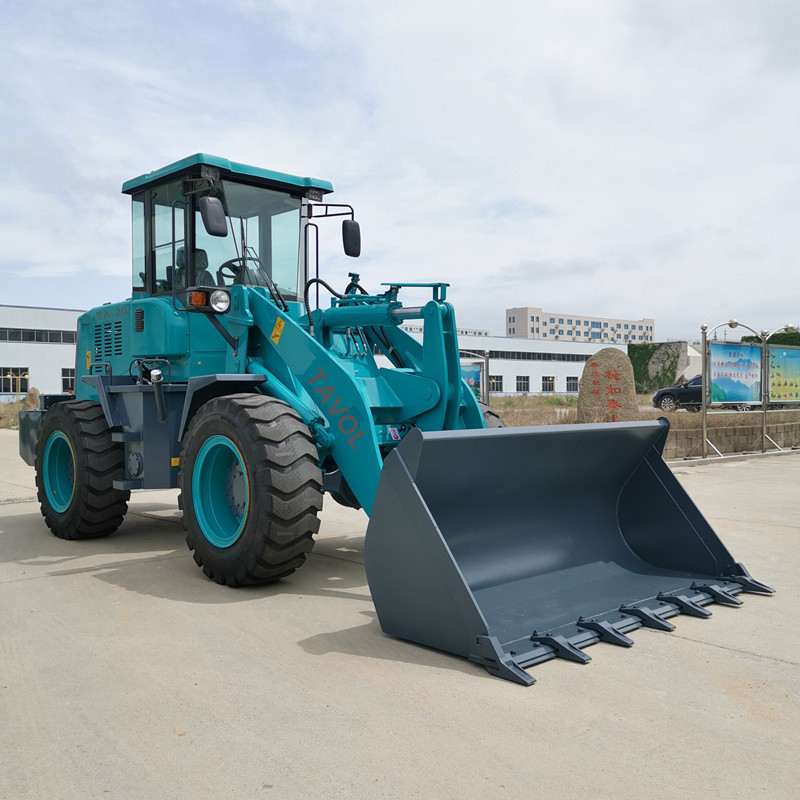

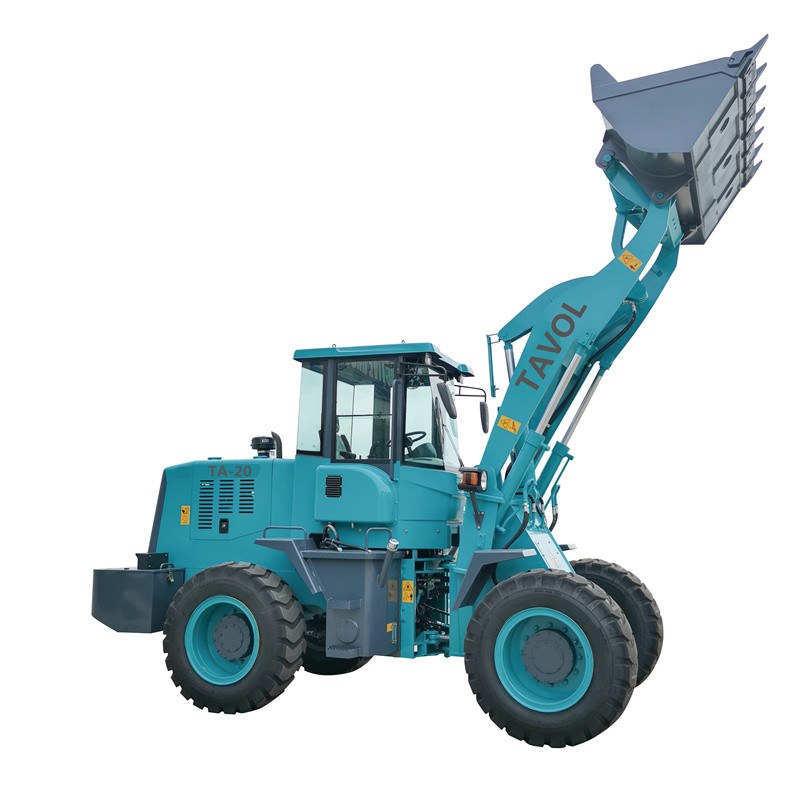

DETAILED PICTURES:
Company Profile:
Tavol Company was established in 2012, A Chinese Construction Machinery Manufacturing Brand that Provides Customized Services. Mainly Produces More Than 20 Models of Wheel Loaders with a Load Capacity Ranging From 0.5 tons to 6 tons. and Other Related Construction and Agricultural Machinery, Such as Forklifts , Excavators, Cranes and Tractors etc.
