TAVOL TA 50 Wheel Loader
TAVOL Brand
8429510000
Product Description
958 G 5 Ton Wheel loader with 162 KW Power Engine Joysticks control wheelloader
TAVOL 5 Ton Wheel loader adopt Shangchai Caterpillars tech SC11CB220G2B1 engine is adopted, large torque backup
and strong power.,Improve your work efficiency and create more value for you.
Main Specification:
| NO. | Item | Specification | NO. | Item | Specification |
| 1 | Bucket Capacity | 3m³ | 10 | Min.Turning Radius(Outside of read wheel) | 6360mm |
| 2 | Rated Load | 5000 Kg | 11 | Steering Angle | 35° |
| 3 | Dumping Height | 3100 mm | 12 | Min.Ground Clearance | 478 mm |
| 4 | Dumping Reach | 1285mm | 13 | Wheel Base | 3200mm |
| 5 | Boom Lifting Time | 6.8S | 14 | Wheel Tread | 2250 mm |
| 6 | Max Working Speed | 36 km/h | 15 | Rated Power | 162KW/2200 rpm |
| 7 | Max.Breakout Force | 170 kN | 16 | Tyre | 23.5-25 |
| 8 | Max. Drawing Force | 150 kN | 17 | Overall Dimensions | 7960*3070*3490mm |
| 9 | Max.Grade Ability | 28° | 18 | Operating Weight | 17000 Kg |

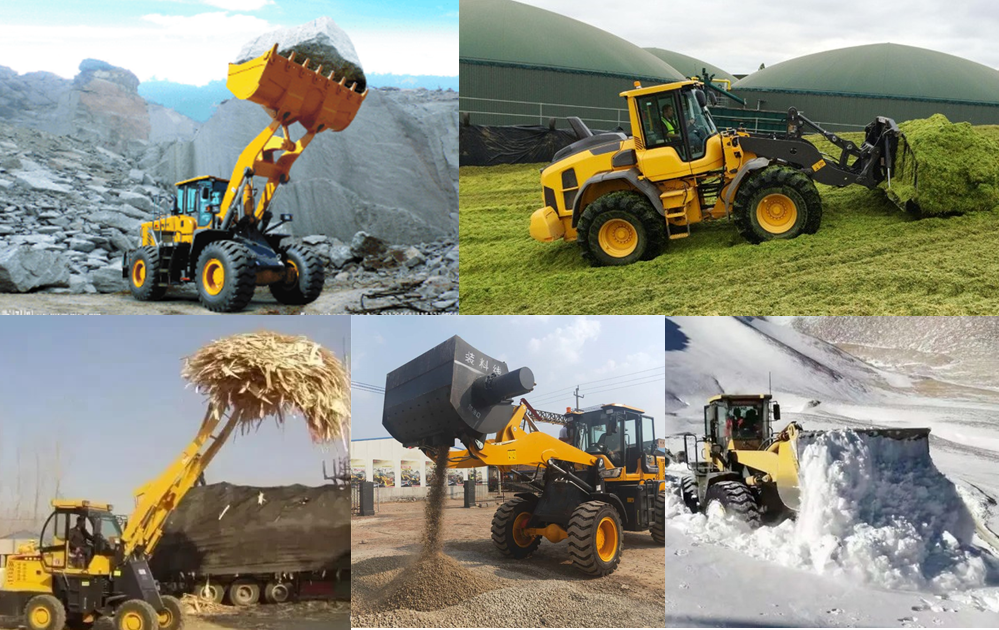

DETAILED PICTURES:

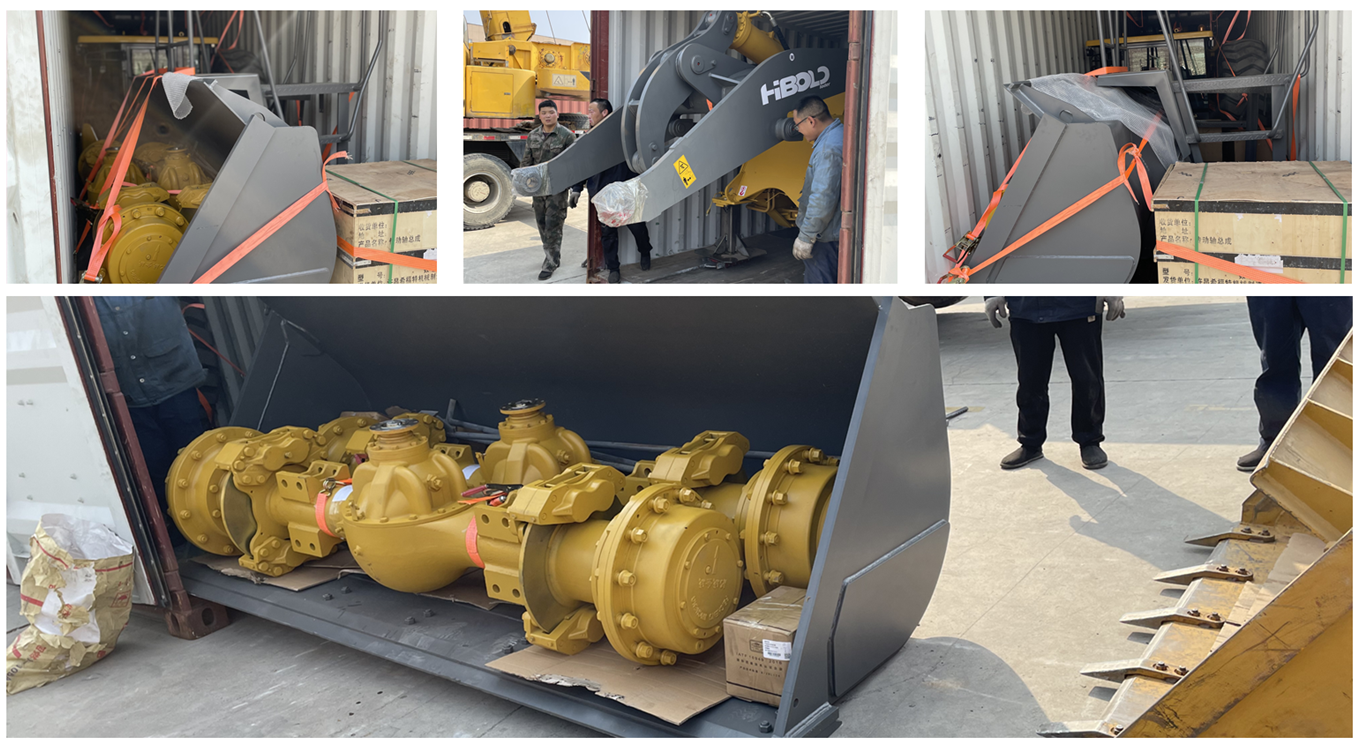

Loading Conatainer
Company Profile:
Tavol Company was established in 2012, A Chinese Construction Machinery Manufacturing Brand that Provides Customized Services.
Mainly Produces More Than 20 Models of Wheel Loaders with a Load Capacity Ranging From 0.5 tons to 6 tons.
and Other Related Construction and Agricultural Machinery, Such as Forklifts , Excavators, Cranes and Tractors etc.
