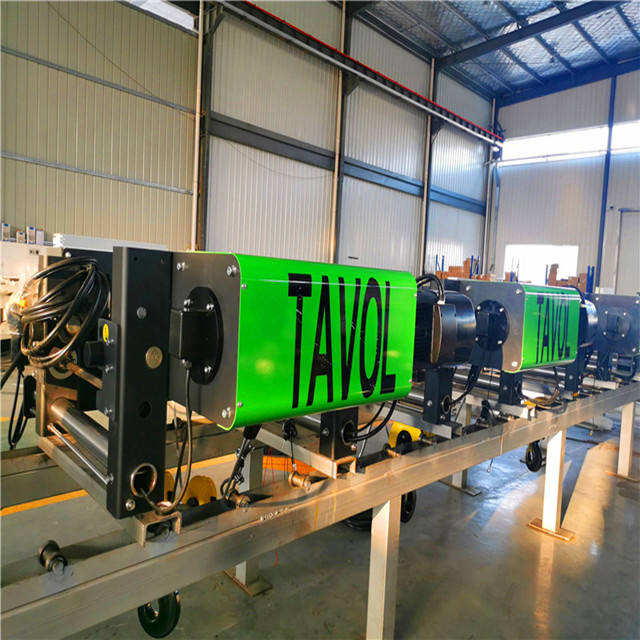

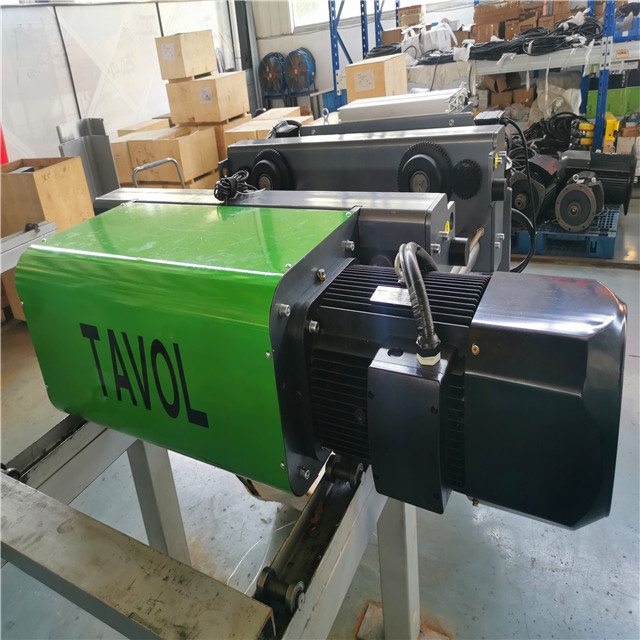

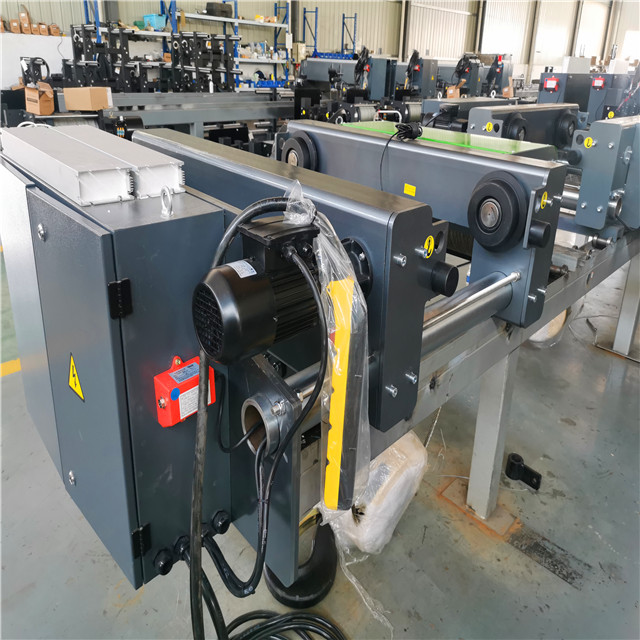

Wire Rope Electric Hoist
Tavol
035
Product Description
As the most widely used lifting device, wire rope electric hoist has always been the first choice for light and small lifting as the most commonly used equipment, then a suitable for various working conditions and environments, to meet the needs of various countries and regions of electric hoist, has become inevitable, as this, Tavol Brand European Design wire rope hoist was born, Heritage FEM. European standard design concept, do our best to create higher value for customers, truly save more raw materials for customers, reduce more maintenance costs, TAVOL services to promote industrial development.
Any needs for overhead crane, welcome to contact us with the following specification :
1.Lift capacity ?
2. Lifting height (under hook) ?
3. Local power supply: in china is 380V/50Hz/3phase ,how about in your factory ?

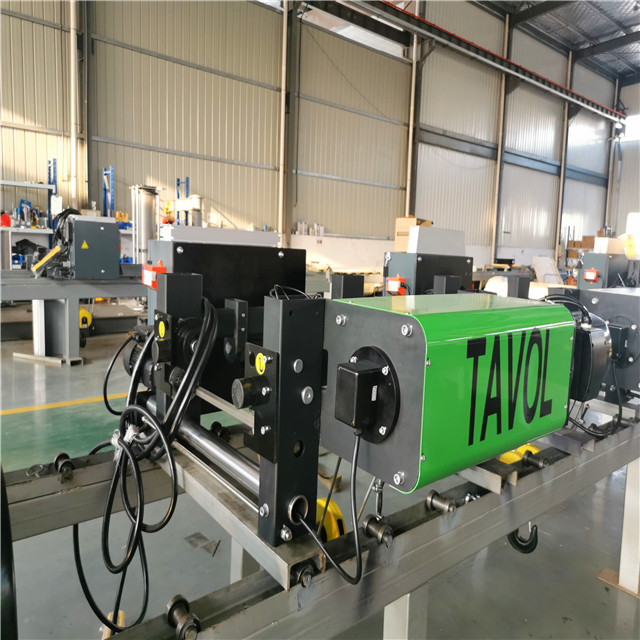

Advantages of X Model Euro Design Wire Rope Hoist
Full variable frequency drive - energy saving |
Protection class IP54- long life |
Noise as low as 65 decibels - mute |
High level of work - high efficiency |
Built-in precision planetary reducer drive - safe and efficient |
Advanced Design Parts
Selection table for single beam steel wire rope electric hoist
Rated Load Capacity t | Work duty FEM | Work Duty ISO | Lift Height m | Lift Speed M/min | Trolley speed M/min | ||
3.2T | 2m | M5 | 6/9/12/15/18 | 0-5.0 | 0-20 | ||
3.2T | 2m | M5 | 6/9/12/15/18 | 0-8.0 | 0-20 | ||
5T | 2m | M5 | 6/9/12/15/18 | 0-5.0 | 0-20 | ||
5T | 2m | M5 | 6/9/12/15/18 | 0-8.0 | 0-20 | ||
8T | 2m | M5 | 6/9/12/15/18 | 0-4.0 | 0-20 | ||
8T | 2m | M5 | 6/9/12/15/18 | 0-4.5 | 0-20 | ||
10T | 2m | M5 | 6/9/12/15/18 | 0-4.0 | 0-20 | ||
10T | 2m | M5 | 6/9/12/15/18 | 0-5.0 | 0-20 | ||
12.5T | 2m | M5 | 6/9/12/15/18 | 0-4.4 | 0-20 | ||
12.5T | 2m | M5 | 6/9/12/15/18 | 0-5.0 | 0-20 | ||
16T | 2m | M5 | 6/9/12/15/18 | 0-4.4 | 0-20 | ||
16T | 2m | M5 | 6/9/12/15/18 | 0-5.0 | 0-20 | ||
20T | 2m | M5 | 6/9/12/15/18 | 0-3.6 | 0-20 | ||
20T | 2m | M5 | 6/9/12/15/18 | 0-5.0 | 0-20 | ||

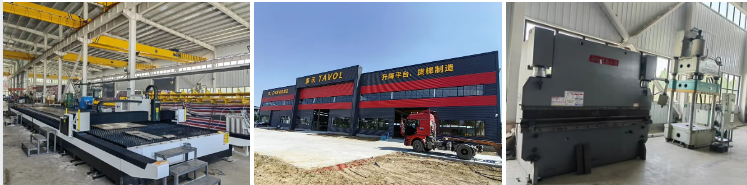

Our company
avol Group, a manufacturing and trading combo, fabricate and export cranes for more than 13 years。
We can fabricate and supply following product mainly : + Overhead Crane, Gantry Crane + Farm Tractor, Forklift + Tower Crane, Construction Lift
We are sure we will be your best choice .
Any needs for overhead crane, welcome to contact us with the following specification :
1.Lift capacity ?
2. Lifting height (under hook) ?
3. Local power supply: in china is 380V/50Hz/3phase ,how about in your factory ?
Feel Free to contact us at anytime, Hope can become your partners in the near future
contact Ms.Cherry Liu wechat/mobile/whatsapp:+008619862318428
