MH universal overhead gantry crane
Tavol
029
Product Description

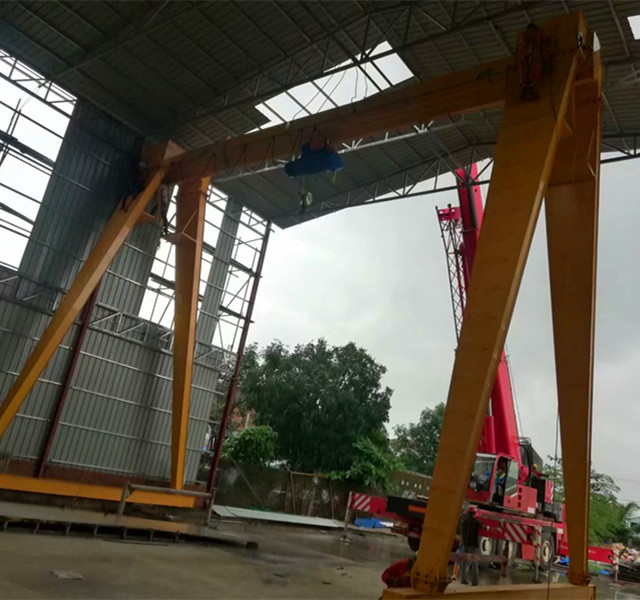

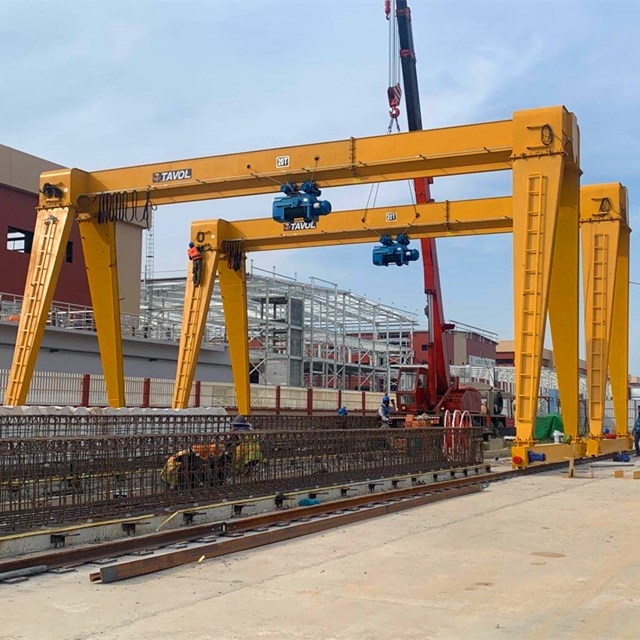

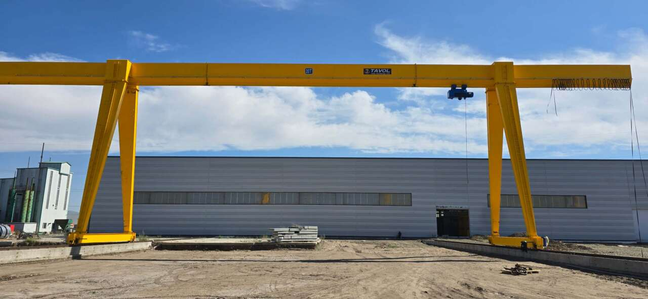

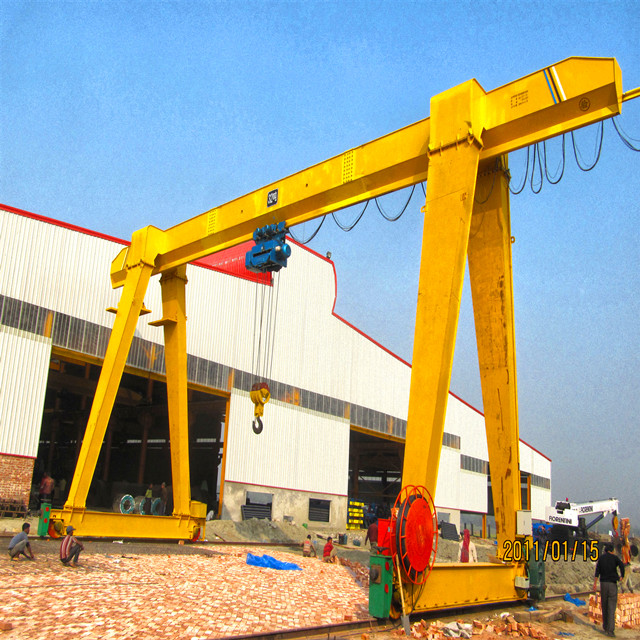

Tavol Brand MH Model Single Girder Gantry Crane with Mono Rail Wire Rope Hoist
MH model single girder gantry crane is similar to a bridge crane, but instead of moving on suspended runways,
the crane uses legs to support the bridge, and the electric hoist. The crane legs travel on fixed rails embedded in,
or laid on top of the floor.
01- Overhead gantry crane single girder MH Model Structure:
MH model gantry crane is a frame gantry crane and rail mounted gantry crane, similar to a overhead bridge crane,
but instead of moving on suspended runways, the crane uses legs to support the bridge, and the electric hoist.
The crane legs travel on fixed rails embedded in, or laid on top of the floor.
02- Overhead gantry crane single girder MH Model Specification:
SI | Descriptions | Reference Data |
1 | Single girder gantry crane capacity | 1 ton, 2 ton, 3 ton, 5 ton, 10 ton, 15 ton, 20 ton, 32 ton |
2 | Single girder gantry crane Span | 3-31.5M |
3 | Single girder crane Lifting height | 6-12M |
4 | Single girder gantry crane Work duty | A3/A4 - A5/M5 |
5 | Overhead Gantry Crane Control method | Remote control or Pendant control |
6 | Electrical parts | CHINT or Schneider |
7 | Gantry Crane Motors | Chinese Nanjing brand |
8 | Gantry Crane Bearings | Chinese famous brand "HRB" |
9 | Gantry Crane Hook | Forged hook with safety lock |
10 | Gantry Crane Hoist Lifting speed | 0-8M/Min (8/0.8m/min) |
11 | Crane hoist Traverse speed | 0-20M/Min |
12 | Overhead gantry Crane Long travelling speed | 0-20M/Min (20/30m/min) |
13 | Variable frequency drives | Optional |
14 | Overhang part | Optional |

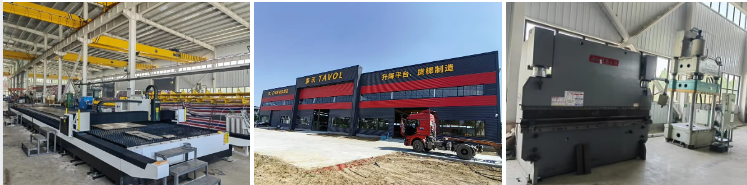

03- Our company

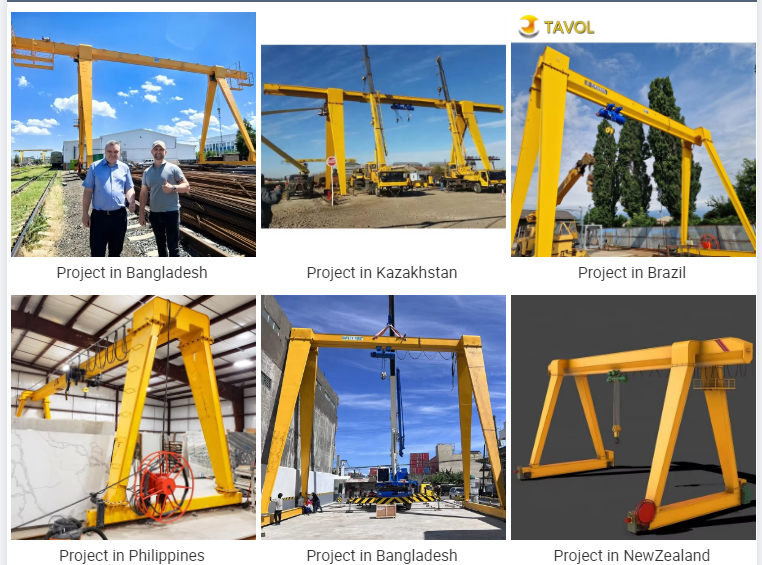

04-Successful products
IF you have inquiry for double girder overhead crane, please let us know the following information as below:
1. Lift capacity?
2. Lift height?
3. Span?
4. Travel length?
5. Power supply in your local? Is 380V/50Hz/3P?
6. Crane Long Travelling distance ?
contact Ms.Cherry Liu wechat/mobile/whatsapp:+008619862318428
