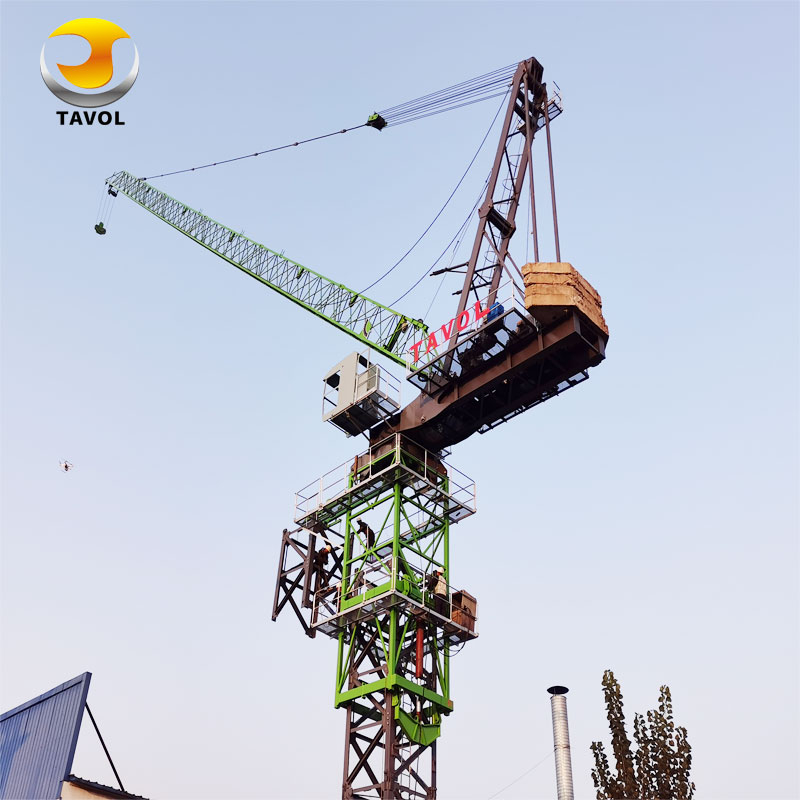

Luffing Jib Tower Crane

Luffing jib tower crane is designed by Tavol Cranes Group .
The performance & technical specification is advanced in China, has reached the international advanced level.
Except the 10t tower crane , we can supply other capacity tower crane from 6t to 16t .
We have more than 30 years production history and more than 10 years of overseas business experience.
TAVOL brand tower crane have exported to many countries, such as USA, Germany, Brazil, UK, Bangladesh, Philippines, Sri Lanka,Vietnam , Maldives, Cambodia, Oman, Saudi Arabia, Sudan, Kenya, Guinea, Georgia, Indonesia, South America,etc.
max .load :
free standing height:
max anchorage height:
mast size:
jib length:
Quantity:
  • 5020 Luffing jib tower crane
  • TAVOL
  • 84262000

Product Description

Luffing Jib Tower Crane


Product Description:

D125-5020 10t Luffing tower crane is designed by Tavol Cranes Group . The performance & technical specification is advanced in China, has reached the international advanced level.

Except the 10t tower crane , we can supply other capacity tower crane from 6t to 16t .
We have more than 30 years production history and more than 10 years of overseas business experience.

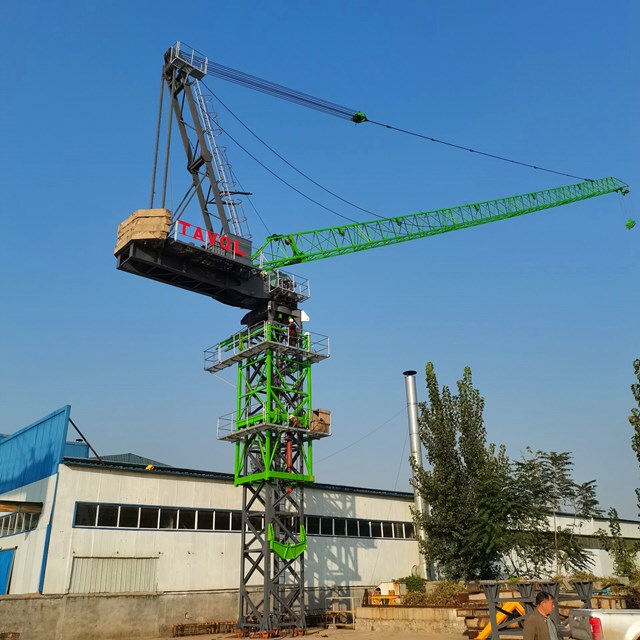

luffing crane

Technical datas:


1.It is very convenient to mount and demount. The power unit, hoisting and luffing mechanism are installed on the turntable, which has reduced the requirements to installation.


2.The lifting, luffing and slewing mechanism are adopted with speed-regulating technology so that its running and operation is smoother and more reliable.

3.Large operating range, multi-style work and wide scope of application.

4.The electrical control elements are imported, which are reliable and have long life. The control system is highly automating so it is convenient to operate and to keep all the functioning data of tower crane under control.

5.Complete safety devices.

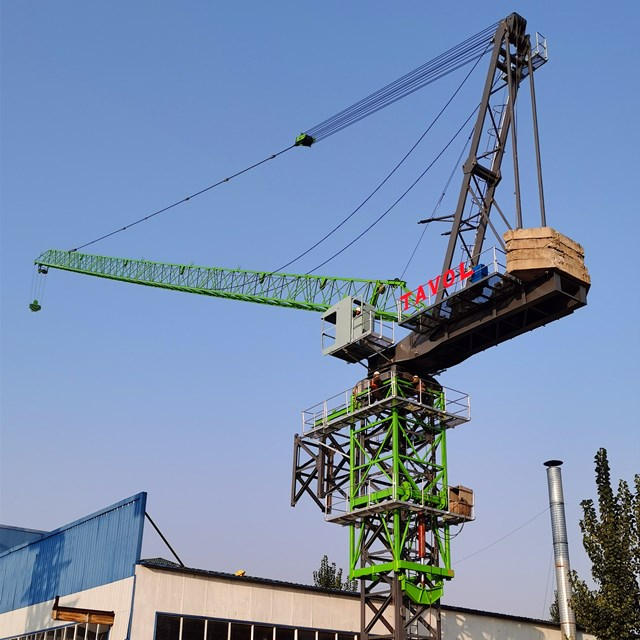

luffing jib tower crane

Main Specification

Series
D125 luffing tower crane
Standard Model
5020
Max. Lift Load
10t
Tip Load
2.0t
Free Standing Height
37.5m
Lifting height
50m
Max. Anchorage Height
198m
Jib Length
50m
Mast size
2.0×2.0×3m pin type
Lifting Speed
4.6-92m/min
Slewing speed
0.75r/min
Jack climbing speed
0.5m/min

Optional model we can Manufacture:


Model
Standard model
Jib length
(m)
Tip load
(ton)
Max.load(ton)
Free Standing  Height
(m)
Mast section size(m)
D120
4522
45
2.2
6
27
1.6x1.6x3
D120
4522
45
2.2
8
27
1.6x1.6x3
D125
5020
50
2.0
10
37.5
2×2×3
D160
5030
50
3.0
12
37.5
2×2×3
D260
6029
60
2.9
16
50
2×2×3


Tavol Advantages:

01- More than 20 years of production experience, More than 10 years of tower crane sales experience in the international market,product quality and after service is guaranteed.

02- Adopts ISO9001 international standards from product design to manufacturing process to ensure that product design information is complete, correct, and unified, and fully meets user requirements.

03- There is a gap in the core configuration,like The motor brand ,electrics brand , and key device etc.

04- There is a gap in the production process,

Tavol has more advanced processing technology and manufacturing equipment.

05- The gap in raw materials, All incoming raw materials are tested by carbon and sulfur analysis instruments.

06- All components undergo more rigorous testing before leaving the factory.

07- There is a gap between pre-sales, in-sale and after-sales service, Tavol is more professional.

08- The employee's working time in the company shows the stability of the company, Most of the employees have worked in the company for more than 10 years.

tavol tower crane brand


Factors affecting the price of tower cranes

Max loading capacity, Tip Load Capacity, Jib length, standard Mast Quantity, single or double rotation Mechanism, standard mast material, motor power, Need frequency conversion or not, etc.


Tower crane quotation needs to know the parameters, like

The Max Loading Capacity, Jib Length, Tip Load Capacity, Height of Lifting and the Height under the Jib.
