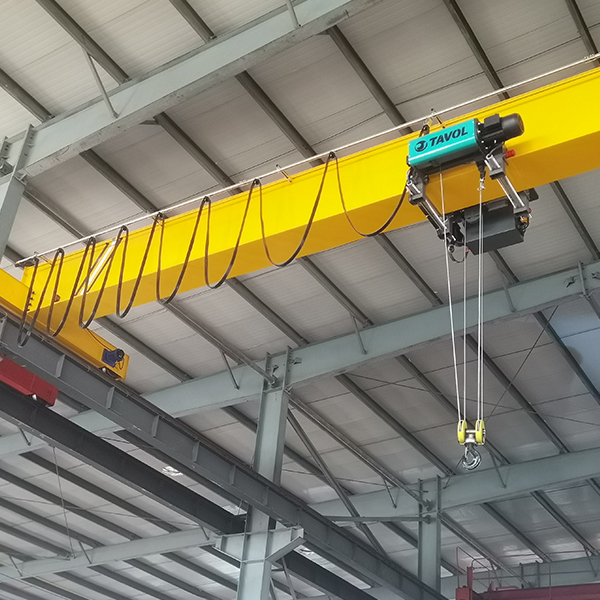

5Ton 10Ton 16Ton Overhead Crane Single Girder with Euro Design

Electric Overhead Crane Single Girder with LE Model Euro Design
overhead crane capacity: LE500kg - LE32 ton
overhead crane span: 6m - 31.5 m
overhead crane lift height:3m - 60m
Availability:
Quantity:
  • LDE Overhead Crane Single Girder with Euro Design
  • Tavol
  • 039

Product Description

5Ton 10Ton 16Ton Overhead Crane Single Girder with Euro Design

LE model single girder overhead crane consists of one girder beam supported on each side by an end truck. The electric hoist (electric wire rope hoist & electric chain hoist) are underhung—meaning they run on the bottom flange of the single girder.

Tavol Cranes Use Soft Start Silent Motor, or Or Optional Frequency Conversion Control, Meet the Working Requirements of Safety and Noise Reduction, and the Operation is More Stable.

No Fear of Chaotic and Noisy Workshop Conditions, Let you Fall in Love With the Factory Workshop and Enjoy the Comfort of Being in the Workshop.

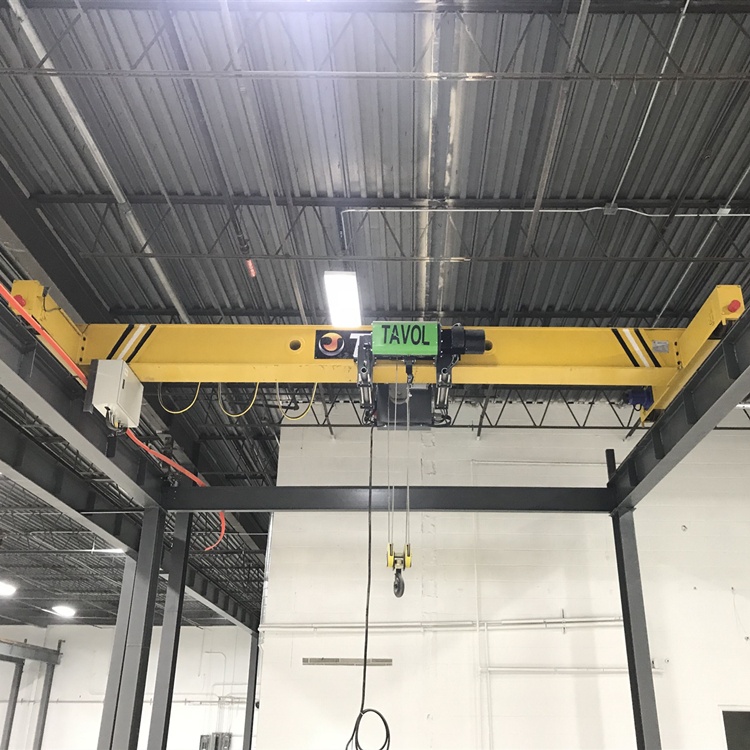

photobank (1)

01- Electric Overhead Crane Structure:



Electric overhead crane Box girder LE Model mainly composed of metal structure (main girder, end truck), electric hoist trolley (lifting mechanism), traveling mechanism and electrical equipment.



LE Model Electric Overhead Crane Advantages:

1- Light weight, Compact Structure, Low Energy Consumption etc.

2- Low Headroom, Small size, Small wheel Pressure.

3- Saving in initial construction costs, air conditioning and maintenance costs.



Euro overhead crane



02- Electric Overhead Crane Specification:

Type

Box Type Single Girder Crane Euro design

Single girder overhead crane capacity

500kg, 1 ton, 2 ton, 3 ton, 5 ton, 10 ton, 15 ton, 20 ton

Single girder overhead crane Span

6 - 31.5 meter

Single girder crane Lifting height

1- 60 meter

Power supply

380V 50Hz 3Phase or on request

Single girder bridge crane Work duty

A5/M5 ; A6/M6

Speed

Variable Speed (standard)

Electric devices

Crane traveling limit switch;

Weight overload protection device;

Lifting height limit device;

Voltage lower protection function;

Phase sequence protection function, etc.


03- Electric overhead crane Application:

LDE model single girder bridge crane mainly used for manufacturing and maintenance applications.

It is widely applicable to multiple fields such as: Pre Engineered Steel Building, Steel Plant, Steel Product Maker, Oil Industry, Plastic Plant, Cement Plant, Power Plant , Mine Industry, Food Industry, Chemical Industry, Cable Plant, Machine Tools, Car/Truck Industry, Transport Company, Construction Company, Electrical Company, Shipyard, Stone Yard, Installation and Maintenance etc.

Single girder overhead crane and electric hoist structures are manufactured by strictly following European-style technology standards and Chinese national standards.

end truck

04- Successful Projects

  1. Project in bangladesh

    241837389_4767724089905869_6093398989994473867_n

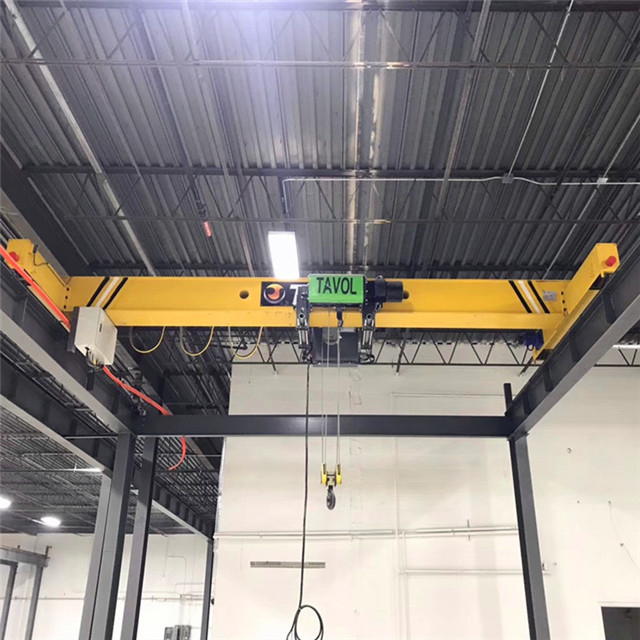

  2. Project in UAS

    Overhead Crane 01



05- About Tavol

Tavol is an overhead bridge cranes manufacturers, overhead crane installation, Overhead Crane Repair, Bridge crane maintenance, overhead crane operator training and overhead crane service company from China.

车间外部照片喷涂线

Following the china and international overhead crane design standard, focus on the overhead crane safety and bridge crane safety to the overhead crane operator, help you to solve your warehouse crane and factory crane troubles, try to reduce the overhead crane cost, mainly made overhead cranes, bridge cranes, gantry cranes, warehouse cranes, overhead jib cranes, overhead cranes and hoists, underhung bridge crane, workstation bridge crane, overhead crane kits etc.

The Popular model including 5 ton Crane, 10 ton crane, 5 ton gantry crane, 5 ton overhead crane, 5 ton bridge crane, 10 ton overhead crane, 10 ton gantry crane, 20 ton overhead crane, 2 ton overhead crane, 10 ton bridge crane, 2 ton bridge crane, 1 ton overhead crane, 20 ton gantry crane, 1 ton bridge crane, 20 ton bridge crane, 3 ton bridge crane, 15 ton overhead crane, 15 ton bridge crane, 25 ton overhead crane, 5t overhead crane, 10t gantry crane,10t overhead crane etc.

Except the Full sets Overhead Bridge Cranes, Tavol also overhead crane suppliers of the bridge crane components, overhead crane accessories and overhead crane attachments and parts, like overhead crane trolley, overhead cranes and hoists, overhead crane rail, overhead crane wheels, overhead crane pendant, overhead crane motor, overhead crane trolley system, overhead crane track, bridge crane wheels, overhead crane hook, overhead crane brake mechanism, overhead crane gearbox, overhead crane cable, overhead crane rollers, Overhead crane bumpers, overhead crane busbar, Overhead Cabin etc.

As a top overhead crane manufacturers, Tavol supply the overhead eot crane and overhead crane project all of the world market, from Asia to Middle east, Africa and American countries, like Indonesia, UK, Singpore, Canada,  India, Australia, Egypt etc.

06-Welcome contact with us with the following parameters:

1.Lift capacity?
2.Lift height?
3.The span?
4.Local power supply?
5.Crane travel length?

6.What materials will the crane lift?
