Construction Hoist

Construction Equipment Building Hoist
SC200/200 2ton Passenger and Material Construction Elevator is provided with reliable safety interlock devices, safety switch, breakage protection switch, upper and lower limits and limit switches etc. Progressive dropping safety device and safety protection hook are provided. The safety design and configuration fully comply with national standards.
free standing height:
mast size:
cage size:
rated load capacity:
Lfiting speed:
Quantity:
  • SC200/200 2ton Passenger and Material Construction Elevator Of Construction Lifter
  • TAVOL
  • 8428909090

Product Description

Construction Hoist


Product Description:


SC200/200 2ton Passenger and Material Construction Elevator is provided with reliable safety interlock devices, safety switch, breakage protection switch, upper and lower limits and limit switches etc. Progressive dropping safety device and safety protection hook are provided. The safety design and configuration fully comply with national standards.


Adopting advanced technology both at home and abroad, SC series construction elevator is novel in design, reasonable in structure, simple in operation, convenient in assembly and disassembly, safe and reliable in working.


The construction hoist incorporates famous brand electric components and main parts in transmission mechanism. The steel structure is made of high-quality steel materials and welded with CO2 gas shield welding.

Surface paint is made with imported raw materials in brilliant, long lasting colors.


SC200/200 Construction Elevator is mainly suitable for bridge, chimney, building and other high-rise building builders and cargo transportation, and can also be used in warehouses, wharfs and other places where vertical transportation needs to be used.

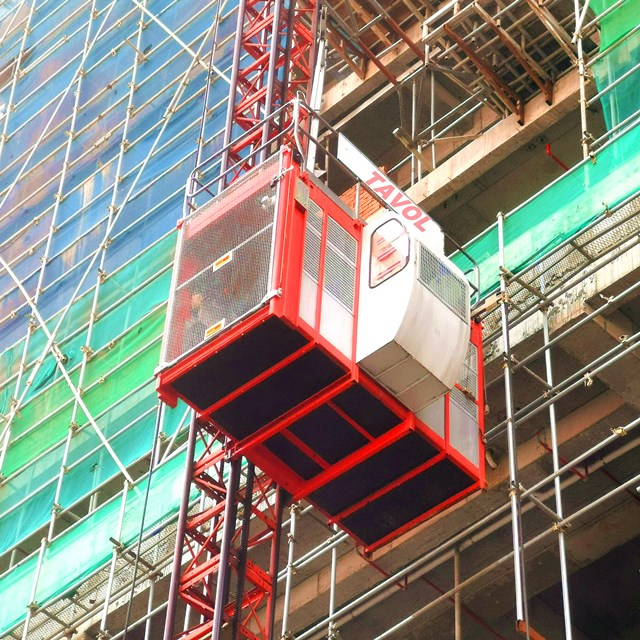

Tavol Construction Building Hoist


Some Questions You May Concern:


01- Main limb material is Q345B, frame is high strength 5mm steel plate, rack is No.60 steel.

02- The standard size of the 2 ton cage is 1.3*3*2.4, and it can also be customized according to customer requirements, but the size cannot be larger than the width and height of the container.

03- The Whole Machine Life Span is Eight years in China government stipulations.

04- The SC200 and SC100 standard mast sections can be interchanged.

when changing from a single cage to a double cage, you only need to purchase a cage and a set of drive motors.

Customers should confirm in advance when purchasing a single cage, otherwise all standard mast sections may be replaced.

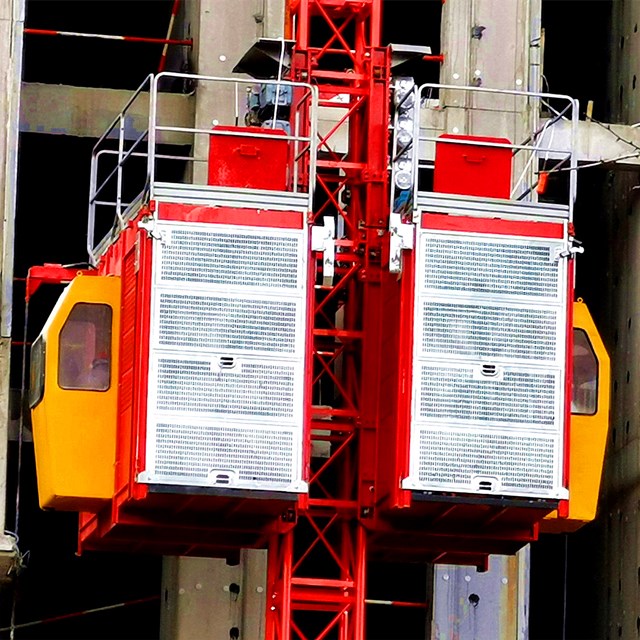

Construction Building Hoist


Technical Specification



Item

SC200/200

Basic parameters

Free standing height(m)

50

Max. Lifting height (m)

200

Rated load(Kg)

2×2000

Motor power(Kw)

(2×3)×11

Lifting speed(m/min)

33

Main cable

3×20mm2+2(National standard)

Standard section

Mast size(m)

650×650×1508

Main limb material(steel tube)

φ76×4.5/Q345B

Cage

Cage inner dimensions(m)

3×1.3×2.2



Frequency converter Advantages :


01- Simple installation, fault display in Chinese and English; convenient maintenance.

02- Small impact on motor and machinery, prolong service life.

03- Low current, energy saving and money saving.

04- Rise and fall smoothly, no sense of falling.

05- Can remote query, real-time understanding of equipment status.

06- Low failure rate and high work efficiency.

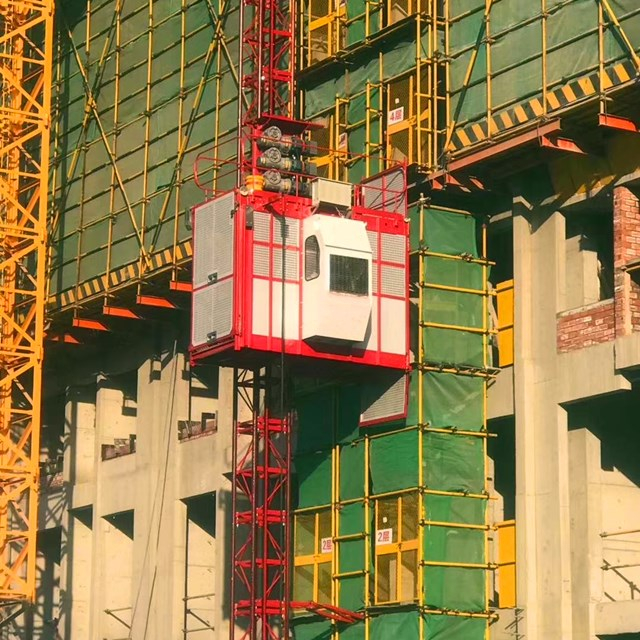

Tavol brand building hoist



The quotation needs to be confirmed:

If you want to inquiry about 2ton Construction Elevators, please inform us the details as below:

1)Lift height? (M)

2)Cage number: single or double?

3)Local voltage (V)

4)Other special requirement


Building hoist cage size


The standard size of the 2 ton cage is 1.3*3*2.4, and it can also be customized according to customer requirements, but the size cannot be larger than the width and height of the container.


Container Packing

Building hoist packing

Some Reference Project

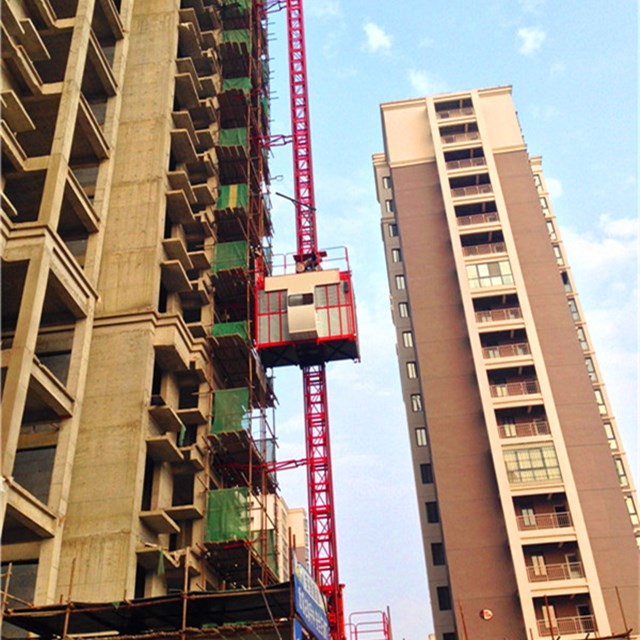

Tavol brand hoist

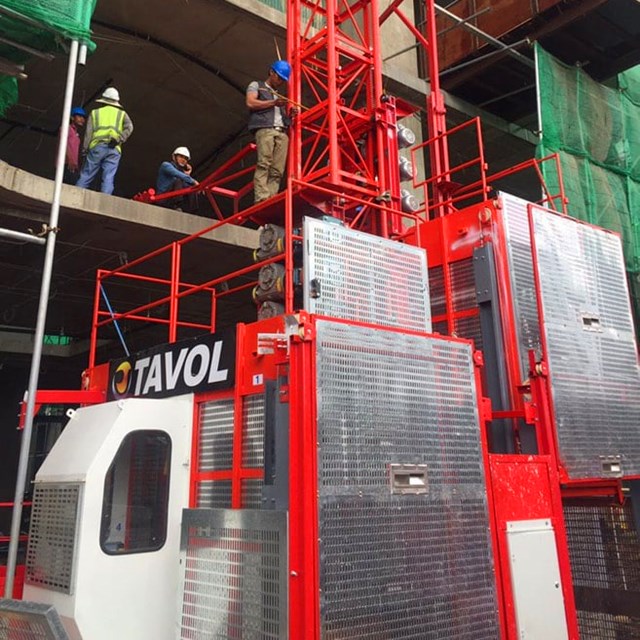

Tavol Building Hoist
