Product Description

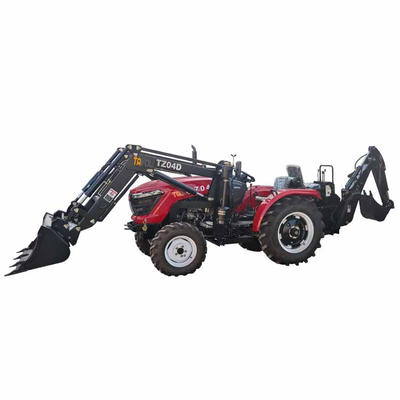

BACKHOE SERIES
MAIN SPECIFICATIONS
Backhoe Model | LW-6(HW-03) | LW-7(HW-05) | LW-8(HW-06) | LW-12(HW-12) | |
Matching Tractor | Kw(hp) | 14.7—22.1(20-30) | 22.1—36.8(30-50) | 36.8—58.8(50-80) | 88.2—102.9(120-140) |
Maximum Digging Depth | mm | 1700 | 2100 | 2600 | 3600 |
Maximum Unloading Height | mm | 1700 | 2300 | 2500 | 3200 |
Maximum Digging Height | mm | 2700 | 2300 | 3400 | 4500 |
Maximum Digging Depth Flat Bottom | mm | 1600 | 2000 | 2500 | 3500 |
Maximum Swing Angle | 180。 | 180。 | 180。 | 180。 | |
Bucket Rotation Angle | 160。 | 160。 | 160。 | 160。 | |
Bucket Capacity | M3 | 0.03 | 0.048 | 0.06 | 0.2 |
Weight | Kg | 450 | 500 | 540 | 1050 |
Note: in case the product specification parameters change, the actual product shall serve a a standard.
