Tavol Brand Underhang Running Electric Overhead Cranes with Euro Design Wire Rope Hoist

Tavol Brand Underslung Running Electric Overhead Cranes with Euro Deisn Wire Rope Hoist,
SWL0.5- 5 tons, Span 6- 30 mtrs, HOL: 3- 60m
Lift speed: 5/0.5m/min
Trolley Speed: 2/20m/min
Crane Speed: 20m/min
Ground Remote Control
Runway length: 39m
Power Source: 380V/50HZ/2P
Work Duty: M4 (FEM 1 Am)

Availability:

Quantity:



Inquire Add to Basket

Model:
Under Running Overhead Cranes LX Single Girder Universal Type
Brand:
Tavol
Code:
031

Product Description

Product Description

Tavol Brand Underslung Running Electric Overhead Cranes with Euro Deisn Wire Rope Hoist,

SWL 5 tons, Span 22 mtrs, HOL: 6m

Lift speed: 5/0.5m/min

Trolley Speed: 2/20m/min

Crane Speed: 20m/min

Ground Remote Control

Runway length: 39m

Power Source: 380V/50HZ/2P

Work Duty: M4 (FEM 1 Am)

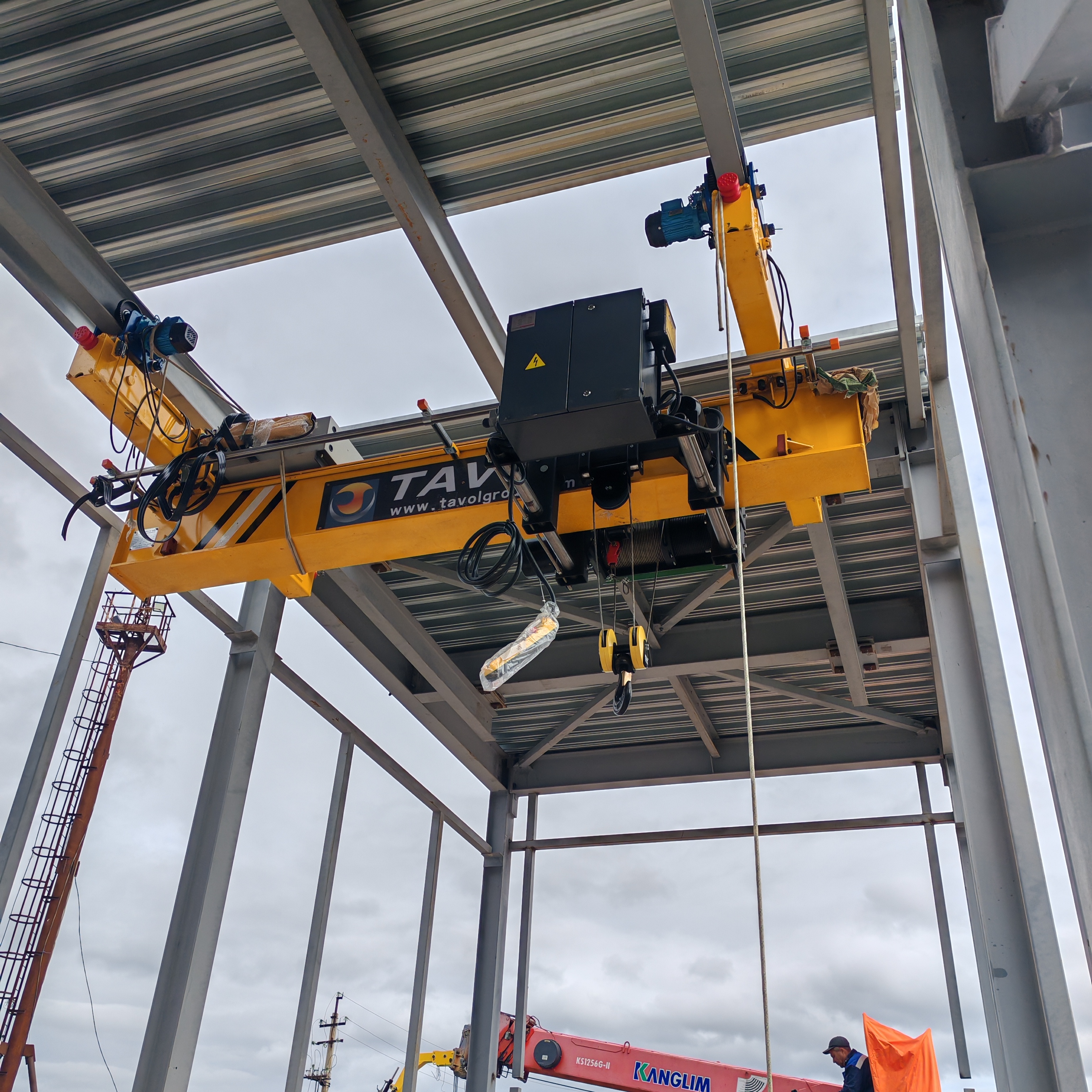

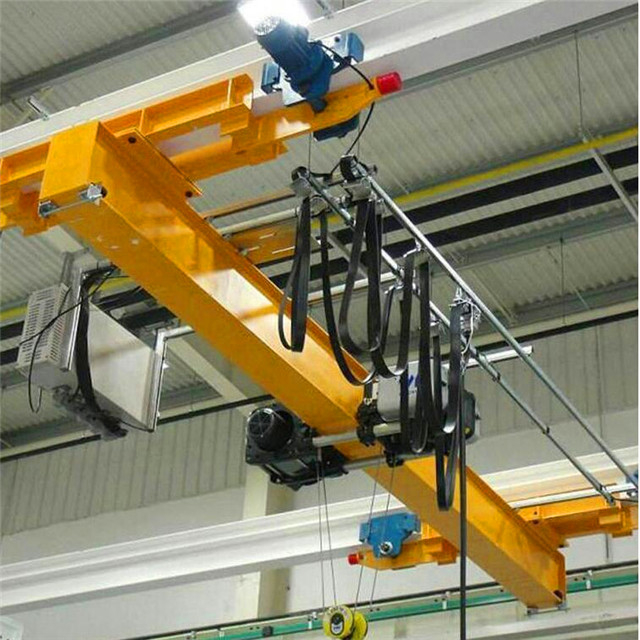

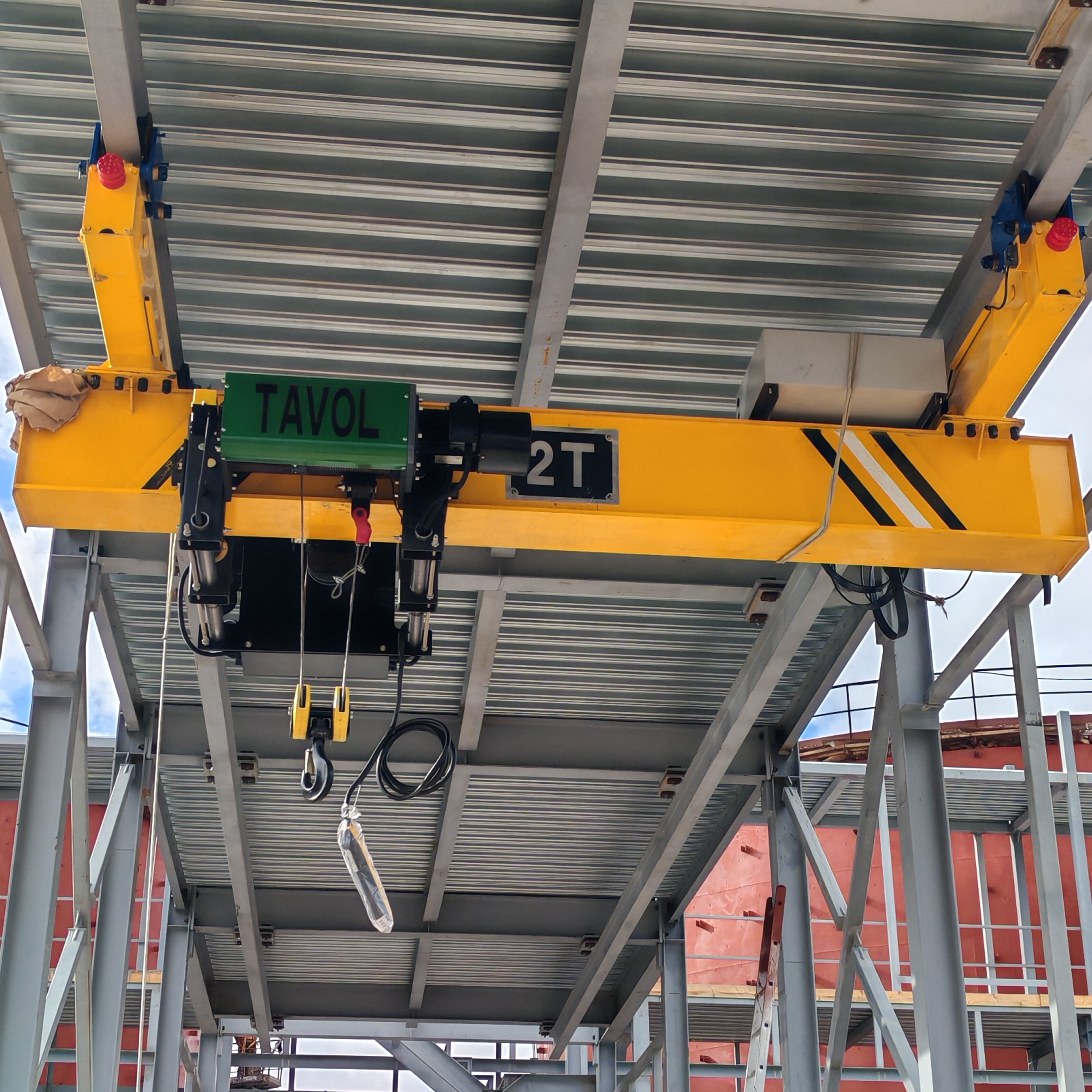

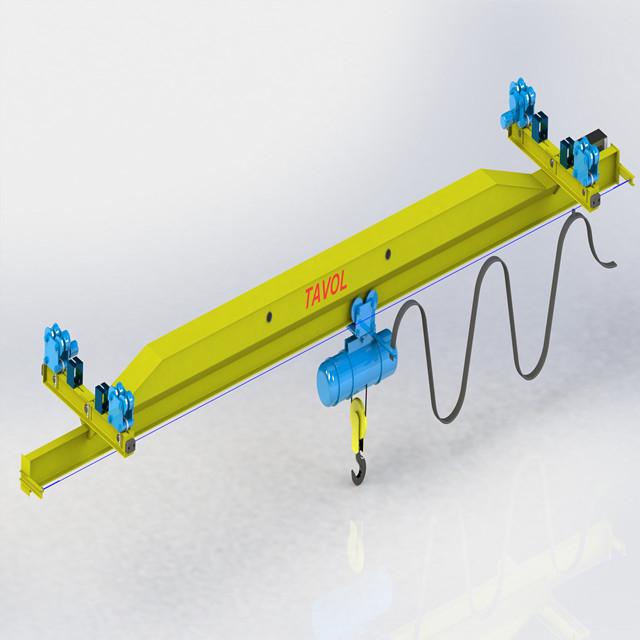

LX under hung single girder overhead crane is one kind of light duty crane, it runs under I steel rail .It is designed and made by reasonable structure and higher strength steel .

It uses together with CD1 model MD1 model electric hoist as a complete set, it is a light duty crane with a capacity 0.5 ton ~ 10ton. The span is 5-40m. Working duty is A3~A5, working temperature is -25-40℃.

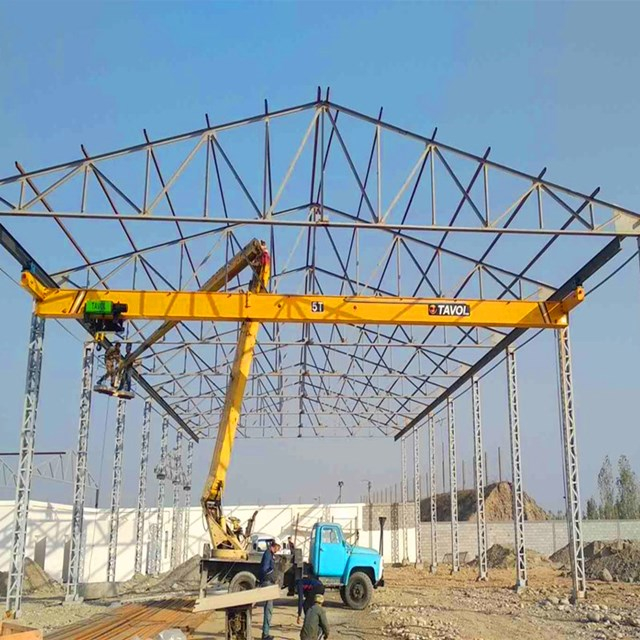

underslung eot crane

01- Under Running Overhead Cranes Structure:

LX under hung single girder overhead crane is one kind of light duty crane, it runs under H steel rail .It is designed and made by reasonable structure and higher strength steel .

It uses together with CD1 model MD1 model electric hoist as a complete set, it is a light duty crane with a capacity 0.5 ton ~ 10ton. The span is 5-40m. Working duty is M3- M5, working temperature is -25-40℃.

LX Under Running Single Girder Overhead Crane is widely used in plants warehouse,steel plant,steel yard, material stocks etc to lift goods.

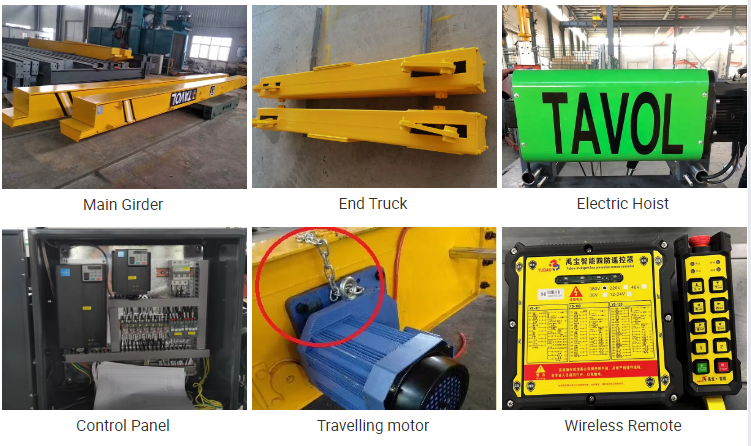

main girder of under slung crane end truck for underslung eot crane

According to main girder and hoist type, it separate with two type:

1- LX Under Running Overhead Crane Single Beam Universal Design

underslung crane

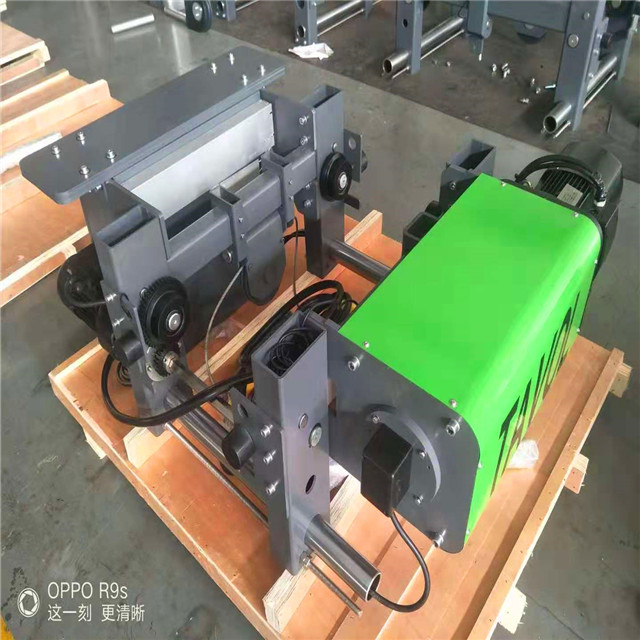

2- LXE Under Running Overhead Crane Single Beam European Design

underslung eot crane

Under Running Overhead Cranes Specification:

Lifting Capacity (ton)				0.5 ton, 1 ton, 2 ton, 3 ton, 5 ton, 10 ton
Span (meter)				3-16
Crane Travelling Mechanism		Travelling Speed (m/min)		20/30
		Motor	0.5- 3 ton	ZDY12-4; N = 2x0.4kw
			5- 10 ton	ZDY21-4; N= 2x0.8kw
Lifting Mechanism	Electric Hoist	Lifting Speed (m/min)		8; 0.8/8
		Lifting height (meter)		6 -30m
	Trolley Device	Trolley Traverse speed (m/min)		20/30
		Motor		Taper Brake Rotor Motor
Working Duty		M3/A3 ( 25% )
Power Supply		3 Phase; 380V/50HZ
Wheel Diameter		0.5 -3 ton		134 mm
		5 -10 ton		154 mm
Recommend Travel I beam		0.5 - 2 ton		20a- 45c
		3- 5 ton		32a - 45c
		10 ton		40b - 63c

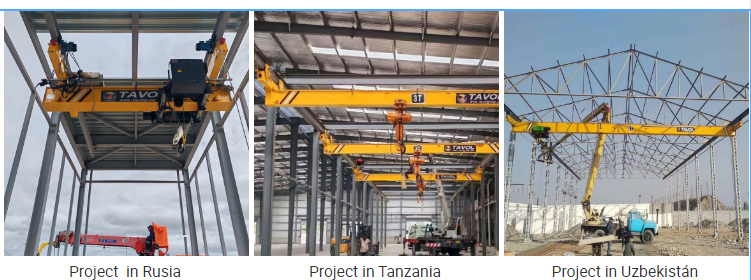

Under Running overhead crane Application:

LX model under Running single girder bridge crane mainly used for manufacturing and maintenance applications.

It is widely applicable to multiple fields such as: Pre Engineered Steel Building, Steel Plant, Steel Product Maker, Oil Industry, Plastic Plant, Cement Plant, Power Plant , Mine Industry, Food Industry, Chemical Industry, Cable Plant, Machine Tools, Car/Truck Industry, Transport Company, Construction Company, Electrical Company, Shipyard, Stone Yard, Installation and Maintenance etc.
