Tavol Brand MH Lifting Equipment Single Gantry Crane 10T 20T 25T with Cantilever Truss Type Is More Suitable for Outdoor

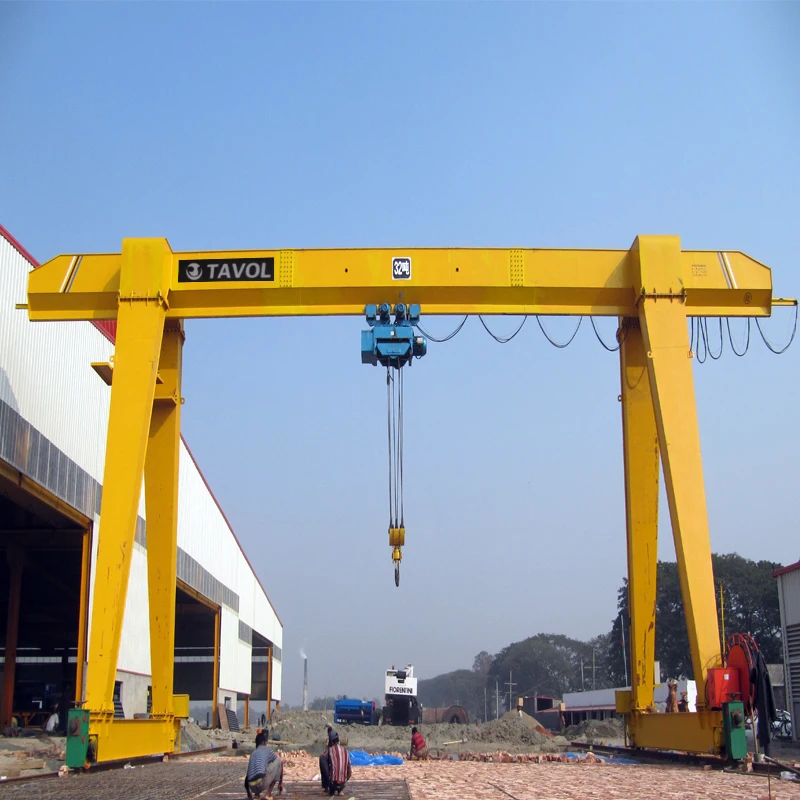

Tavol Brand MH Model Single Girder Gantry Crane with Mono Rail Wire Rope Hoist

MH model single girdergantry crane is similar to a bridge crane, but instead of moving on suspended runways,

the crane uses legs to support the bridge, and the electric hoist. The crane legs travel on fixed rails embedded in,

or laid on top of the floor.

01- Overhead gantry crane single girder MH Model Structure:

MH model gantry crane is a frame gantry crane and rail mounted gantry crane, similar to a overhead bridge crane,

but instead of moving on suspended runways, the crane uses legs to support the bridge, and the electric hoist.

The crane legs travel on fixed rails embedded in, or laid on top of the floor.

According to working environment, it separate with two type:

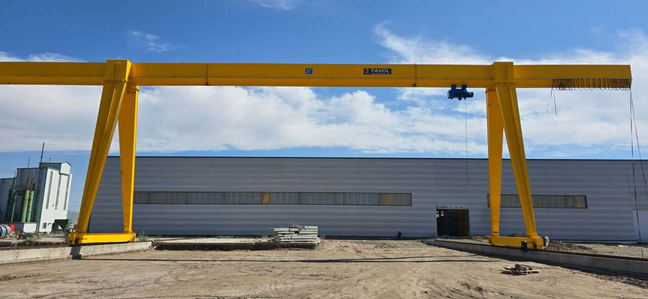

MH overhead gantry crane for outdoors uses.

Tavol Overhead Gantry Crane Product Advantages:

1. Cut Down your cost in building of plant and workshop;

2. Improve your production efficiency;

3. Be suitable for indoor warehouse and outdoor usage;

4. Reduce daily maintenance;

5. Safety with high performance.

02- Overhead gantry crane single girder MH Model Specification:

03- Overhead gantry crane single girder MH Model Application:

MH model single girder China gantry crane is typically used in an outdoor applications where full beams and

columns can’t be installed, or may be used below an existing bridge crane system.

Gantry cranes can most commonly be found in shipyards, railyards, special outdoor projects like the construction

of a bridge, or in places like steel mills where overhead room may be an issue.

It is widely applicable to multiple fields such as: Pre Engineered Steel Building, Steel Plant, Steel Product Maker,

Oil Industry, Plastic Plant, Cement Plant, Power Plant , Mine Industry, Food Industry, Chemical Industry, Cable Plant, Machine Tools, Car/Truck Industry, Transport Company, Construction Company, Electrical Company, Shipyard,

Stone Yard, Installation and Maintenance etc.

04- Overhead gantry crane single girder MH Model Package

1. Electric parts are packed by high quality plywood crate, to reduce distortion

in conveying;

2. Main beams, end beams are packed by plastic woven cloth, to reduce

abrasion when transport.

Whole set of overhead crane will be shipped by container or by bulk.

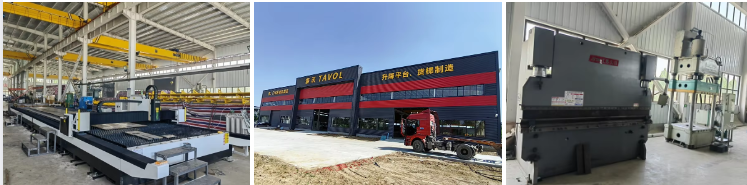

05- About Tavol

Tavol is an overhead and gantry cranes manufacturers, gantry crane installation, gantry Crane Repair, gantry crane maintenance, gantry crane operator training and gantry crane service company from China.

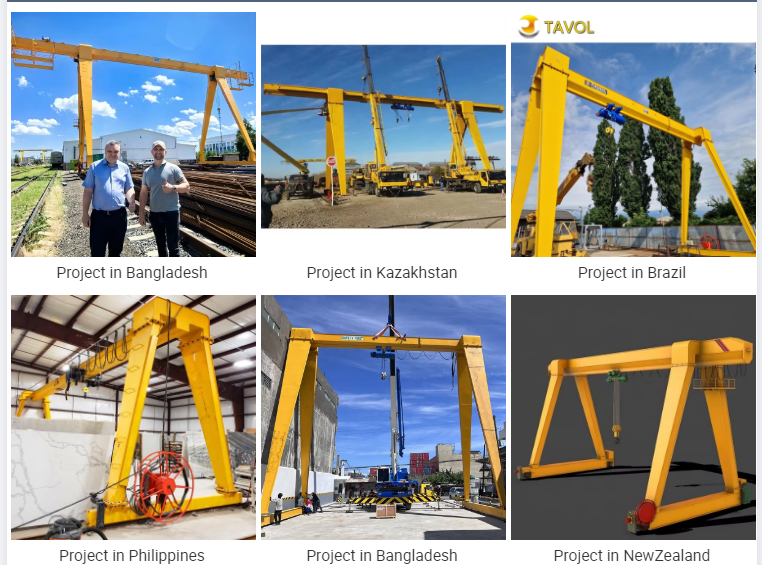

06-Successful projects

IF you have inquiry for double girder overhead crane, please let us know the following information as below:
1. Lift capacity?
2. Lift height?
3. Span?
4. Travel length?
5. Power supply in your local? Is 380V/50Hz/3P?
6. Crane Long Travelling distance ?

contact Ms.Cherry Liu wechat/mobile/whatsapp:+00 8619862318428
