Tavol Brand LH Unversal And Popular Model Double Girder Bridge Cranes for Sale

Tavol Brand LH Unversal And Popular Model Double Girder Bridge Cranes for Sale with SWL 3-32tons, Span 6-40m, HOL 4-60m, M4 Work Duty, Suitable in almost working environment, Popular sale Model, Welcome to choose.
Double Girder Bridge Overhead Crane Universal LH Model
Double girder overhead crane capacity:LH3 - LH32/5 ton
Overhead crane span: 6m - 31.5 m
Overhead crane lift height: 3m - 60m
Working Temperature: -25 to 40°C
Availability:
Quantity:
  • LH Middle duty universal model
  • Tavol
  • 039

Product Description

Tavol Brand LH Unversal And Popular Model Double Girder Bridge Cranes for Sale with SWL 3-32tons, Span 6-40m, HOL 4-60m, M4 Work Duty, Suitable in almost working environment, Popular sale Model, Welcome to choose.

There are two girder beams that make up the bridge, and they are supported by an end truck on each side. The electric hoist trolley run on a rail installed above the bridge girders.

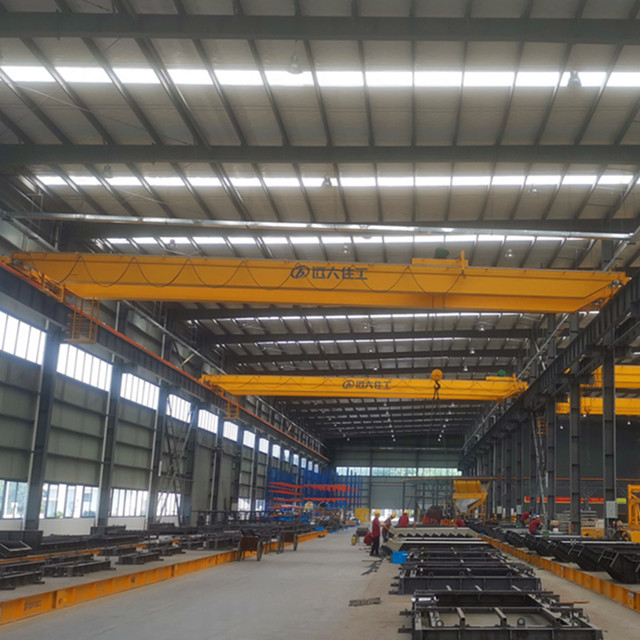

famous crane

01- Double Girder Bridge Overhead Crane Structure:

LH Model double girder overhead bridge crane is suitable for light and middle grade.It is composed of box type bridge frame, lifting trolley, crane traveling mechanism and electrical system. It employs fixed electric hoist, which is fitted on trolley frame as the hoisting mechanism.

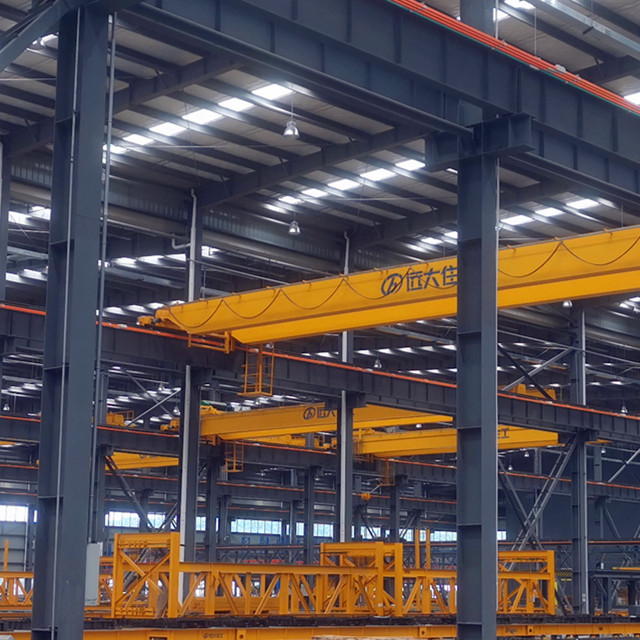

eot crane

LH Model Double Girder Crane also called double beam bridge crane, double girder overhead travelling crane, Overhead eot crane, Double girder bridge crane.

According to design and hoist type, it separate with two type:

1- LH Overhead Crane Double Girder Universal Design

2- LHE Overhead Crane Double girder with European Design


LHE Overhead Crane Double girder with European Design

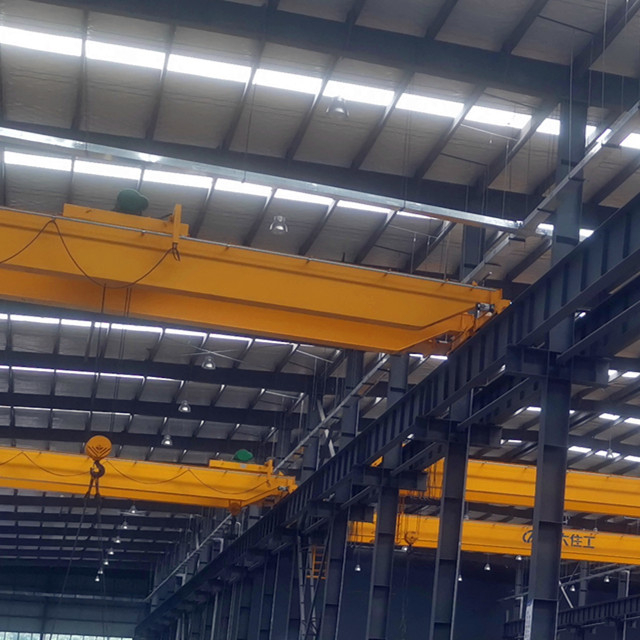

china crane

LH Overhead Crane Double Girder Universal Design

Double Girder Bridge Overhead Crane Product Features:

1. Cut Down your cost in building of plant and workshop;

2. Improve your production efficiency;

3. Be suitable for different operating conditions and provide you One-stop Solutions;

4. Reduce daily maintenance;

5. Safety with high performance.

02- Double Girder Bridge Overhead Crane Specification:

SI

Descriptions

Reference Data

1

Double girder overhead crane capacity

3 ton, 5 ton, 10 ton, 15 ton, 20 ton, 20/5 ton, 32 ton, 32/5 ton

2

Double girder overhead crane Span

6 - 31.5 meter

3

Double girder crane Lifting height

3- 60 meter

4

Double girder bridge crane Work duty

A4/M4; A5/M5

5

Overhead Crane Control method

Remote control & Pendant Control

6

Electrical parts

CHINT or Schneider

7

Overhead Crane Motors

Chinese Nanjing brand

8

Overhead Crane Bearings

Chinese famous brand "HRB"

9

Overhead Crane Hook

Forged hook with safety lock

10

Overhead Crane Hoist Lifting speed

0-8M/Min (8/0.8m/min)

11

Crane hoist Traverse speed

0-20M/Min

12

Double girder Bridge Crane Long travelling speed

0-20M/Min (30m/min)

13

Variable frequency drives

Optional

14

Maintenance platform

Included

03- Double girder Bridge overhead crane Application:

LH Model double girder crane is recommended for heavier-duty applications where the crane has to handle heavier capacities and longer spans.

It is widely applicable to multiple fields such as: Pre Engineered Steel Building, Steel Plant, Steel Product Maker, Oil Industry, Plastic Plant, Cement Plant, Power Plant , Mine Industry, Food Industry, Chemical Industry, Cable Plant, Machine Tools, Car/Truck Industry, Transport Company, Construction Company, Electrical Company, Shipyard, Stone Yard, Installation and Maintenance etc.

04- Double girder overhead crane Package:

1. Electric parts are packed by high quality plywood crate, to reduce distortion

in conveying;

2. Main beams, end beams are packed by plastic woven cloth, to reduce

abrasion when transport.

3. Whole set of overhead crane will be shipped by container or by bulk.

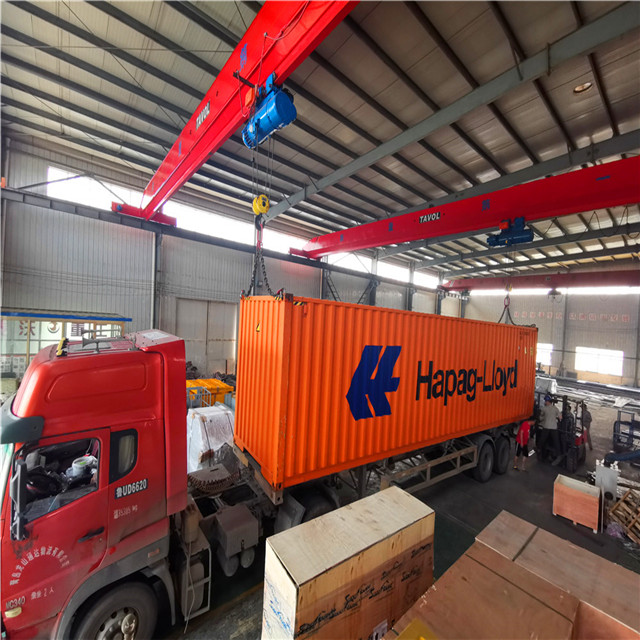

container loading in tavol factory
