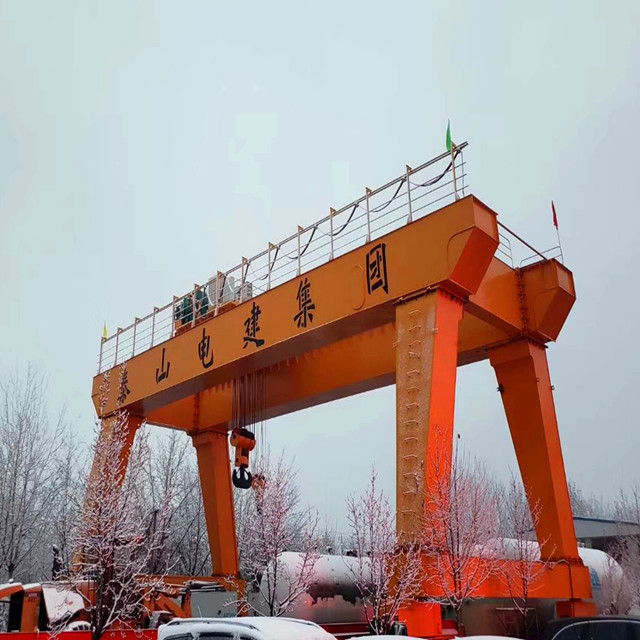

Tavol Brand Heavy Duty Double Girder Gantry Cranes with Open Winch SWL Upto 200 Tons Suitable in Busy And Heavy Working Conditions

Tavol Brand Heavy Duty Double Girder Gantry Cranes with Open Winch SWL Upto 200 Tons Suitable in Busy And Heavy Working Conditions, popular Model SWL 5ton, 10 ton, 15 ton, 20 ton, 25 ton, 32 ton, 32/5 ton, 50 ton, 50/10 ton, 100 ton, 100/20 ton, 125ton, 125/50ton, 150 ton, 200ton, 200/50 ton, Popular Span size 12m, 16m, 18m, 20m, 22m, 25m, 28m, 30m, 32m, 35m, Popuar HOL 6m, 9m, 12m, 15m.

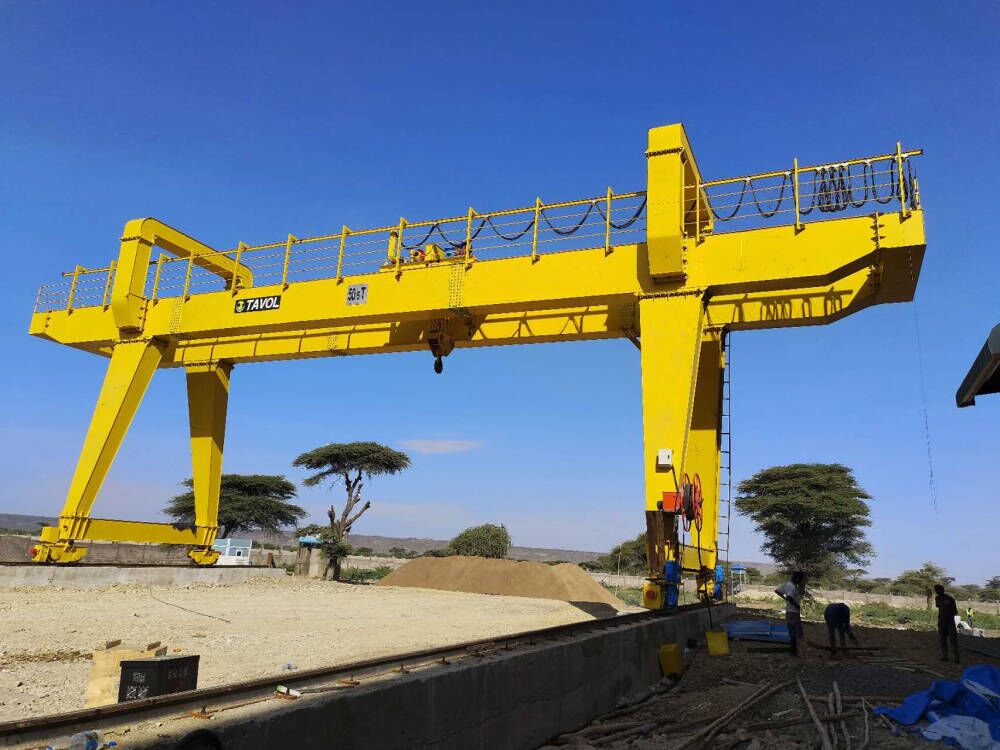

MG model double girder gantry crane is ideal for outdoor applications where lifting facilities are provided without the cost of a buliding or any supporting steel work.
It is also suitable for indoor applications where existing building structures are not possible to support overhead cranes. They can be constructed with a cantilever to allow handling outside the rail centers.
Availability:
Quantity:
  • MG Model Heavy Duty Double Girder Gantry Cranes
  • Tavol
  • 030

Product Description

Tavol Brand Heavy Duty Double Girder Gantry Cranes with Open Winch SWL Upto 200 Tons Suitable in Busy And Heavy Working Conditions

Popular Model SWL 5ton, 10 ton, 15 ton, 20 ton, 25 ton, 32 ton, 32/5 ton, 50 ton, 50/10 ton, 100 ton, 100/20 ton, 125ton, 125/50ton, 150 ton, 200ton, 200/50 ton, Popular Span size 12m, 16m, 18m, 20m, 22m, 25m, 28m, 30m, 32m, 35m, Popuar HOL 6m, 9m, 12m, 15m.



Product Introduction:

MG model double girder gantry crane is ideal for outdoor applications where lifting facilities are provided without the cost of a buliding or any supporting steel work.

It is also suitable for indoor applications where existing building structures are not possible to support overhead cranes. They can be constructed with a cantilever to allow handling outside the rail centers.

MG model double girder hoist gantry crane is mainly composed of main girders, winch trolley, ground girders, supporting legs, travel rails, cable spring, electrical parts, etc.

284101729_718157382667799_8153602294790051702_n

Product Advantages:

1. Cut Down your cost in building of plant and workshop;

2. Improve your production efficiency;

3. Be suitable for indoor warehouse and outdoor usage;

4. Reduce daily maintenance;

5. Safety with high performance.



Product Specification:

SI

Descriptions

Reference Data

1

Lift capacity

5-200/50T

2

Span

3-31.5M

3

Lifting height

6-12M

4

Work duty

A5-A7

5

Control method

Remote control or cabin control

6

Electrical parts

CHINT or Schneider

7

Lifting mechanism

Winch trolley

8

Bearings

Chinese famous brand "HRB"

9

Hook

Forged hook with safety lock

10

Lifting speed

0-10M/Min

11

Cross travelling speed

0-20M/Min

12

Long travelling speed

0-30M/Min

13

Variable frequency drives

Optional

14

Overhang part

Optional


Product Application:

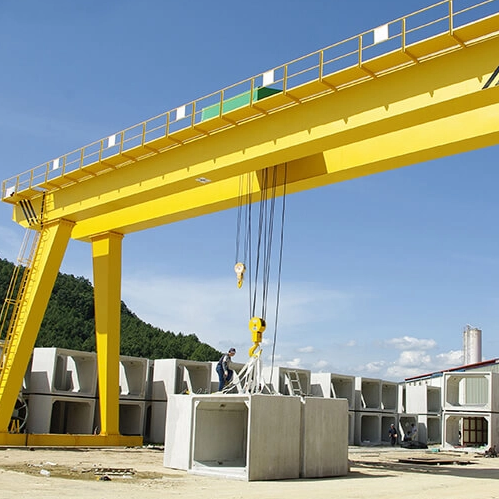

MHS model double girder mobile gantry crane can most commonly be found in steel industry, chemical industry, shipyards, railyards, special outdoor projects like the construction of a bridge, or in places like steel mills where overhead room may be an issue.

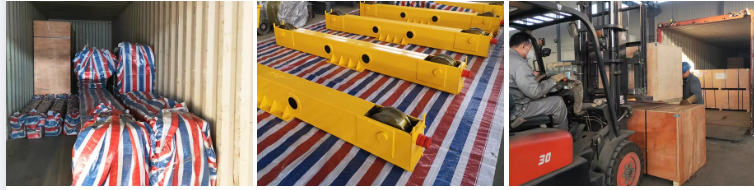

Product Package:

Normall beams will be packed by woven bag;

Electrical parts will be packed by plywood box;

Whole set of gantry crane will be shipped by container or by bulk.

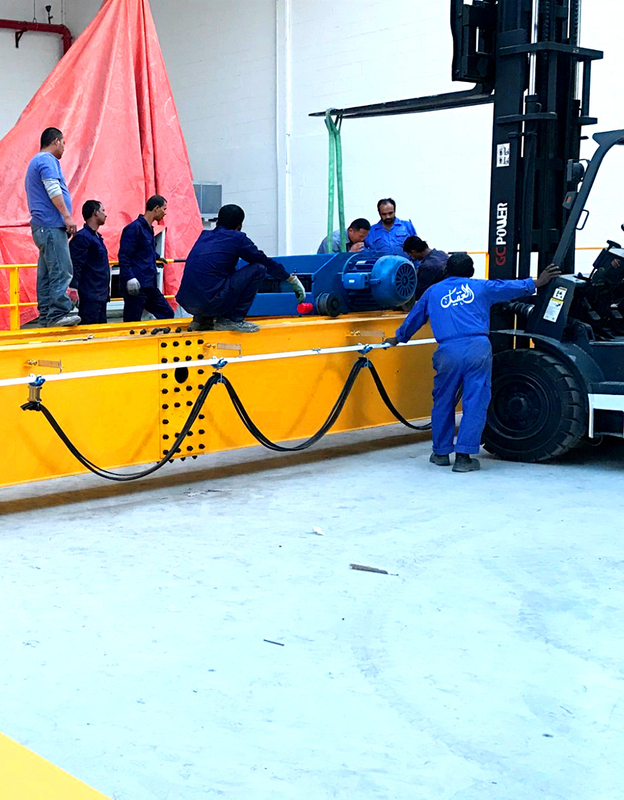

 284044072_718157112667826_2031654996157170444_n

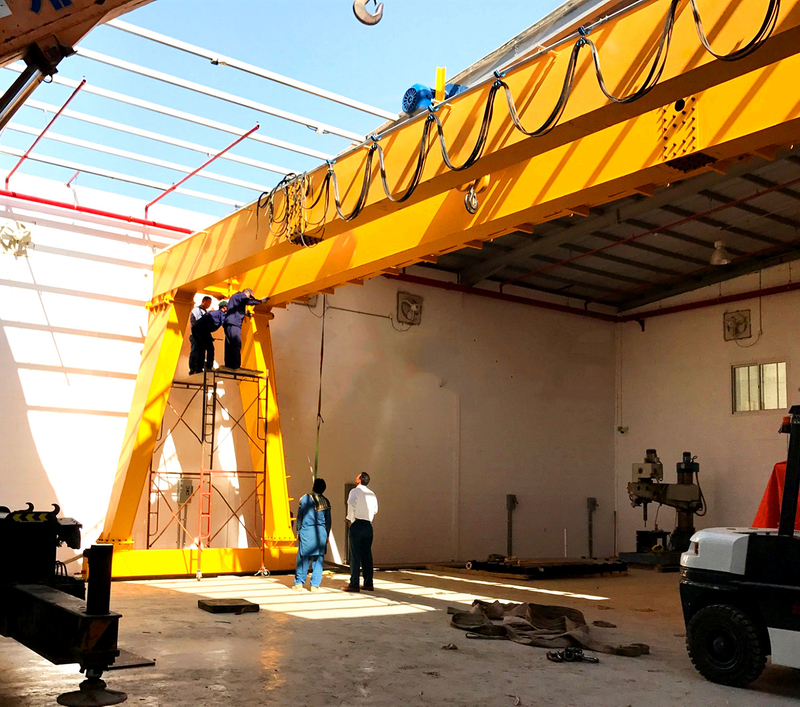

284047508_718157156001155_423294080318765521_n
