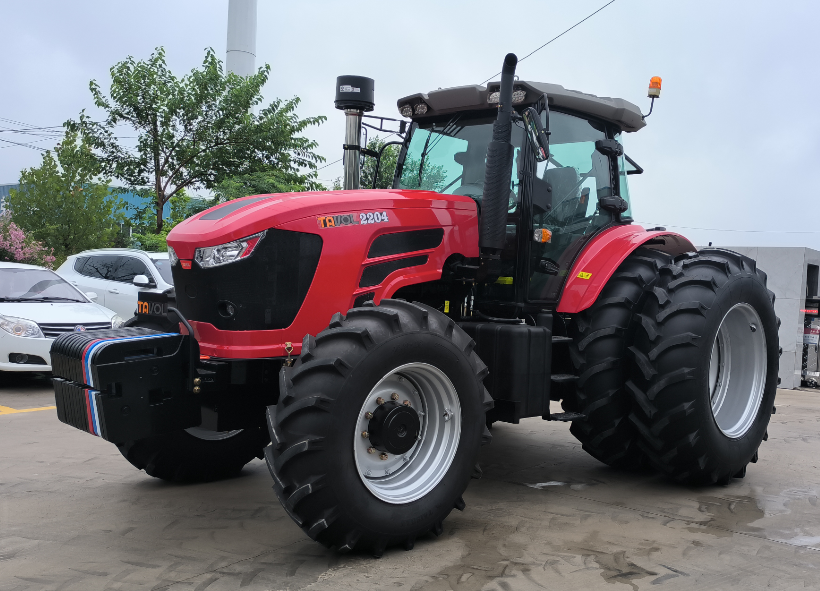

Tavol 240HP Tractor

Advantages of Tavol 4WD farm tractor:
1.High-quality steel fuselage, reasonable frame design, thick steel plate, strong and durable, reduce the vibration generated by the engine, and extend the life of the machine
2.Four-wheel drive, strong power, efficient work, easy to pass any field
3.The front axle with central oil cylinder, strong bearing capacity, hydraulic steering, flexible and light
4.Luxurious seats increase work comfort and reduce fatigue
5.The rear wheel can be adjusted steplessly to adapt to various tasks
6.Simple operation, automobile-style operation panel, flexible response, double-acting clutch, multi-function instrument
7.It is easy to replace the accessories, and it is common to all wheeled tractors and agricultural machinery according to the suspension.

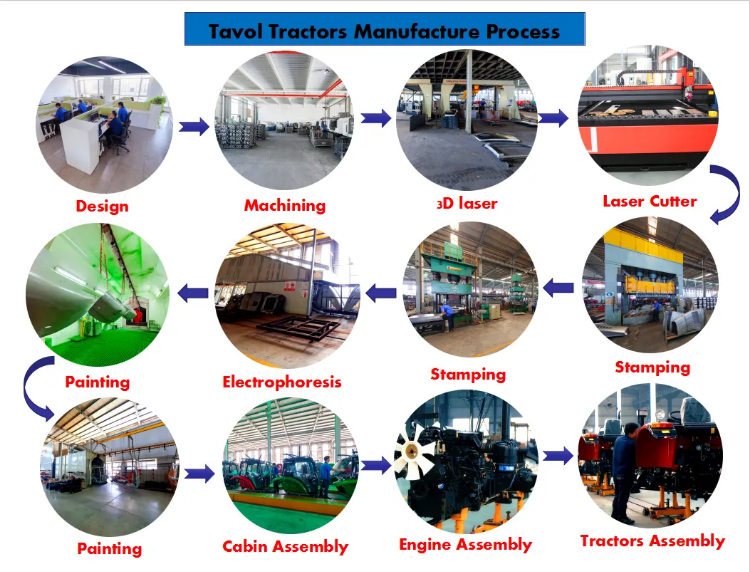

Assembly Process

Our Services

One-stop Agricultural Machinery Equipment Program Service:

1.Professional sales-staff will provide you with a one-stop solution for agricultural machinery&equipment services.

2.Provided Guarantee of repair replacement and refund of substandard products Together with tractors, so that you have no worries after purchase.

Perfect after-sales service & system.

Provide services for global agents. Relieve the worries of agents. Better develop overseas markets.

Main Parameters

Model 2404

Engine power 176.4 kW (240 hp)

Type 4x4

Gross weight (kg) 9200

PTO power (kN) 149.9

Dimensions (mm) 5200×2250×3050

Wheelbase (mm) 2680

Minimum ground clearance (mm) 495

Steering - hydraulic

Forward speed - 42 km / h.

Maximum pulling force 46 kN

Manual differential lock

USB radio

Fan

With counterweights front and rear

Rear wheels double

Air conditioner

Stove

Turning radius:

- Unilateral braking 5.2 ±0.3

- Non-unilateral braking 6.8±0.3

Drive unit:

- Double acting clutch

- Gearbox 16F+16R shuttle shift

Tire:

- front wheels 18.4 R26

- rear wheels 20.8-38

Braking system:

- Service brake Wet, disc, hydrostatic

- Parking brake Independent hand brake

Hydraulic outlet 3 groups

PTO speed rpm 540/1000

Engine type Diesel engine

6 cylinder engine

Environmental class - Euro 5

Starting method Electric

Main filling volume:

- Radiator 25

- Fuel tank 322.8

- Engine oil pan (l) 20

- Transmission oil (l) 60

- Hoist(L) 21
