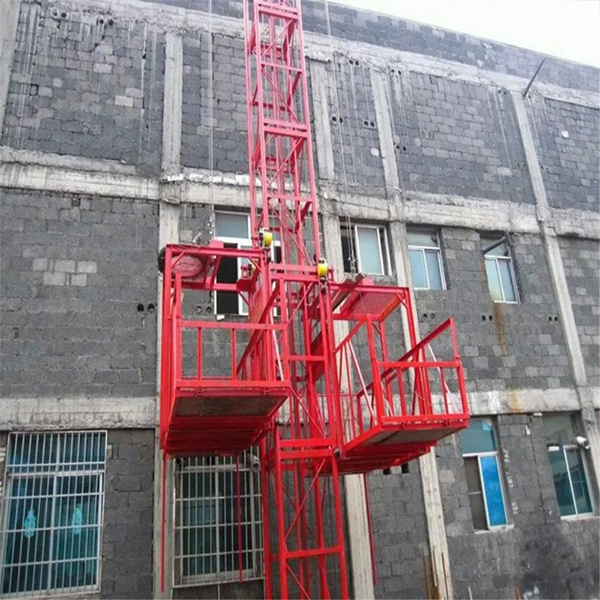

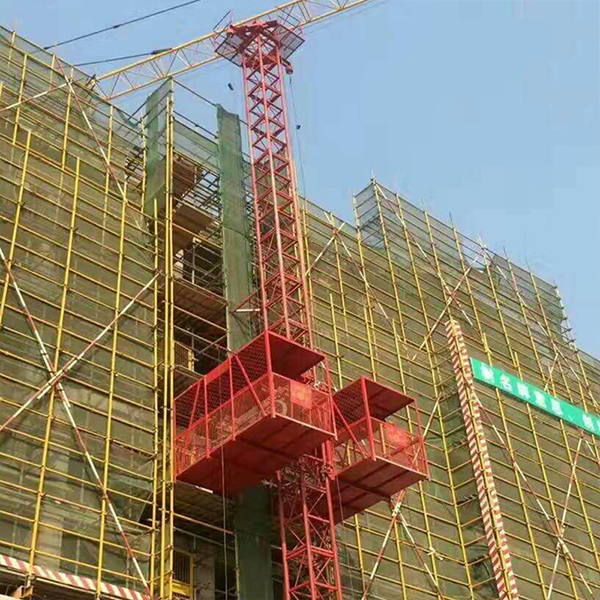

SS100/100 1ton Material Construction Hoist of Construction Elevator

SS100/100 Material Hoist is a vertical handling machine dedicated for materials widely applied in building construction, industrial and mining, multi-storey workshop, warehouse, station, wharf, etc. It is convenient, efficient, and secure.
standard height:
mast size:
cage size:
load capacity:
lifting motor:
Quantity:
  • SS100/100 1ton Material Construction Hoist of Construction Elevator
  • TAVOL
  • 8428909090

Product Description

1-Product Description:

>>>Introduction:

SS100/100 Material Hoist is a vertical handling machine dedicated for materials widely applied in building construction, industrial and mining, multi-storey workshop, warehouse, station, wharf, etc. It is convenient, efficient, and secure.
SS100/100 is set up with safety multiple protection measures like Floor-selecting and Leveling Device, Elevating Limiter, Rope Protection Device, Parking Safety Device, Bumper, Upper and Lower Height Restrictor, Anti Rope-breaking Equipment, among which, the brake performance and brake slide distance of the Rope Protector are above national standards. It is safe, reliable, and harmless to rail-track.

There are two accesses for Floor Selecting and Leveling:
1. Manual Control, which is direct control by the operator.
2.Computer Automatic Positioning System (Optional for order), which can easily realize floor-selecting and leveling without manual stop or point car leveling, reducing the difficulty of manipulation, convenient and precise.

SS100/100 adopts Wall-attaching Device instead of Wind Rope, along with self-erection and dismantling unit (Derrick), easy for handling and transportation.

SS100/100 has 2 types: Single-caged and Double-caged, optional for users. The standard sections of Double-caged are 4 pieces of ø76 * 4 seamless steel pipes, which can also be taken as guide rail, while those the Single-caged are 2 ø51 * 4 pipes.






2-Specification

Item

SS100/100

Basic parameters

Free standing height(m)

22

Max. Lifting height (m)

80

Rated load(Kg)

2×1000

Motor power(Kw)

2×7.5

Lifting speed(m/min)

24

Main cable

3×6mm2+2(National standard)

Standard section

Mast size(m)

650×650×1508

Main limb material(steel tube)

φ76×4/2 Q345B

Cage

Cage inner dimensions(m)

3×1.5×2





4-Factory Details:

(图需处理一致大小,请调整)

图片2     图片3

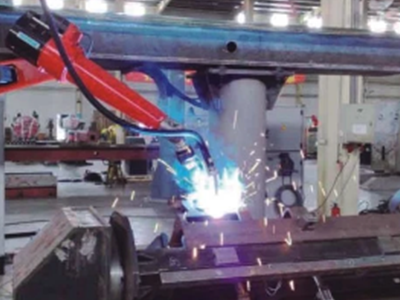

Spraying Process                                                                           Advanced Production Equipments

Improve Product corrosion resistance, improve the durability of products.         Ensure the precision of the product, shorten the production span, increase productivity





图片4     图片5

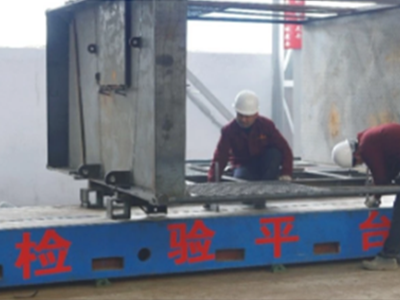

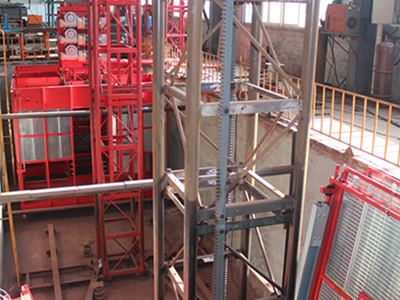

Horizontal Inspection Platform                                                                          Machine Test

Ensure the horizontal performance of the product, and make sure that the product works steadily.  Ensure that every machine meet the industry standard for construction elevators

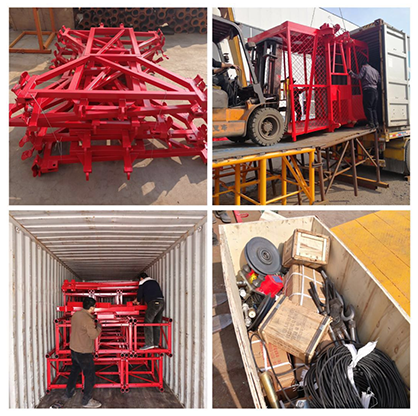

5-Delivery, shipping and serving

Packaging Details: Naked and disassembled by 40HC containers, with seaworthy packing.

Delivery Detail: within 20 working days after advance payment

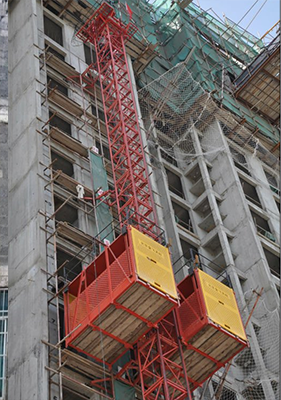

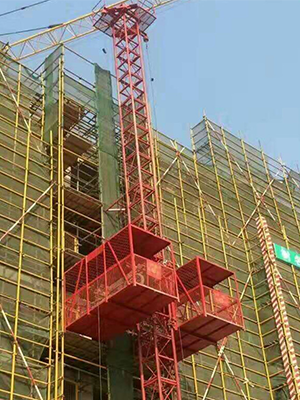

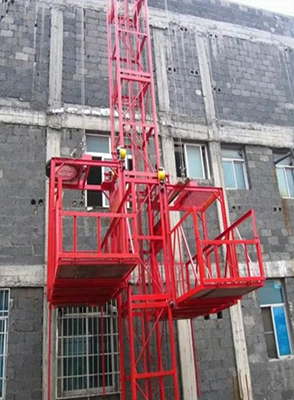

6. Case Show

图片7  图片8



6. FAQ:

If you want to inquiry about our construction material elevator, please inform us the details as below:

1)Lift height? (M)

2)Cage number: single or double?

3)Local voltage (V)

4)Other special requirement
