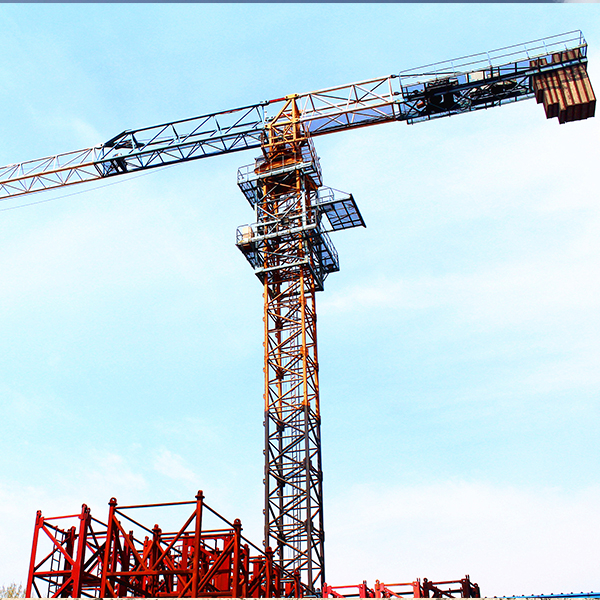

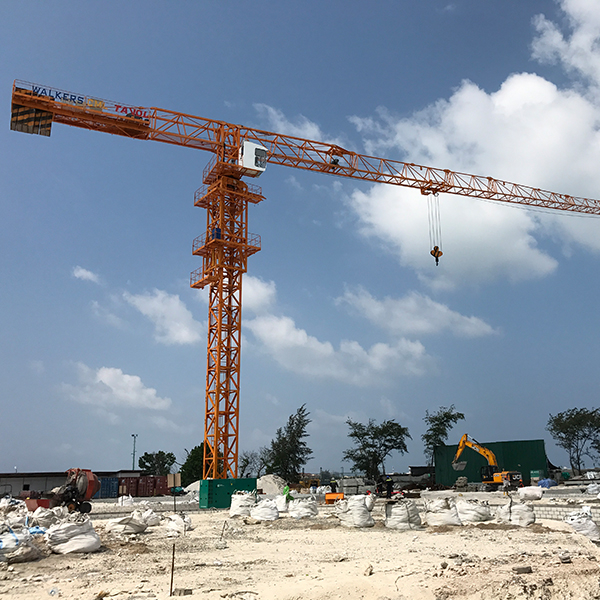

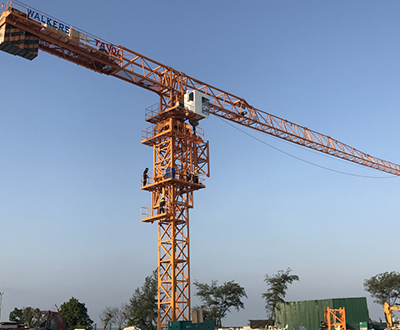

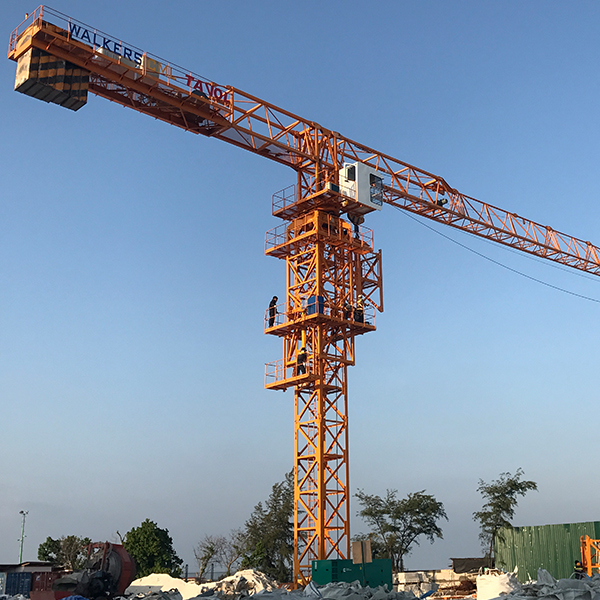

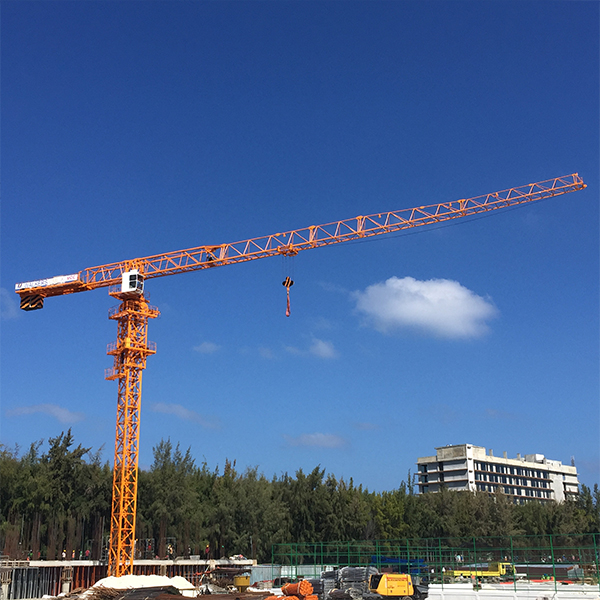

QTZ50(PT5010) Topless Tower Crane of Building Construction

The PT5010 topless tower crane 4ton features stable operation and reliable management due to the adoption of various advanced technologies.
PT5010 4tons topless tower crane is configured with diverse devices like the hydraulic self-erecting device, frequency converting slewing device and a series of reliable safety devices like hoisting height limiter, slewing range limiter and multifunctional limiter.
max .load :
jib length:
free standing height:
max anchorage height:
mast size:
Quantity:
  • QTZ50(PT5010) Topless Tower Crane of Building Construction
  • TAVOL
  • 84262000

Product Description

1-Product Description:

The PT5010 topless tower crane 4ton features stable operation and reliable management due to the adoption of various advanced technologies.

PT5010 4tons topless tower crane is configured with diverse devices like the hydraulic self-erecting device, frequency converting slewing device and a series of reliable safety devices like hoisting height limiter, slewing range limiter and multifunctional limiter.

PT5010 4tons topless tower crane is thus easy for this heavy lifting equipment to control the hoisting capacity, load moment and trolley traveling range more precisely. Additionally, multiple electric safety devices such as anemoscopes and obstacle lights effectively prevent the breaking of trolley axles and wire ropes.


2-Specification

Series

QTZ50

Standard Model

5010

Max. Lift Load

4t

Tip Load

1.0t

Free Standing Height

30m

Max. Anchorage Height

120m

Jib Length

50m

Mast size

1.6×1.6×2.5m



Lift Mechanism

Lifting Speed

(a=2)50/25/12.5 m/min

(a=4)25/12.5/6.2m/min

Lift motor

4/15/15kw

Trolley Mechanism

Trolley speed

39/26 m/min

Trolley Motor

2.2/1.5kw

Slewing Mechanism

Slewing speed

0.72r/min

Slew Motor

3.7kw

Jacking Mechanism

Jack climbing speed

0.4m/min

Jack climbing motor

4kw

Voltage

380V/50Hz/3P

Luxury Operate Cabin, Schneider Electric Parts



4-Product  Process




5-Delivery, shipping and serving

Packaging: High quality seaworthy package, usually by 40HC container.

 Delivery time: 25 working days after advance payment


6. FAQ:

 If you are interested in our 4Ton Topless Tower Crane, please no hesitate to contact us with following parameters:

1. Max load capacity?

2. Tip load?

3. Jib length?

4. Hoist lifting height?
