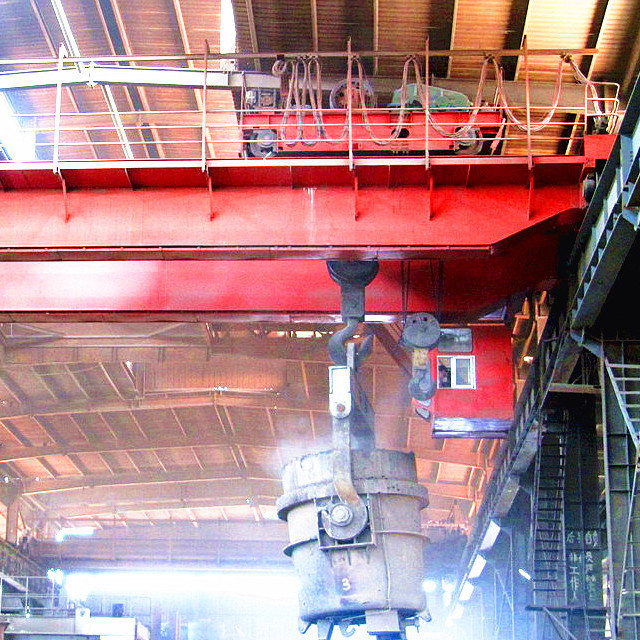

Process Cranes for The Steel Factory with Lifting Ladle with Popular Model 50t, 70t, 100t, 200t

Process Cranes for The Steel Factory with Lifting Ladle with Popular Model 50t, 70t, 100t, 200t ,
Suitable in steel factory, power plant, port, cement factory, steel building etc working environment.
Double girder Bridge crane capacity:QD50 ton - QD200/50 ton
Bridge crane span: 6m - 31.5 m
Bridge crane lift height: 3m - 60m
Working Temperature: -25 to 40°C
Quantity:
  • QD Overhead Cranes Double Girder with Heavy Duty Working Environment
  • Tavol
  • 039

Product Description

Process Cranes for The Steel Factory with Lifting Ladle with Popular Model 50t, 70t, 100t, 200t,

Suitable in steel factory, power plant, port, cement factory, steel building etc working environment,

Super Heavy work duty M6-M7.


There are two girder beams that make up the bridge, and they are supported by an end truck on each side. The electric winch trolley run on a rail installed above the bridge girders. For heavy duty work frequency, QD model double girder overhead eot crane can be design of work duty as A5, A6, A7 and A8. Equiped with diffierent lift tools can easily meet different lift requirements.


mmexport1582772052176




01- Double Girder Bridge Crane Heavy Duty QDY Model Structure:



Double girder Bridge crane heavy duty QD Model also called double girder bridge cranes, eot cranes or QD type bridge crane. The cranes winch travels along the bridge between parallel runways. It is composed of main beam, end carriage, hoist or winch, electric power transmission device and operation room.

For heavy duty work frequency, QD model double girder overhead eot crane can be design of work duty as A5, A6, A7 and A8. Equiped with diffierent lift tools can easily meet different lift requirements.

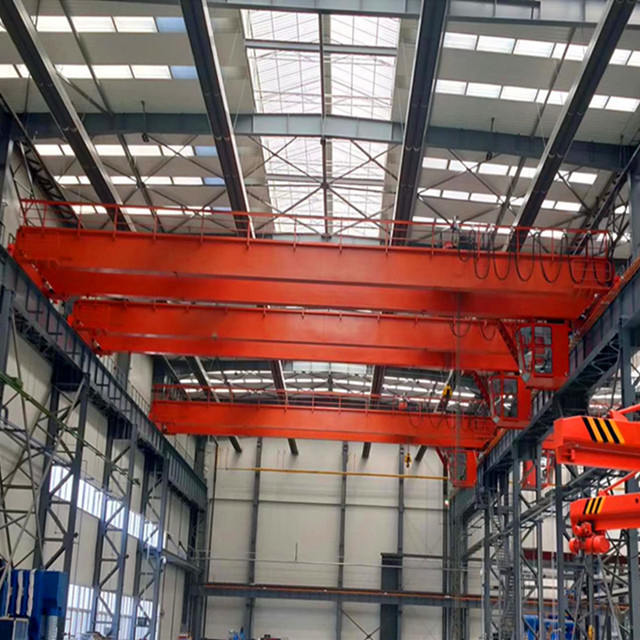

mmexport1582772064507



Product Features:

1. High working effiency;

2. Smooth movement &comfortable operation;

3. Convenient maintenance & aesthetic painting;

4. Light dead weight, light wheel load and safety.



02- Double Girder Bridge Crane Heavy Duty QD Model Specification:





SI

Descriptions

Reference Data

1

Double girder overhead crane capacity

50 ton, 50/10 ton, 60 ton, 80 ton, 100 ton, 150 ton, 200/50 ton,

2

Double girder overhead crane Span

6 - 31.5 meter

3

Double girder crane Lifting height

4- 60 meter

4

Double girder bridge crane Work duty

A6/M6; A7/M7

5

Overhead Crane Control method

Remote control or cabin control

6

Electrical parts

CHINT or Schneider

7

Overhead Crane Motors

Chinese famous brand

8

Overhead Crane Bearings

Chinese famous brand "HRB"

9

Overhead Crane Hook

Forged hook with safety lock

10

Overhead Crane Hoist Lifting speed

0-10M/Min

11

Overhead Crane Winch Traverse speed

0- 40M/Min

12

Double girder Bridge Crane Long travelling speed

0- 80M/Min

13

Variable frequency drives

Optional

14

Maintenance platform

Included





03- Double girder Bridge crane heavy duty QD Model Application:



QD model double girder overhead crane is recommended for heavy duty applications where the crane has to handle heavy capacities and longer spans.



QD model double girder bridge crane is applicable to the transfer, assembly, check and repair as well as load and unload at mechanic processing workshop, subsidiary workshop of metallurgical mills, warehouse, goods yard and power station.



It is widely applicable to multiple fields such as: Pre Engineered Steel Building, Steel Plant, Steel Product Maker, Oil Industry, Plastic Plant, Cement Plant, Power Plant , Mine Industry, Food Industry, Chemical Industry, Cable Plant, Machine Tools, Car/Truck Industry, Transport Company, Construction Company, Electrical Company, Shipyard, Stone Yard, Installation and Maintenance etc.


04- Double girder Bridge crane heavy duty QD Model Package:



1. Electric parts are packed by high quality plywood crate, to reduce distortion

in conveying;

2. Main beams, end beams are packed by plastic woven cloth, to reduce

abrasion when transport.

3. Whole set of overhead crane will be shipped by container or by bulk.
