Outdoor Gantry Crane Process Cranes for The Prefabricated Industry

Tavol Brand 20 Tons Universal Single Beam Gantry Crane with Wire Rope Hoist
Overhead gantry crane single girder MH Model for indoors or outdoors factory and workshop
gantry crane capacity: MH1- 20ton
gantry crane span: 3- 40 m
gantry lift height:3- 20m
Run way length: 10- 200m
Quantity:
  • MH universal overhead gantry crane
  • Tavol
  • 029

Product Description

Tavol Brand MH Model Single Girder Gantry Crane with Mono Rail Wire Rope Hoist


Prefabricated components refer to various components manufactured by pre-forming methods.

The pre-molded components are usually completed in professional factories and then transported to the site for use. This concept is mainly used in the field of construction. According to the material properties, it can be divided into steel structure prefabricated components, wooden structure prefabricated components, concrete prefabricated components, and stone prefabricated components.

Among them, the concept of prefabricated concrete components is the most widely used. In the construction field, prefabricated components are usually equivalent to reinforced concrete precast components or precast concrete (PC).

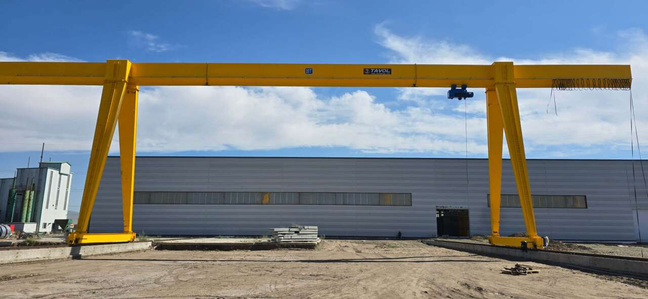

yard gantry crane




01- Overhead gantry crane single girder MH Model Structure:



MH model gantry crane is a frame gantry crane and rail mounted gantry crane, similar to a overhead bridge crane,

but instead of moving on suspended runways, the crane uses legs to support the bridge, and the electric hoist.

The crane legs travel on fixed rails embedded in, or laid on top of the floor.



Tavol Overhead Gantry Crane Product Advantages:

1. Cut Down your cost in building of plant and workshop;

2. Improve your production efficiency;

3. Be suitable for indoor warehouse and outdoor usage;

4. Reduce daily maintenance;

5. Safety with high performance.



02- Overhead gantry crane single girder MH Model Specification:



SI

Descriptions

Reference Data

1

Single girder gantry crane capacity

1 ton, 2 ton, 3 ton, 5 ton, 10 ton, 15 ton, 20 ton, 32 ton

2

Single girder gantry crane Span

3-31.5M

3

Single girder crane Lifting height

6-12M

4

Single girder gantry crane Work duty

A3/A4 - A5/M5

5

Overhead Gantry Crane Control method

Remote control or Pendant control

6

Electrical parts

CHINT or Schneider

7

Gantry Crane Motors

Chinese Nanjing brand

8

Gantry Crane Bearings

Chinese famous brand "HRB"

9

Gantry Crane Hook

Forged hook with safety lock

10

Gantry Crane Hoist Lifting speed

0-8M/Min (8/0.8m/min)

11

Crane hoist Traverse speed

0-20M/Min

12

Overhead gantry Crane Long travelling speed

0-20M/Min (20/30m/min)

13

Variable frequency drives

Optional

14

Overhang part

Optional



03- Overhead gantry crane single girder MH Model Application:



MH model single girder China gantry crane is typically used in an outdoor applications where full beams and

columns can’t be installed, or may be used below an existing bridge crane system.



Gantry cranes can most commonly be found in shipyards, railyards, special outdoor projects like the construction

of a bridge, or in places like steel mills where overhead room may be an issue.



It is widely applicable to multiple fields such as: Pre Engineered Steel Building, Steel Plant, Steel Product Maker,

Oil Industry, Plastic Plant, Cement Plant, Power Plant , Mine Industry, Food Industry, Chemical Industry, Cable Plant, Machine Tools, Car/Truck Industry, Transport Company, Construction Company, Electrical Company, Shipyard,

Stone Yard, Installation and Maintenance etc.

prefabricated gantry crane

04- Overhead gantry crane single girder MH Model Package



1. Electric parts are packed by high quality plywood crate, to reduce distortion

in conveying;

2. Main beams, end beams are packed by plastic woven cloth, to reduce

abrasion when transport.

Whole set of overhead crane will be shipped by container or by bulk.
