You are here: Home » Products » Materials Handling Machinery » Forklift » Optional Japanese Isuzu C240 Engine 2ton 3ton 3.5ton 5ton Diesel Forklift With Spare Parts

PRODUCTS CATEGORY

Share to:

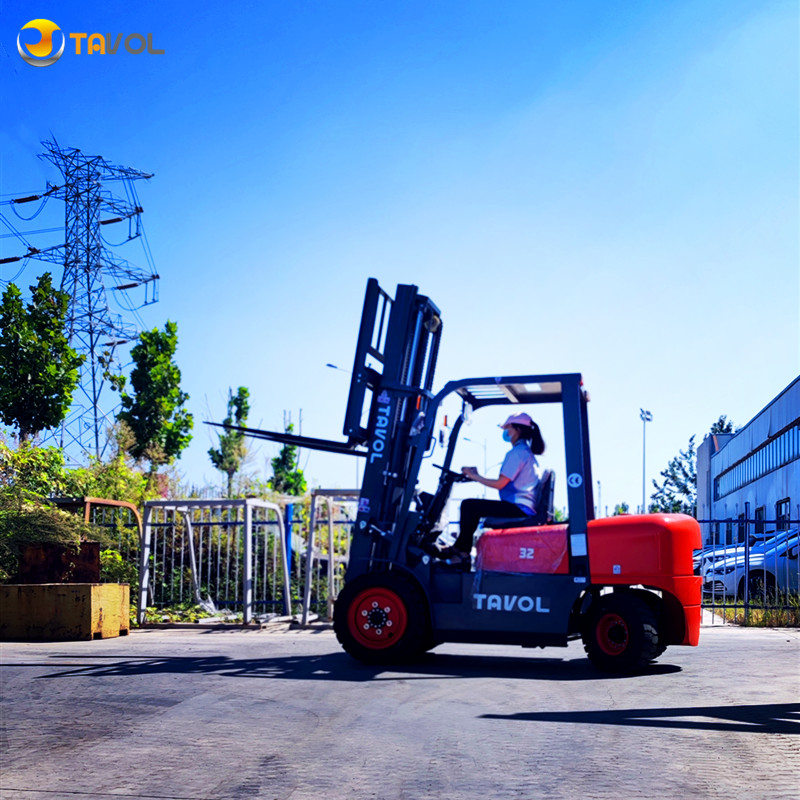

Optional Japanese Isuzu C240 Engine 2ton 3ton 3.5ton 5ton Diesel Forklift With Spare Parts

Tavol diesel forklift has more than 20 years production and export experience, loading capacity from 1ton to 7 ton,lifting height from 3 meters to 6 meters,the mast can be two stages ,three stages and container mast.Our standard engine is Chinese Xinchai brand,Japanese Isuzu brand,Mitsubishi brand and Yanmar brand can also can be chosen.We can do hydraulic transmission and mechanical transmission to meet your needs.
Our diesel forklift with fast delivery time(5-7 working days),accept OEM and ODM service.For more details ,welcome to contact with us.
max .load :
Lift height:
Load Capacity:
Color:
Availability:
Quantity:
  • CPC/CPCD
  • TAVOL
  • 84272090

Product Description

PRODUCT INFORMATION

Optional Japanese Isuzu C240 Engine 2ton 3ton 3.5ton 5ton Diesel Forklift With Spare Partsphotobank (3)

Tavol forklift adopts the streamline design that makes the appearance more pleasing,using domestic well-known engine brand which is powerful, dependable, easy to service ,and with low emissions and fuel consumption.Our forklift can reduce your cost,provide greater productivity and profitability for you.

PRODUCT CONFIGURATION


Anti-Fatigue Seat.
New suspension adjustable seat,More comfortable when working
Hydraulic Steering
Make the steering smoother and quicker to ensure the safety of the driver
Compound Chain
Strong pull and easy lifting,thincking to prevent safety accidents
Famous Brand Engine                       powerful, dependable, easy to service ,and with low emissions and fuel consumption
Safe Overhead Guard
Protect the driver
Wear-resistant tire
Adapt different roads and working environment.
LED Light

Save electricity, longer service life.

Electric Switch

Convenient to turn the lights on and off

Instrument Board

See driving data clearly

PRODUCT SPECIFICATIONS


Model
CPC20/CPCD20
CPC25/CPCD25
CPC32/CPCD32
CPC36/CPCD36
Rated Loading Capacity(kg)
2000
2500
3200
3600
Load Center Distance(mm)
500
500
500
500
Drive Form
Diesel
Diesel
Diesel
Diesel
Max Lifting Speed            (Full load)(mm/h)
400
400
475
450
Max Driving Speed            (Empty/Full load)(km/h)
17/19
17/19
18/20
18/20
Fork Lifting Height(mm)
3000
3000
3000
3000
Mast Tilt Angle                (Forward and Backward)
6°/12°
6°/12°
6°/12°
6°/12°
Min. Turning Radius(mm)
2450
2450
2530
2540
Min. Ground Clearance(mm)
110
110
135
135
 Length (Including Fork)(mm)
3605
3605
3970
4000
Width(mm)
1160
1160
1230
1230
Height(Door Frame Indented)
2095
2095
2110
2110
Max working Height(mm)(Door Frame Out Completely)
4080
4080
4270
4270
Height From Ground to Overhead Guard(mm)
2095
2095
2105
2105
Front Overhang(mm)
451
451
465
465
Wheel Base(mm)
1640
1640
1775
1775
Front Wheel Track(mm)
970
970
1000
1000
Rear Wheel Track(mm)
970
970
970
970
Front Wheel Tyre
7.00-12
7.00-12
28*9-15
25*9-15
Rear  Wheel Tyre
6.00-9
6.00-9
6.50-10
6.50-10
Self Weight(kg)
3320
3600
4250/4290
4660/4700
Fork Width(mm)
122
122
122
122
Fork Thickness(mm)
40
40
45
45
Block Shelf Height
1000
1000
1225
1225
Standard Fork Length(mm)
1070
1070
1220
1220
Engine Rated Power(kw)
36.8
36.8
36.8
36.8
Engine Speed At Rated Power (rmp)
2500
2500
2500
2500
Engine Maximum Torque(Nm)
157
157
156
156
Engine Speed At Maximum Torque(rpm)
1800
1800
1700~1900
1700~1900
Variable speed form
 Mechanical / Hydraulic
 Mechanical / Hydraulic
 Mechanical/ Hydraulic
Mechanical/ Hydraulic

PACKING&SHIPPING

One set is packed in plywood case,delivered by LCL.
Two sets and more forklifts are packed in one container,all wheels fixed with
wooden corner block, tightened with frap rope,et

COMPANY PROFILE


What can we do for you?
1. We are manufacture,also group company,which has more than 20 years export experience.
2.All machines sold must be tested 3-5 times before shipment,100% quality assurance.
3. 7*24 hours technical support by email,telephone or video online.
4. We provide free wearing parts, instructional videos, and provide pre-sale, in-sale and after-sale service support for life.
5.24 months warranty time.


FAQ

1.Q:What your term of payment?

A:We accept TT, Letter of credit, Online bank payment, Support Alibaba trade insurance etc.

2.Q:How about your delivery time?

A: Lead time 5-10 days for in stock, If need customized, it will take about 20 working days.

3.Q:What is the MOQ?

A: 1 set is okay. More quantity wit nice discount.

4.Q:How long is your product warranty?

A:The product warranty period is 24 months.

5.Q:What should we do if there have quality problems?

A:During warranty period we will provide free spare parts for free.
