New Forklift 2ton 2.5ton 3ton 3.5ton 4ton 5ton Diesel Forklift Truck

Tavol diesel forklift has more than 20 years production and export experience, loading capacity from 1ton to 7 ton,lifting height from 3 meters to 6 meters,the mast can be two stages ,three stages and container mast.Our standard engine is Chinese Xinchai brand,Japanese Isuzu brand,Mitsubishi brand and Yanmar brand can also can be chosen.We can do hydraulic transmission and mechanical transmission to meet your needs.
Our diesel forklift with fast delivery time(5-7 working days),accept OEM and ODM service.For more details ,welcome to contact with us.

max .load :	7ton
Lift height:	3m-6m
Load Capacity:	1ton-7ton
Color:	Orange or customized
Availability:

Quantity:



Inquire Add to Basket

Model:
CPC/CPCD
Brand:
TAVOL
Code:
84272090

Product Description

Product Description

PRODUCT INFORMATION

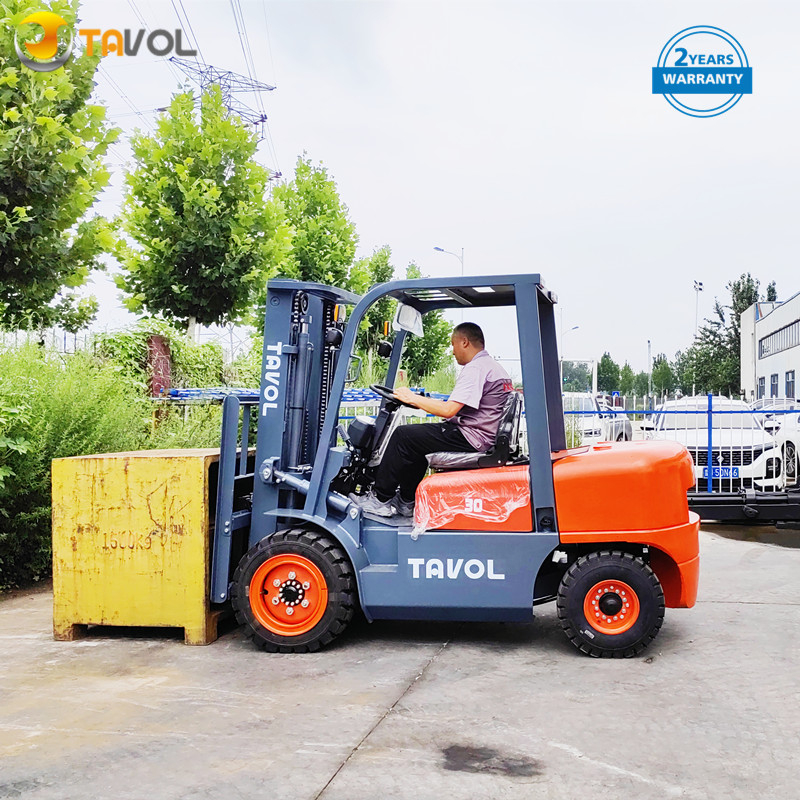

New Forklift 2ton 2.5ton 3ton 3.5ton 4ton 5ton Diesel Forklift Truck photobank (3)

Tavol forklift adopts the streamline design that makes the appearance more pleasing,using domestic well-known engine brand which is powerful, dependable, easy to service ,and with low emissions and fuel consumption.Our forklift can reduce your cost,provide greater productivity and profitability for you.

PRODUCT CONFIGURATION


Anti-Fatigue Seat. New suspension adjustable seat,More comfortable when working	Hydraulic Steering Make the steering smoother and quicker to ensure the safety of the driver	Compound Chain Strong pull and easy lifting,thincking to prevent safety accidents

Famous Brand Engine powerful, dependable, easy to service ,and with low emissions and fuel consumption	Safe Overhead Guard Protect the driver	Wear-resistant tire Adapt different roads and working environment.

LED Light Save electricity, longer service life.	Electric Switch Convenient to turn the lights on and off	Instrument Board See driving data clearly

PRODUCT SPECIFICATIONS

Model	CPC20/CPCD20	CPC25/CPCD25	CPC32/CPCD32	CPC36/CPCD36
Rated Loading Capacity(kg)	2000	2500	3200	3600
Load Center Distance(mm)	500	500	500	500
Drive Form	Diesel	Diesel	Diesel	Diesel
Max Lifting Speed (Full load)(mm/h)	400	400	475	450
Max Driving Speed (Empty/Full load)(km/h)	17/19	17/19	18/20	18/20
Fork Lifting Height(mm)	3000	3000	3000	3000
Mast Tilt Angle (Forward and Backward)	6°/12°	6°/12°	6°/12°	6°/12°
Min. Turning Radius(mm)	2450	2450	2530	2540
Min. Ground Clearance(mm)	110	110	135	135
Length (Including Fork)(mm)	3605	3605	3970	4000
Width(mm)	1160	1160	1230	1230
Height(Door Frame Indented)	2095	2095	2110	2110
Max working Height(mm)(Door Frame Out Completely）	4080	4080	4270	4270
Height From Ground to Overhead Guard(mm)	2095	2095	2105	2105
Front Overhang(mm)	451	451	465	465
Wheel Base(mm)	1640	1640	1775	1775
Front Wheel Track(mm)	970	970	1000	1000
Rear Wheel Track(mm)	970	970	970	970
Front Wheel Tyre	7.00-12	7.00-12	28*9-15	25*9-15
Rear Wheel Tyre	6.00-9	6.00-9	6.50-10	6.50-10
Self Weight(kg)	3320	3600	4250/4290	4660/4700
Fork Width(mm)	122	122	122	122
Fork Thickness(mm)	40	40	45	45
Block Shelf Height	1000	1000	1225	1225
Standard Fork Length(mm)	1070	1070	1220	1220
Engine Rated Power(kw)	36.8	36.8	36.8	36.8
Engine Speed At Rated Power (rmp)	2500	2500	2500	2500
Engine Maximum Torque(Nm)	157	157	156	156
Engine Speed At Maximum Torque(rpm)	1800	1800	1700～1900	1700～1900
Variable speed form	Mechanical / Hydraulic	Mechanical / Hydraulic	Mechanical/ Hydraulic	Mechanical/ Hydraulic

PACKING&SHIPPING

One set is packed in plywood case,delivered by LCL.

 Two sets and more forklifts are packed in one container,all wheels fixed with
wooden corner block, tightened with frap rope,et

COMPANY PROFILE

What can we do for you?

We are manufacture,also group company,which has more than 20 years export experience.
All machines sold must be tested 3-5 times before shipment,100% quality assurance.
7*24 hours technical support by email,telephone or video online.
We provide free wearing parts, instructional videos, and provide pre-sale, in-sale and after-sale service support for life.
24 months warranty time.
