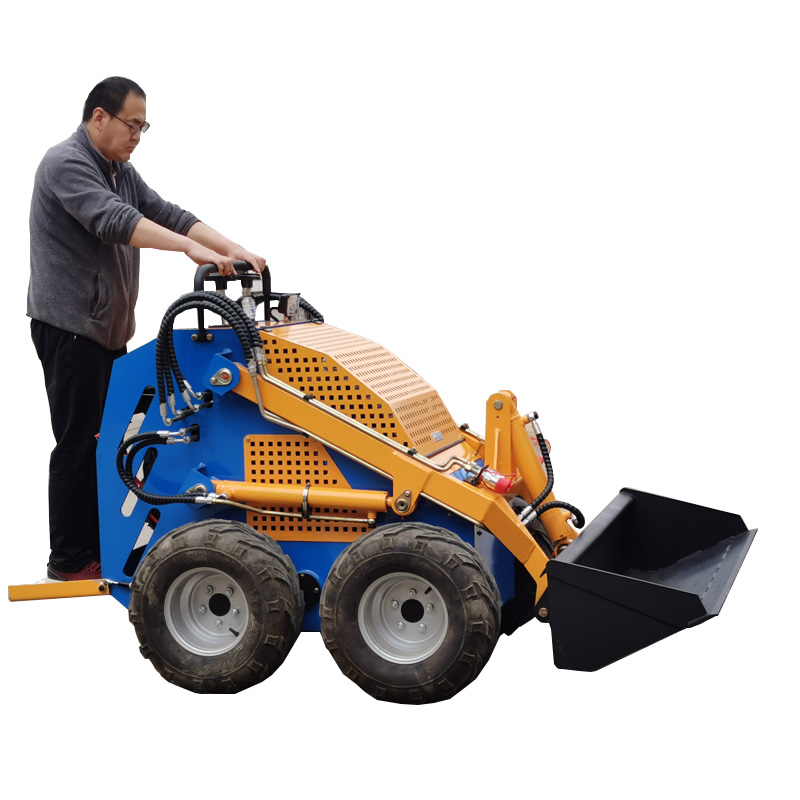

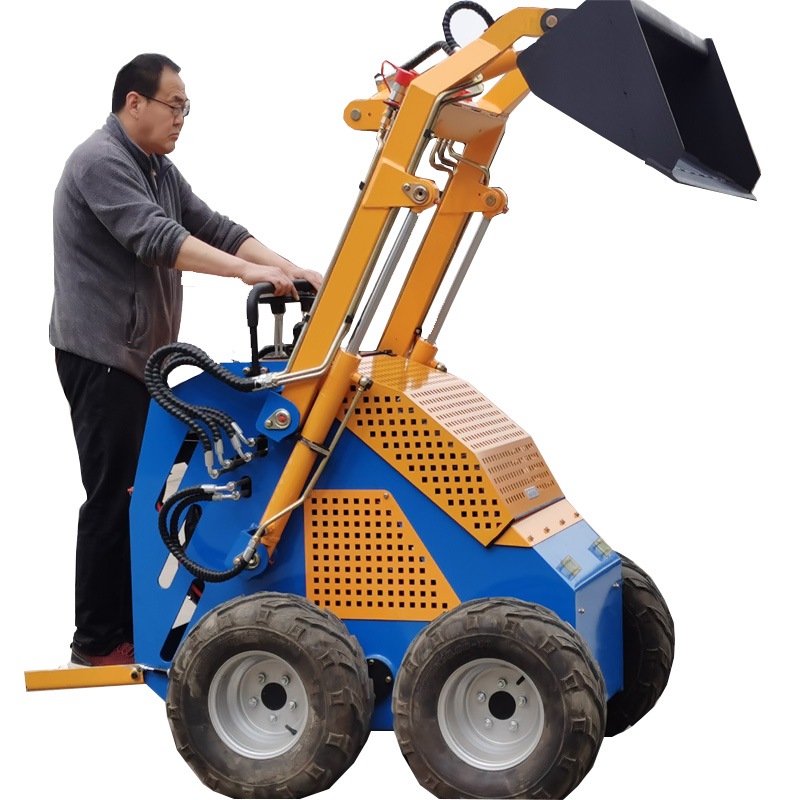

Mini Skid Steer Wheel loader for household

skid steer loader is wheel type, 4WD and skid-steering, with quick coupling to attach various attachments, it can working in different working environment and conditions. the product have compact, light and small turning radius, which makes it plays largest effect in limited working sites. Variety of attachments makes it widely used for different working conditions.
Engine Power:
Load c apacity:
noise (Db):
System Pressure:
Max. Travel Speed:
Availability:
Quantity:
  • JL300

  • TAVOL

  • 8529510000

Product Description

Mini Skid Steer Wheel loader for household

QQ图片20210511093425

Product description for Mini Skid steer loader:

Tavol skid steer loader is wheel type, 4WD and skid-steering, with quick coupling to    attach various attachments, it can working in different working environment and conditions. the product have compact, light and small turning radius, which makes it plays largest effect in limited working sites. Variety of attachments makes it widely used for different working conditions.

Technical specification for Skid steer loader:

Model

JL300



Engine   Model B&S

Rated   Power(KW)

23HP

Rotating   speed(rpm)

2200

noise   (Db)

≦95





Hydraulic   system

System   Pressure(Mpa)

17



Working   time(s)

lift

tipping   bucket

landing

4.27

1.34

3.31











Performance   parameters


metric

Rated   Load

300--380kg

Bucket   Capacity

0.15   m3

Maximum   lifting force

375   kg

Max.   Travel Speed

0-5.5   km./h

Operating   Weight

Solid   tires bodywork

860   kg

Ordinary   tire body

860   kg

Widened   tire body

850   kg

Caterpillar   vehicle

900kg







Tire   model

Solid   tires

16*6-8

Widened   tire

KT-302   18*9.5-8  6p/TL

Herringbone   engineering births

18*6.5-8

rim

Solid   tires

4.33R-8

Widened   tire

8*6.5

Fuel   tank capacity

21   L

Hydraulic oil tank capacity

27   L

Engine   displacement

627   ml

Bucket   breakout force

550Kg

Tipping   load

325kg

Main Features for Skid Steer loader

1. World famous brand engine imported originally ,low fuel consumption, reliable stability, long life, strong power, energy saving and environment protection. World-wide warranty makes the maintenance convenient

2. Unique design: Full open front cover and swing radiator allows easy to disassemble or replace the parts inside. Oil discharged outlet on external of frame is easier to change the engine oil, the foot pedal shock cushioned for uneven terrain and for comfortable driving, foldable foot pedal makes the machine more easily to transport.

3.  Optional wheel or track: Wheel or track is selected for different road condition, the tire with different treads are optional.

4. Multiple attachments: A variety of attachments are optional for different work condition.

未标题-22CMKT764WC%PX9SWGS3VK_副本


Main parts pictures for Skid Steer loader

微信图片_20210521110230

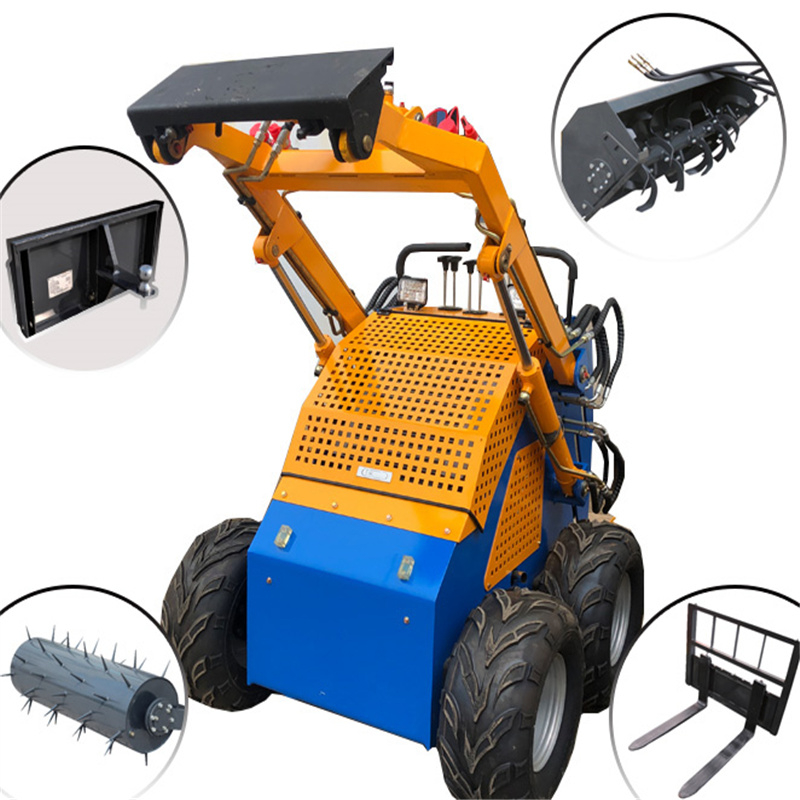

Multiple attachments:

ee_副本

Package details:

For order of 1-2 pcs, mini skid steer loader should be packed by designed steel frame and plywood cover, the size to be fit your mini loader. For more mini loaders, should be fixed in a independent container as the picture showing above. Further more package details should be confirmed again before shipment.

H95f66ecd757d4d2fbb28b60c103a01der

Colour can customized

color_副本_副本

FAQ:

1-Are you the manufacturer or trade company?

We are the manufacturer to produce excavator earth-moving wheel front skid steer mini loader, other loaders, and various attachments With brand name of Tavol. And we have owned trading company to do the International Business. so you can get the local service for them. Warranty for technical support, online video support, free spare parts. Service for a whole lift of this machine.

2-Can you do the ODM or OEM, what is MOQ?

Yes,definitely we accept OEM for wheel front skid steer mini loader and other loaders,typical Made in China style. MOQ:1unit.

3-What about delivery time,how long can I get the machine since order.

The producing time fast to 15-20 workings if you will customized ma-chine. The standard machine in stock can delivery as soon as possible after ordering.

4-How to pay for you?

30% payment before production, the balance 70% be paid before shipping. 100% pay first once order confirmed, if the mini skid steer loader in stock.
