MH Model Overhead Gantry Crane

Tavol Brand MH Euro Design Model Single GIrder Gantry Crane with Euro Design Low Room Wire Rope Hoist with Good Appearance and Low Cost.

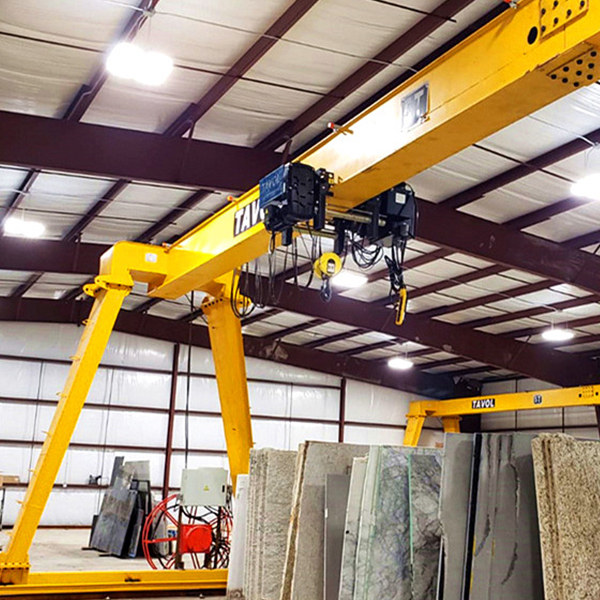

Overhead gantry crane single girder MH Model for indoors or outdoors factory and workshop
gantry crane capacity: MH10ton
gantry crane span: 12.5 m
gantry lift height:5m
Run way length: 50m

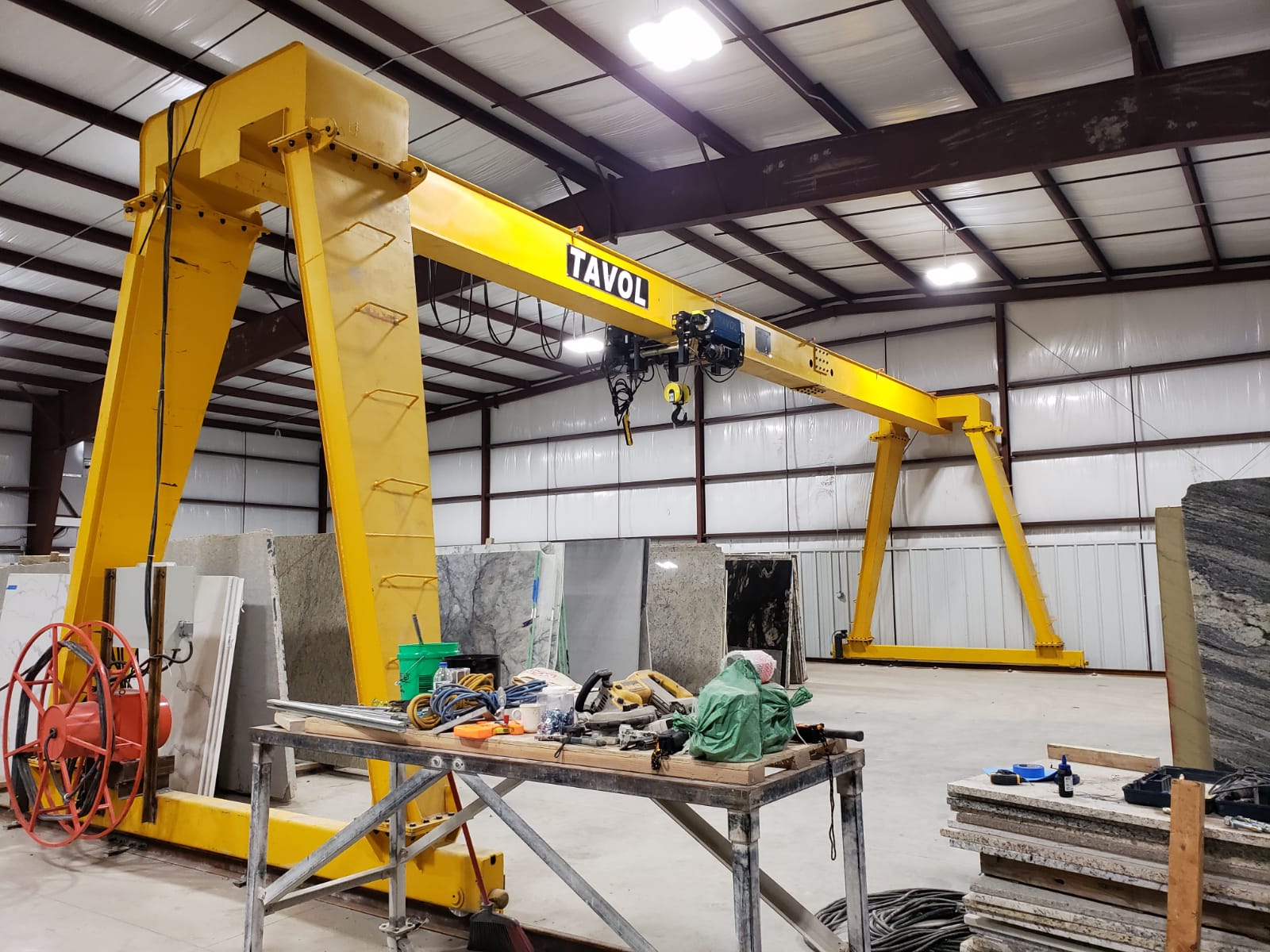

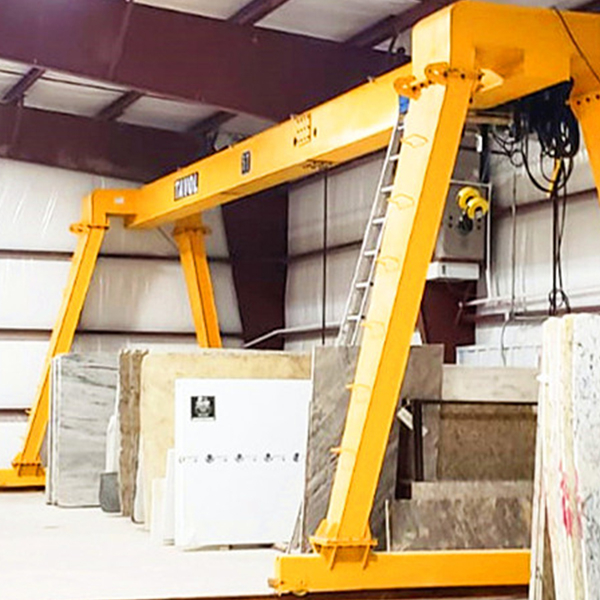

Loading Materials: Stone yard
Quantity:
  • MH Euro design Model overhead gantry crane
  • Tavol
  • 028

Product Description

Tavol Brand MH Euro Design Model Single GIrder Gantry Crane with Euro Design Low Room Wire Rope Hoist with Good Appearance and Low Cost.

MH model single girder gantry crane is similar to a bridge crane, but instead of moving on suspended runways,

the crane uses legs to support the bridge, and the electric hoist. The crane legs travel on fixed rails embedded in,

or laid on top of the floor.

MH Model Overhead Gantry Crane

01- Euro Design Overhead Gantry Crane Product Advantages:

1. Cut Down your cost in building of plant and workshop;

2. Improve your production efficiency;

3. Be suitable for indoor warehouse and outdoor usage;

4. Reduce daily maintenance;

5. Safety with high performance.


02- MH Mode Single Girder Overhead Gantry Crane Specification:




SI

Descriptions

Reference Data

1

Single girder gantry crane capacity

1 ton, 2 ton, 3 ton, 5 ton, 10 ton, 15 ton, 20 ton, 32 ton

2

Single girder gantry crane Span

3-31.5M

3

Single girder crane Lifting height

6-12M

4

Single girder gantry crane Work duty

A3/A4 - A5/M5

5

Overhead Gantry Crane Control method

Remote control or Pendant control

6

Electrical parts

CHINT or Schneider

7

Gantry Crane Motors

Chinese Nanjing brand

8

Gantry Crane Bearings

Chinese famous brand "HRB"

9

Gantry Crane Hook

Forged hook with safety lock

10

Gantry Crane Hoist Lifting speed

0-8M/Min (8/0.8m/min)

11

Crane hoist Traverse speed

0-20M/Min

12

Overhead gantry Crane Long travelling speed

0-20M/Min (20/30m/min)

13

Variable frequency drives

Optional

14

Overhang part

Optional



03- Overhead gantry crane single girder MH Model Application:

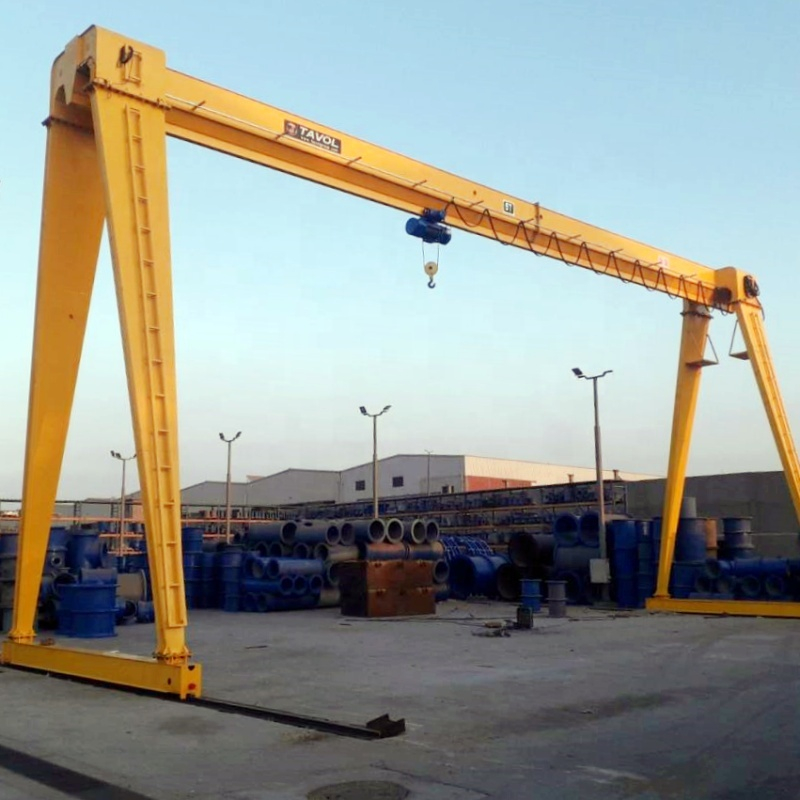

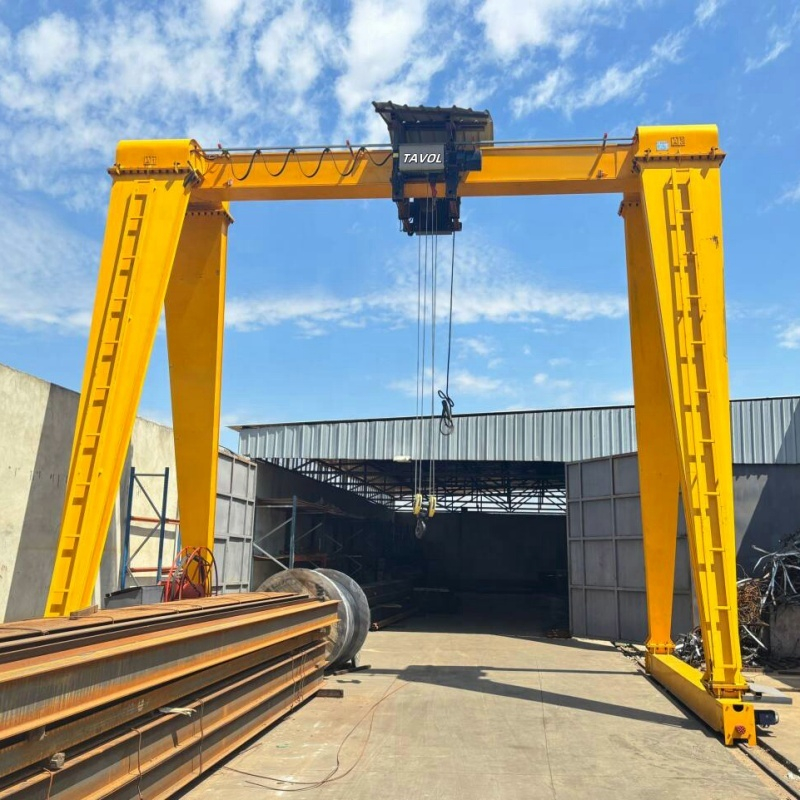

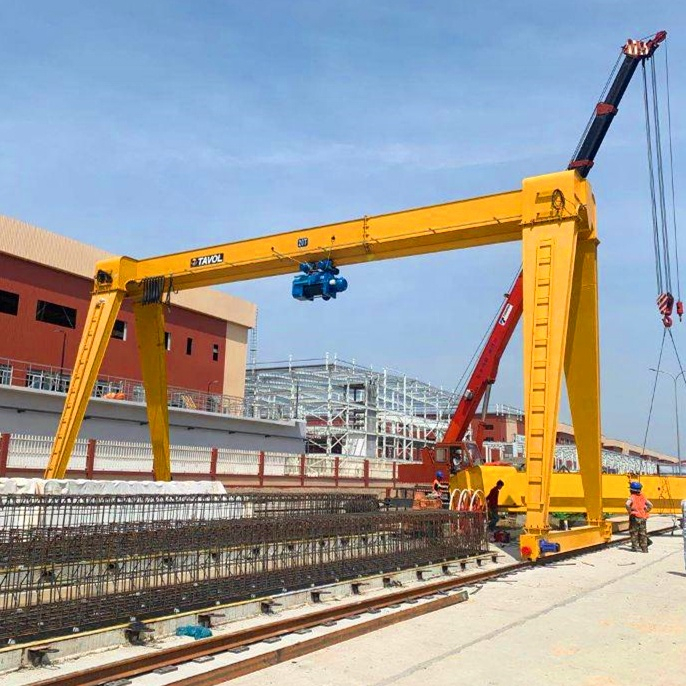

MH model single girder China gantry crane is typically used in an outdoor applications where full beams and

columns can’t be installed, or may be used below an existing bridge crane system.

Gantry cranes can most commonly be found in shipyards, railyards, special outdoor projects like the construction

of a bridge, or in places like steel mills where overhead room may be an issue.

It is widely applicable to multiple fields such as: Pre Engineered Steel Building, Steel Plant, Steel Product Maker,

Oil Industry, Plastic Plant, Cement Plant, Power Plant , Mine Industry, Food Industry, Chemical Industry, Cable Plant, Machine Tools, Car/Truck Industry, Transport Company, Construction Company, Electrical Company, Shipyard,

Stone Yard, Installation and Maintenance etc.

gantry crane

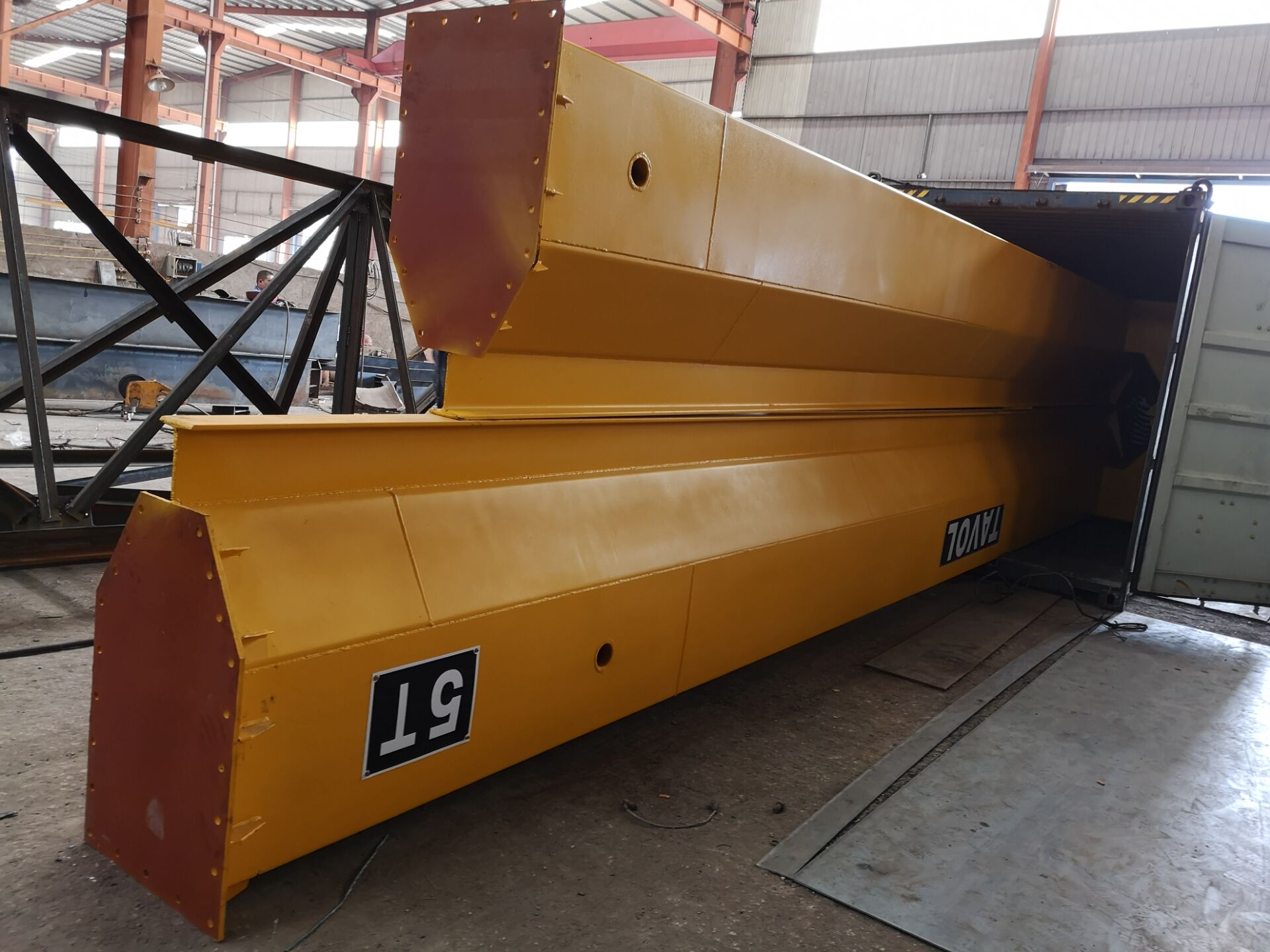

04- Overhead gantry crane single girder MH Model Package

1. Electric parts are packed by high quality plywood crate, to reduce distortion

in conveying;

2. Main beams, end beams are packed by plastic woven cloth, to reduce

abrasion when transport.

Whole set of overhead crane will be shipped by container or by bulk.

Gantry crane packing
