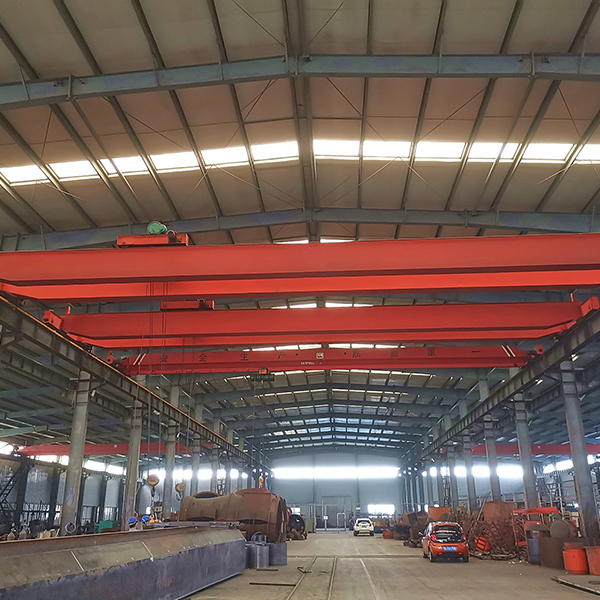

LH Overhead Cranes Double Girder Unversal Design

Double Girder Bridge Overhead Crane Universal LH Model
Double girder overhead crane capacity:LH3 - LH32/5 ton
Overhead crane span: 6m - 31.5 m
Overhead crane lift height: 3m - 60m
Working Temperature: -25 to 40°C
Availability:
Quantity:
  • LH Overhead Cranes Double Girder Unversal Design
  • Tavol
  • 038

Product Description

There are two girder beams that make up the bridge, and they are supported by an end truck on each side. The electric hoist trolley run on a rail installed above the bridge girders.


E-_a张若冉_泰沃的企业文化_修改_product_1

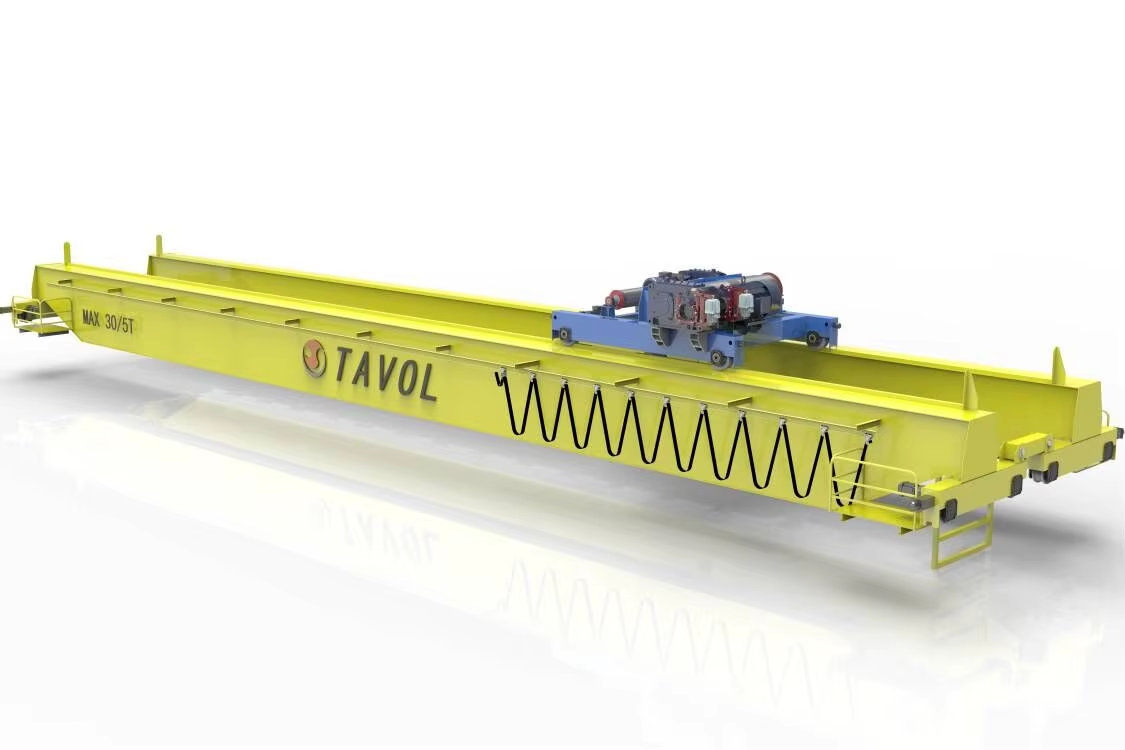

01- Double Girder Bridge Overhead Crane Structure:



LH Model double girder overhead bridge crane is suitable for light and middle grade.It is composed of box type bridge frame, lifting trolley, crane traveling mechanism and electrical system. It employs fixed electric hoist, which is fitted on trolley frame as the hoisting mechanism.




LH Model Double Girder Crane also called double beam bridge crane, double girder overhead travelling crane, Overhead eot crane, Double girder bridge crane.





According to design and hoist type, it separate with two type:

1- LH Overhead Crane Double Girder Universal Design

2- LHE Overhead Crane Double girder with European Design




LHE Overhead Crane Double girder with European Design




LH Overhead Crane Double Girder Universal Design



Double Girder Bridge Overhead Crane Product Features:

1. Cut Down your cost in building of plant and workshop;

2. Improve your production efficiency;

3. Be suitable for different operating conditions and provide you One-stop Solutions;

4. Reduce daily maintenance;

5. Safety with high performance.







02- Double Girder Bridge Overhead Crane Specification:



SI

Descriptions

Reference Data

1

Double girder overhead crane capacity

3 ton, 5 ton, 10 ton, 15 ton, 20 ton, 20/5 ton, 32 ton, 32/5 ton

2

Double girder overhead crane Span

6 - 31.5 meter

3

Double girder crane Lifting height

3- 60 meter

4

Double girder bridge crane Work duty

A4/M4; A5/M5

5

Overhead Crane Control method

Remote control & Pendant Control

6

Electrical parts

CHINT or Schneider

7

Overhead Crane Motors

Chinese Nanjing brand

8

Overhead Crane Bearings

Chinese famous brand "HRB"

9

Overhead Crane Hook

Forged hook with safety lock

10

Overhead Crane Hoist Lifting speed

0-8M/Min (8/0.8m/min)

11

Crane hoist Traverse speed

0-20M/Min

12

Double girder Bridge Crane Long travelling speed

0-20M/Min (30m/min)

13

Variable frequency drives

Optional

14

Maintenance platform

Included





03- Double girder Bridge overhead crane Application:



LH Model double girder crane is recommended for heavier-duty applications where the crane has to handle heavier capacities and longer spans.



It is widely applicable to multiple fields such as: Pre Engineered Steel Building, Steel Plant, Steel Product Maker, Oil Industry, Plastic Plant, Cement Plant, Power Plant , Mine Industry, Food Industry, Chemical Industry, Cable Plant, Machine Tools, Car/Truck Industry, Transport Company, Construction Company, Electrical Company, Shipyard, Stone Yard, Installation and Maintenance etc.

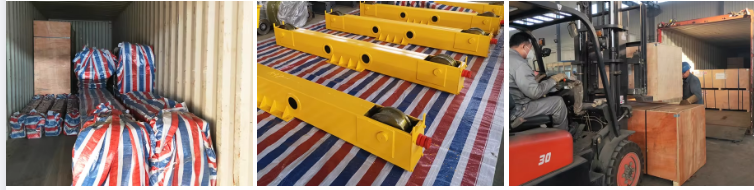

04- Double girder overhead crane Package:



1. Electric parts are packed by high quality plywood crate, to reduce distortion

in conveying;

2. Main beams, end beams are packed by plastic woven cloth, to reduce

abrasion when transport.

3. Whole set of overhead crane will be shipped by container or by bulk.







05- About Tavol



Tavol is an overhead bridge cranes manufacturers, overhead crane installation, Overhead Crane Repair, Bridge crane maintenance, overhead crane operator training and overhead crane service company from China.



Following the china and international overhead crane design standard, focus on the overhead crane safety and bridge crane safety to the overhead crane operator, help you to solve your warehouse crane and factory crane troubles, try to reduce the overhead crane cost, mainly made overhead cranes, bridge cranes, gantry cranes, warehouse cranes, overhead jib cranes, overhead cranes and hoists, underhung bridge crane, workstation bridge crane, overhead crane kits etc.



The Popular model including 5 ton Crane, 10 ton crane, 5 ton gantry crane, 5 ton overhead crane, 5 ton bridge crane, 10 ton overhead crane, 10 ton gantry crane, 20 ton overhead crane, 2 ton overhead crane, 10 ton bridge crane, 2 ton bridge crane, 1 ton overhead crane, 20 ton gantry crane, 1 ton bridge crane, 20 ton bridge crane, 3 ton bridge crane, 15 ton overhead crane, 15 ton bridge crane, 25 ton overhead crane, 5t overhead crane, 10t gantry crane,10t overhead crane etc.



Except the Full sets Overhead Bridge Cranes, Tavol also overhead crane suppliers of the bridge crane components, overhead crane accessories and overhead crane attachments and parts, like overhead crane trolley, overhead cranes and hoists, overhead crane rail, overhead crane wheels, overhead crane pendant, overhead crane motor, overhead crane trolley system, overhead crane track, bridge crane wheels, overhead crane hook, overhead crane brake mechanism, overhead crane gearbox, overhead crane cable, overhead crane rollers, Overhead crane bumpers, overhead crane busbar, Overhead Cabin etc.



As a top overhead crane manufacturers, Tavol supply the overhead eot crane and overhead crane project all of the world market, from Asia to Middle east, Africa and American countries, like Indonesia, UK, Singpore, Canada, India, Australia, Egypt etc.
