Hot Sale 3.5ton Hydraulic Counterbalance Diesel Forklift with CE

Tavol forklift adopts the streamline design that makes the appearance more pleasing,using domestic well-known engine brand which is powerful, dependable, easy to service ,and with low emissions and fuel consumption.Our forklift can reduce your cost,provide greater productivity and profitability for you.
Quantity:
  • CPC/CPCD
  • TAVOL
  • 84272090

Product Description

China Famous Factory New Design 3TON 3M Diesel Forklift Price for Sale

diesel forklift 1

Tavol forklift adopts the streamline design that makes the appearance more pleasing,using domestic well-known engine brand which is powerful, dependable, easy to service ,and with low emissions and fuel consumption.Our forklift can reduce your cost,provide greater productivity and profitability for you.

Tavol forklift driving cab has excellent all round visibility, adjustable full suspension seat ,ergonomically laid out levers and pedals, which can bring you more convenient and comfortable operation experience, improve the comfort of your work.


Specification of Forklift

Model

                        CPC35/CPCD35

Rated Loading Capacity(kg)

                          3500

Load center(mm)

                           500

Drive Form

                         Diesel

Max Lifting Speed(Full load)(mm/s)

                            450

Max Driving Speed(Full/Empty load)(km/h)

                          18/20

Fork Lifting Height(mm)

                            3000

Mast Tilt Angle(Forward and Backward)

                            6/12

Min. Turning Radius(mm)

                            2540

Min. Ground Clearance(mm)

                              135

Overall dimensions

Length(Including Fork)(mm)

                             4000

Width(mm)

                             1230

Height

(Door Frame Indented)(mm)

                             2110

Max working Height

(Door Frame Out Completely)(mm)

                             4270

Height from ground to overhead guard(mm)

                             2105

Front Overhang(mm)

                               465

Wheel Base(mm)

                             1775

 Wheel distance

Front (mm)

                             1000

Back(mm)

                              970

Tire

Front tire

                           28*9-15


Rear tire

                            6.50-10

Self weight(kg)

                               4660

Fork Width(mm)

                                122

Fork Thickness(mm)

                                 45

Block Shelf Height

                               1225

Standard Fork Length(mm)

                               1220

 Engine

Rated Power(kw)

                               36.8

Speed At Rated Power(rmp)

                               2500

Maximum Torque(Nm)

                               156

Speed At Maximum Torque(rpm)

                            1700-1900

Transmission

               Mechanical/Automatic

Detail Image


detail 3

New suspension adjustable seat

More comfortable when working

detail 1

Operating Steering wheel and function operation bar

Enlarge working space

detail 2

Full set of LED lightSave electricity, high strength, longer service life.

detail 4

Wear-resistant solid tireIncrease the ability of forklift to adopt different roads and working environment.

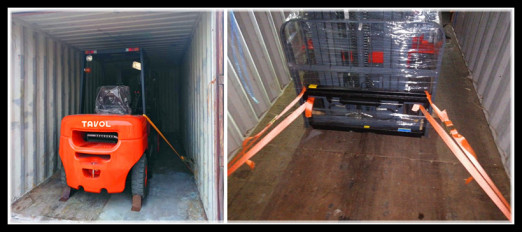

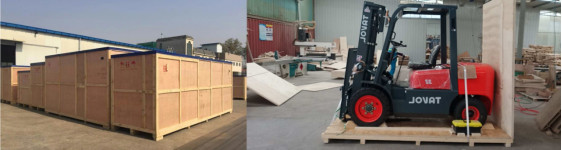

Package Information


package 2 package 1

Cetification

ISO9001 Quality Certificate

If you are interested in our forklift, welcome to contact us


Ms.Mika

Email:sls88@tavolgroup.com

Whatsapp/Wechat/Phone:+8613287635200
