Hammerhead Topkit Tower Crane Service in Cement Factory

4ton Topkits Tower Crane of Construction is a mini tower crane to lift various materials in construction field. It is characterized by creative design with rational structure and reliable operation. Its maximum load is 4t, tip load is 0.8t, jib length is 48m, and free standing height is 29m, maximum anchorage height can reach 120m. Equipped with all necessary safety devices, this construction equipment is superior to its counterparts not only in its original design, attractive appearance and secure operation but also in its extraordinary speed-control ability and work efficiency.
max .load :
jib length:
free standing height:
max anchorage height:
mast size:
Quantity:
  • QTZ50(5010) 5ton Topkits Tower Crane of Construction
  • TAVOL
  • 84262000

Product Description

Hammerhead Topkit Tower Crane Service in Cement Factory

All the Cement factory or Plant need the tower crane to loading unloading Materials with Long Jib distance,

Now Tavol Brand Tower Crane has service in the Cement factory in Bangladesh, Oman, Saudi Arabia, Vietnam,

Uganda, etc.


Product Description:



 QTZ50- 5010 building and construction equipment tower crane is a mini tower crane to lift various materials in construction field. It is characterized by creative design with rational structure and reliable operation. Its maximum load is 5t, tip load is 1t, jib length is 50m, and free standing height is 29m, maximum anchorage height can reach 120m. Equipped with all necessary safety devices, this construction equipment is superior to its counterparts not only in its original design, attractive appearance and secure operation but also in its extraordinary speed-control ability and work efficiency.

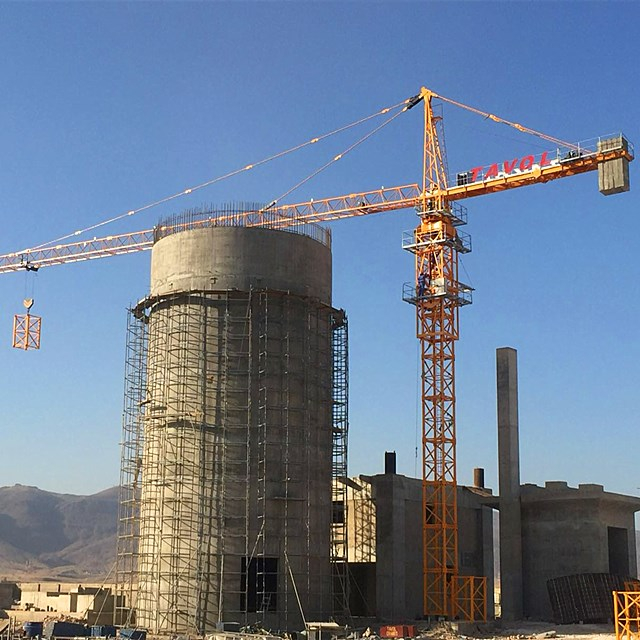

tower crane in cement factory

Technical Specification

Series

QTZ50

Standard Model

5010

Max. Lift Load

5t

Tip Load

1t

Free Standing Height

29m

Max. Anchorage Height

120m

Jib Length

50m

Mast size

1.5×1.5×2.2m



Lift Mechanism

Lifting Speed

(a=2)70/35/9 m/min

(a=4)35/17.5/4.5m/min

Lift motor

15/15/4kw

Trolley Mechanism

Trolley speed

39/26 m/min

Trolley Motor

1.5/2.2kw

Slewing Mechanism

Slewing speed

0.72r/min

Slew Motor

3.7kw

Jacking Mechanism

Jack climbing speed

0.4m/min

Jack climbing motor

4kw

Voltage

380V/50Hz/3P

Luxury Operate Cabin, Schneider Electric Parts

tower crane in cement plant


Product Feature

1)Hoisting Mechanism 3-Product Feature

Three-gear speed modulation by electrical motor or frequency conversion, giant winch.

2)Rotation Mechanism
Speed modulation with frequency conversion, stable break, accurate position, outstanding on performance and operation all around the world.

3) Trolley Mechanism
Speed modulation with frequency conversion, less concussion, stable operation.

4)Control System
PLC control, auto diagnosis on electric malfunction, corresponding alarm on light and sound, key components adopting international top brand product.

5) All the Cement factory or Plant need the tower crane to loading unloading Materials with Long Jib distance.

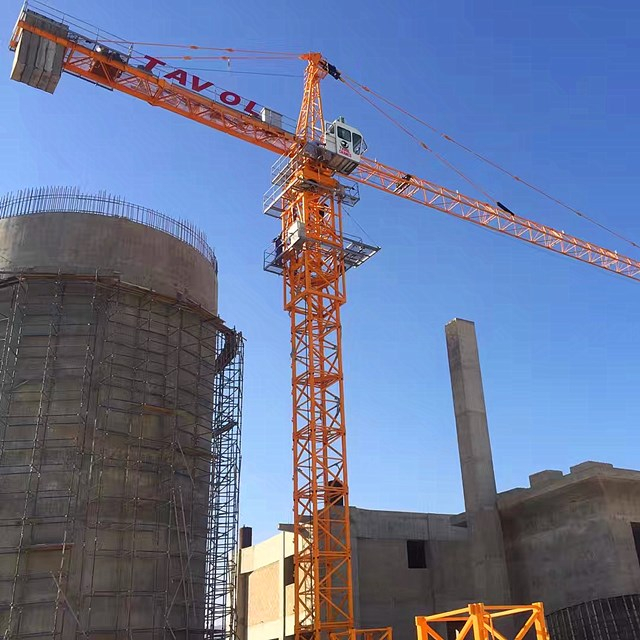

tower crane in oman

Safety Features

1

Torque limiter

Control torque, it will warns when lifting weights reach to 90% of rated lifting torque. When reach to 110% of the rated lifting torque, it will limit rising upwards and trolley.

2

Weight limiter

Control the maximum lifting capacity, lifting weight reach to 40% of the rated capacity, limit high-speed lifting; lifting weight reach to 110% of the rated capacity, limit  the lifting up

3

Height limiter

Control the lowest and highest extreme position of lifting hook

4

Slewing limiter

Control the extreme turns number of turn left and right

5

Amplitude limiter

Control trolley limit position of inward and outward

6

Overload protection

If the material is over the capacity, the crane will give a sharp warning for protection itself

7

Emergency brake

If the operation staff  encounter some emergency situation, we could start the emergency brake system to protection the related treasure

8

Control Method

Room control or remote control to avoid any injury to the operation staff

9

Main lifting motor

with thermal protection and currency protection


Tavol Brand Advantages


01- More than 20 years of production experience, More than 10 years of tower crane sales experience in the international market,product quality and after service is guaranteed.

02- Adopts ISO9001 international standards from product design to manufacturing process to ensure that product design information is complete, correct, and unified, and fully meets user requirements.

03- There is a gap in the core configuration,like The motor brand ,electrics brand , and key device etc.

04- There is a gap in the production process,

Tavol has more advanced processing technology and manufacturing equipment.

05- The gap in raw materials, All incoming raw materials are tested by carbon and sulfur analysis instruments.

06- All components undergo more rigorous testing before leaving the factory.

07- There is a gap between pre-sales, in-sale and after-sales service, Tavol is more professional.

08- The employee's working time in the company shows the stability of the company, Most of the employees have worked in the company for more than 10 years.

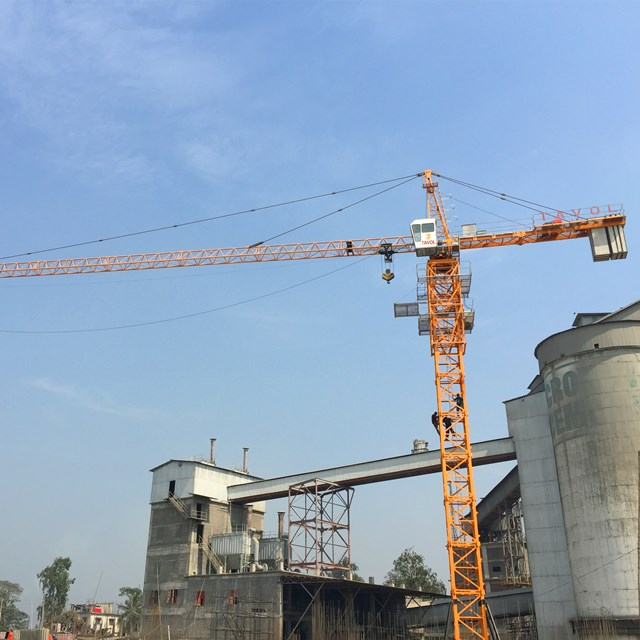

tower crane for cement factory

Factors affecting the price of tower cranes

Max loading capacity, Tip Load Capacity, Jib length, standard Mast Quantity, single or double rotation Mechanism, standard mast material, motor power, Need frequency conversion or not, etc.

Tower crane quotation needs to know the parameters, like

The Max Loading Capacity, Jib Length, Tip Load Capacity, Height of Lifting and the Height under the Jib.
