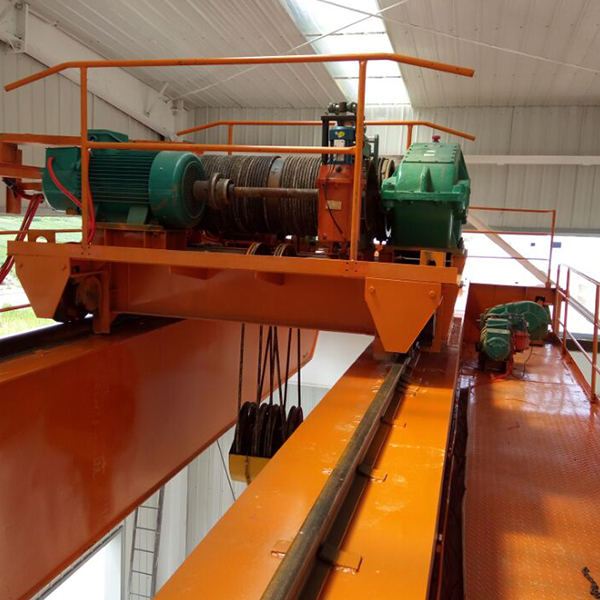

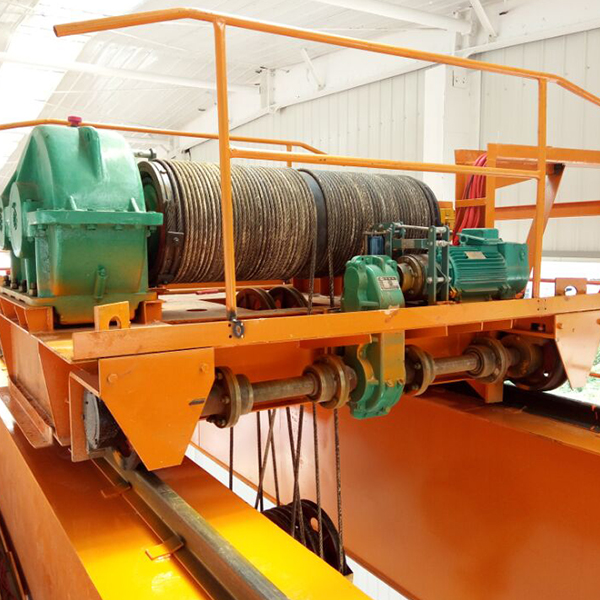

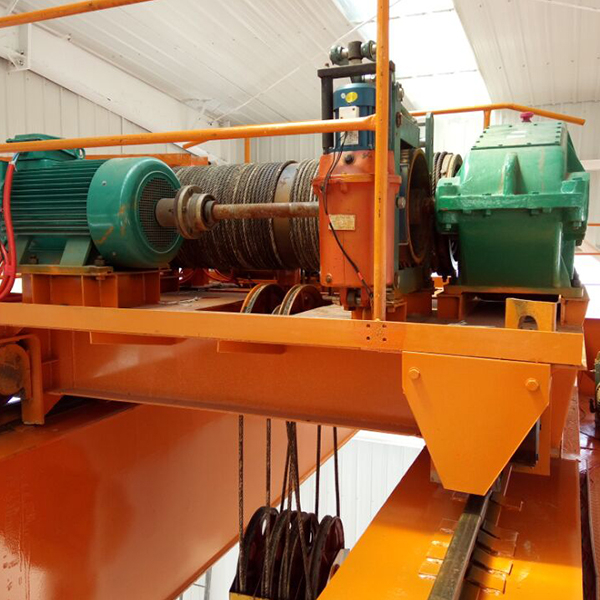

Double Girder Crane Open Winch Trolley To Do As The Lifting Mechanism of The Heavy Duty Double Girder Cranes

Double Girder Crane Open Winch Trolley To Do As The Lifting Mechanism of The Heavy Duty Double Girder Cranes,
Double girder electric winch trolley is widely used in double girder bridge crane and double girder gantry crane to be treated as the lifting and cross travel mechanism. It is mainly composed of drum, wire rope, motor, brake, reducer, wheel, etc.
Quantity:
  • QD Model Open Winch
  • Tavol
  • 052

Product Description

Double Girder Crane Open Winch Trolley To Do As The Lifting Mechanism of The Heavy Duty Double Girder Cranes



Product Introduction:

Double girder electric winch trolley is widely used in double girder bridge crane and double girder gantry crane to be treated as the lifting and cross travel mechanism. It is mainly composed of drum, wire rope, motor, brake, reducer, wheel, etc.

Sometimes there are 2 sets of wire rope drum fixed on same trolley to meet the requirement of main lift and auxiliary lift.

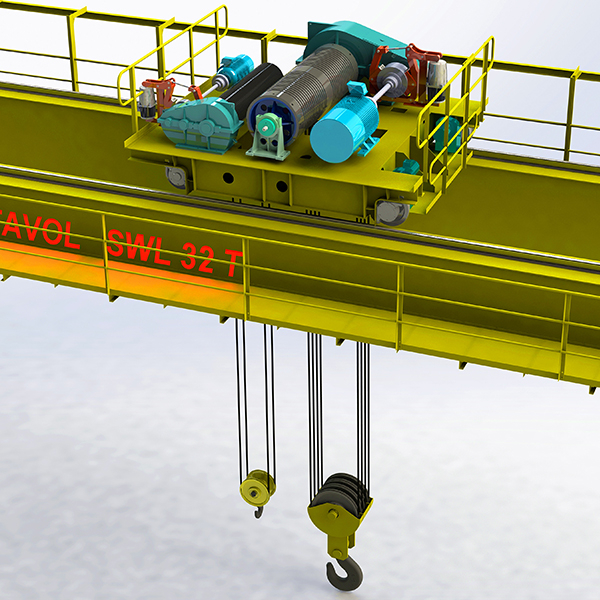

double girder crane open winch


Product Specification:

SI

Descriptions

Reference Data

1

Lift capacity

3T-250/50

2

Lifting height

6-30M

3

Work duty

M5-M7

4

Electrical parts

CHINT or Schneider

5

Hook

Forged hook with safety lock

6

Lifting speed

0-10M/Min

7

Cross travelling speed

0-20M/Min

8

Variable frequency drives

Optional



Product Application:

Normally double girder winch trolley is used in double girder eot crane and double beam cantilever gantry crane.

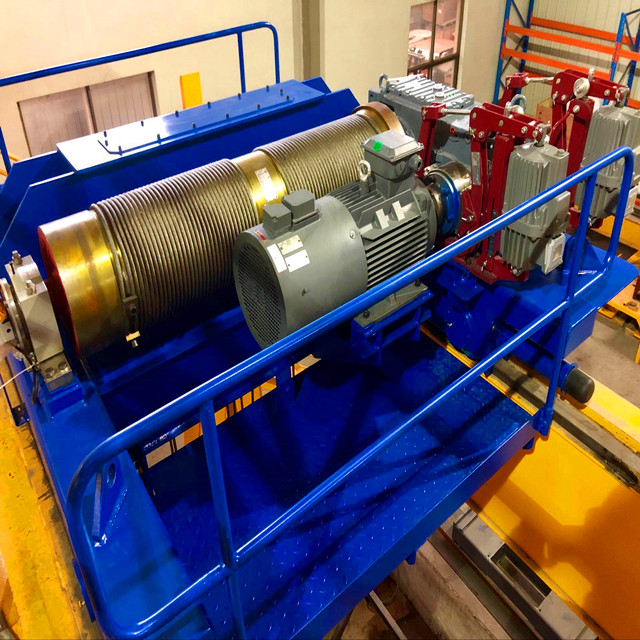

open winch for double rail crane
