Product Description

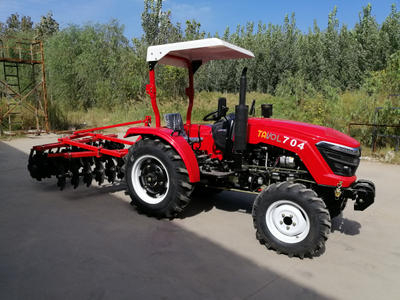

Heavy-duty disc harrow
The 1BZ Series hydraulic pressure heavy- -duty disc harrow absorb the advantages of foreign similar advanced products .It's designed accordingto the standards ,with modular construction .Rigid frame as main body ,matched with hydraulic pressure transport rubber tire, spring leveling mechanism and sealed rolling bearing with spherical surface with small radius of gyration ,easy to adjust and maintain ,etc.
Main specifications
Model | No.of discs | Working Width(cm) | Weight(kg) | Working Depth(cm) | Matched Power(hp) | Diameter of Disc(cm0 | Linkage |
1BZ-2.0 | 18片18pcs | 200 | 2250 | 20 | 60-80 | 66 | Trailed |
1BZ-2.5 | 24片24pcs | 250 | 1350 | 20 | 80-100 | 66 | |
1BZ-3.0 | 28片28pcs | 300 | 1430 | 20 | 100-120 | 66 | |
1BZ-3.4 | 32片32pcs | 340 | 1550 | 32 | 120-150 | 66 |
