Crane End Truck To Do As The Crane Long Travel Mechanism of The Overhead And Gantry Cranes

Crane End Truck To Do As The Crane Long Travel Mechanism of The Overhead And Gantry Cranes.

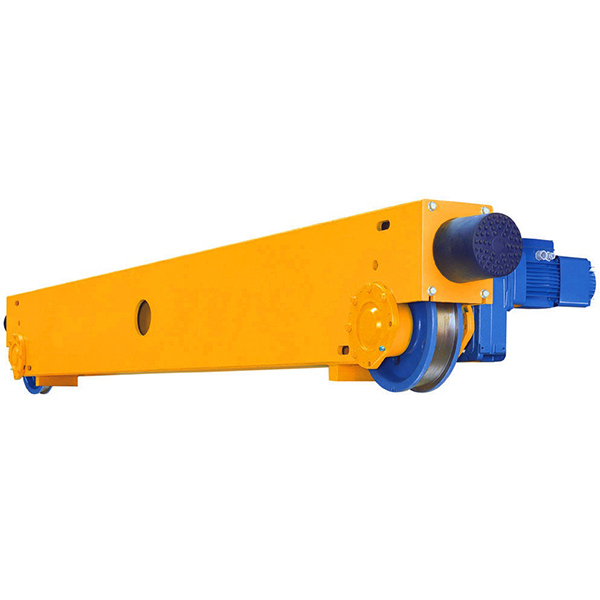

End carriage is also called end truck and it is the long tavelling mechanism of overhead crane and gantry crane. It is composed of beam, motor, wheel, brake, buffer, etc.
Availability:
Quantity:
  • TL
  • Tavol
  • 053

Product Description

Crane End Truck To Do As The Crane Long Travel Mechanism of The Overhead And Gantry Cranes

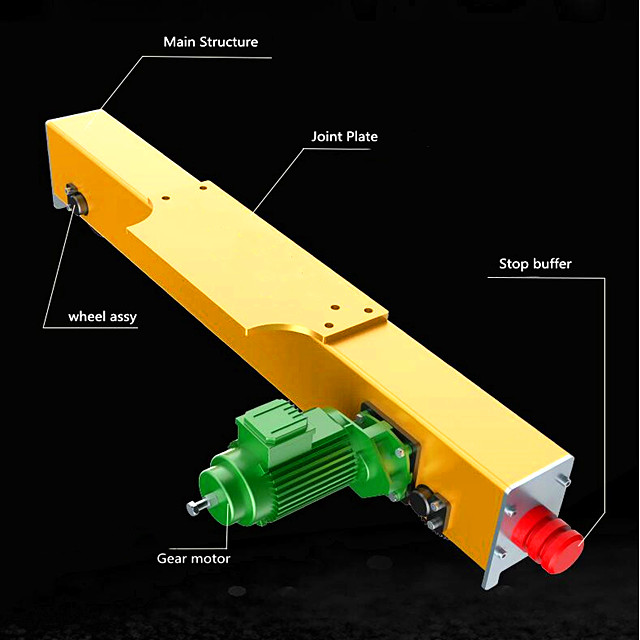

Overhead Crane End Trucks Structure


Overhead Crane End Trucks also called overhead crane end carriages, and it is the long travelling mechanism of top running overhead cranes and gantry cranes. It is composed of overhead bridge crane kits like: overhead crane beam, overhead crane motor, bridge crane wheels, overhead crane brake mechanism, overhead crane gearbox, overhead crane stop buffer etc.

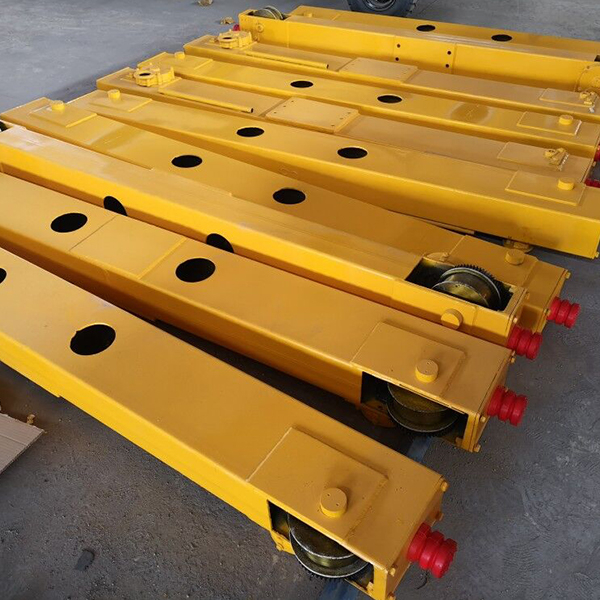

end carriage

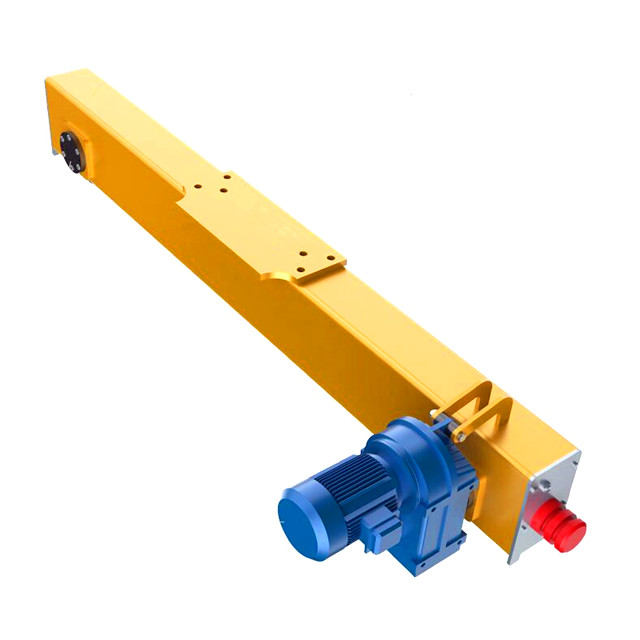

End carriage is made of rectangular tube, transmission mechanism use gear reducer motor, equipped with the open pinion wheel or hollow shaft wheel. Suitable for single girder or double girder overhead crane.Wheel tread surface heat treatment.It only need to weld the main beam and end beam after correction. Making crane manufacturing and installation extremely easy.

end carriage

Overhead Crane End Trucks Features:

1. Simple structure in linear type, easy in installation and maintenance;

2. Material is Q235B or Q345B, high strength.

3. End carriage can be custom-made according to customer’s requirements.

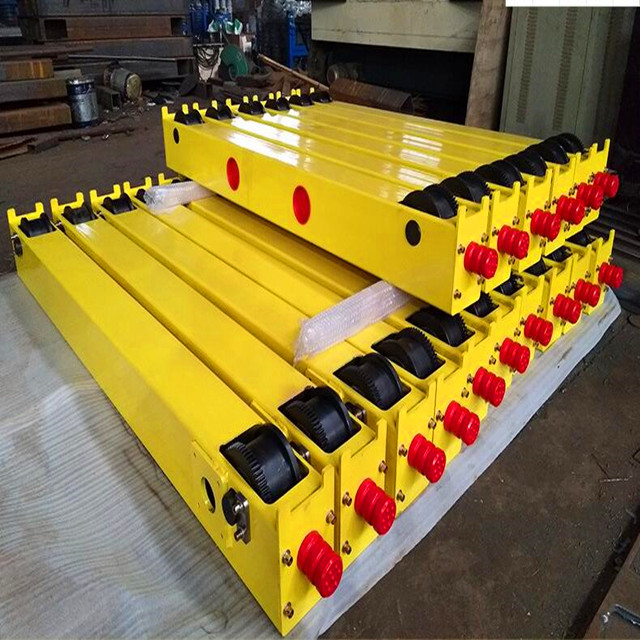

end truck

Overhead Crane End Trucks Application:

End carriage is mainly used on single girder overhead crane, double girder bridge crane, single beam gantry crane and double girder gantry crane to be treated as the long travelling mechanism.

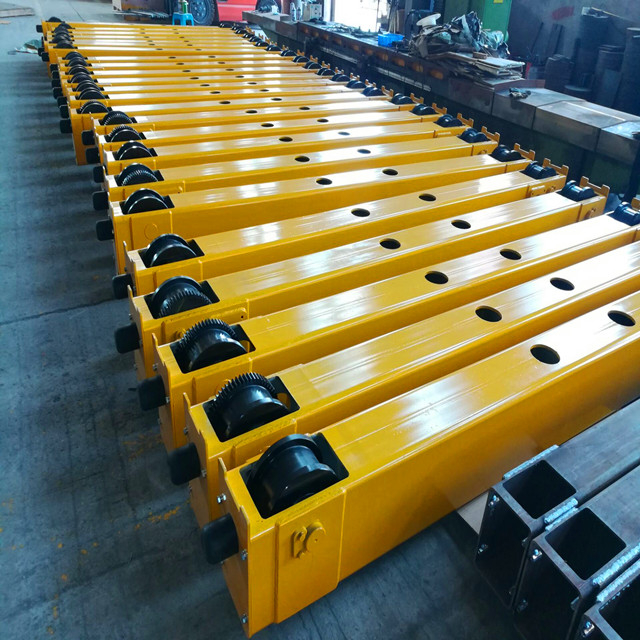

end truck
