Crab steer mode 4-wheel steer 2.5 ton 388H ROPS with A/C small backhoe loader with competitive price.

Share to:

Crab steer mode 4-wheel steer 2.5 ton 388H ROPS with A/C small backhoe loader with competitive price.

It is commonly known as backhoe loader because it has a loader in front and an excavator in the back. On the construction site, you only need to turn the seat to complete the role change from loader to excavator. By changing different attachments, it can be easily Quickly reach other functions of excavator and loader.
The excavator and loader are combined into one, making one machine multi-purpose. It fully possesses all the functions of an excavator and loader, is suitable for working in narrow spaces, is convenient and flexible, and improves work efficiency by more than 30%.

TA388H:	Load Capacity:2500 Kg Bucket Capacity :1.2m3 Operation Weight 10500 kg LWH 6450mm2490mm3940mm Wheel base 2335mm Bucket Dumping height 3050mm Backhoe Capacity 0.3m³
Availability:

Quantity:



Inquire Add to Basket

Model:
TAVOL TA 388H Backhoe Wheel Loader
Brand:
TAVOL Brand
Code:
8429510000

Product Description

Product Description

Product Advantage

Features:

*YUCHAI YC4A105Z-T20 75kW engine

*ROPS/FOPS cabin with air conditioning

*Front and rear mechanical operating handles

*Front tire size: 16.9-28, rear tire size: 16.9-28

*One set auxiliary hydraulic pipes & hoses is installed on backhoe arm

*Steer mode: 4-wheel steer, 2-wheel steer, crab steer mode

*Backhoe arm with function of hydraulic side shifting

*H type supporting legs.

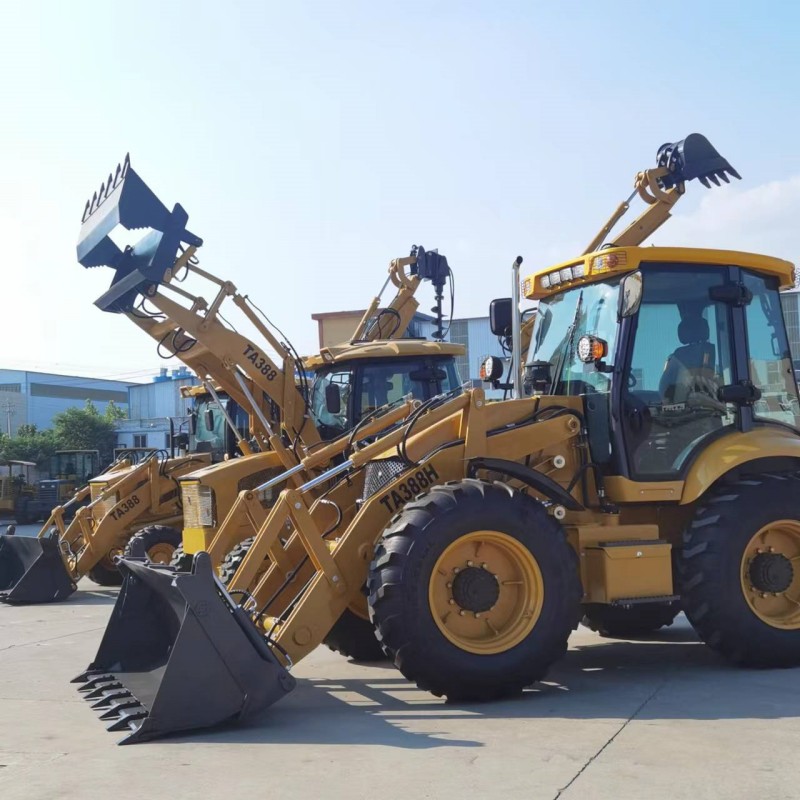

backhoe DS

Optional:

*WEICHAI WP4G95E221 70kw engine;

*Carraro transmission and axle imported from Italy;
*Pilot control with joystick for hydraulic system;
*Backup camera;

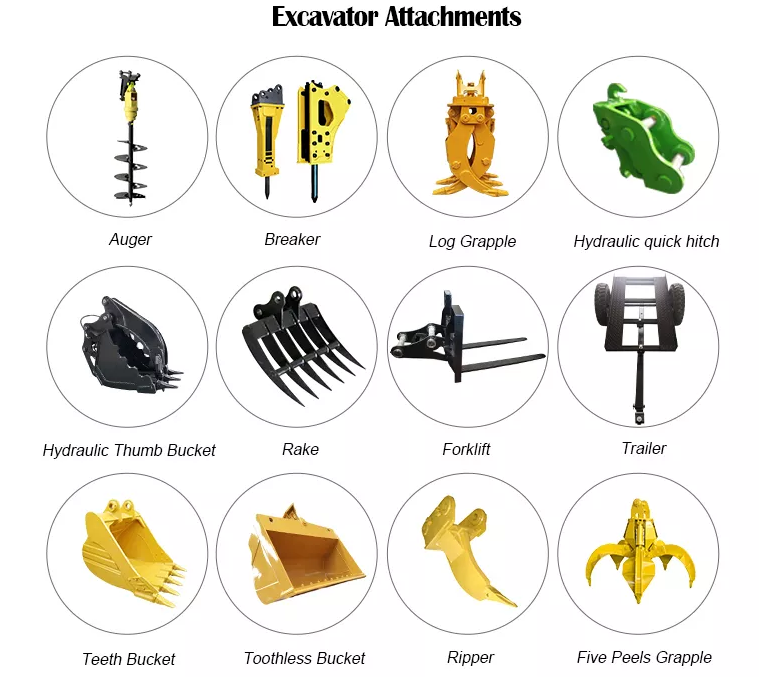

*Front Loading End:6 in 1 bucket;
*Front Loading End:quick coupler;
*Front loading end: Type A wooden fork, etc. *Rear digging end: breaking hammer, wooden fork, etc.

*Rear excavation end: auger, telescopic boom, etc.

*etc.

Product Specifications

Model	TA388H
General specification	Overall Operating Weight	10050KG
	Overall Dimentions	6450mm2490mm3940mm
	Wheel Base	2335mm
	Wheel tread	2139mm
	Bucket Capacity	1.2m3
	Loading Lifting Capacity	2500KG
	Bucket Dumping Height	3050mm
	Max. Digging Depth	3820mm
	Backhoe Capacity	0.3m3
Engine information	Brand	Yuchai, Weichai, Cummins
	Model	YC4A105Z-T20
	Rated Power(kw)	75KW
	Engine speed(r/m)	2200
	Max. Torque	400N.M
Transmission system information	Torque Converter Model	315
	Gear Shifting	F4R4
	Gearbox Model	28
	Tyres Model	16.9-28
Working control system	Working Control Type	Mechanical control
Hydraulic system information	Working pump displacement	63ml/r
	Working pump pressure	20Mpa
	Diverter model	BZZ5-250

Product Detailed Information

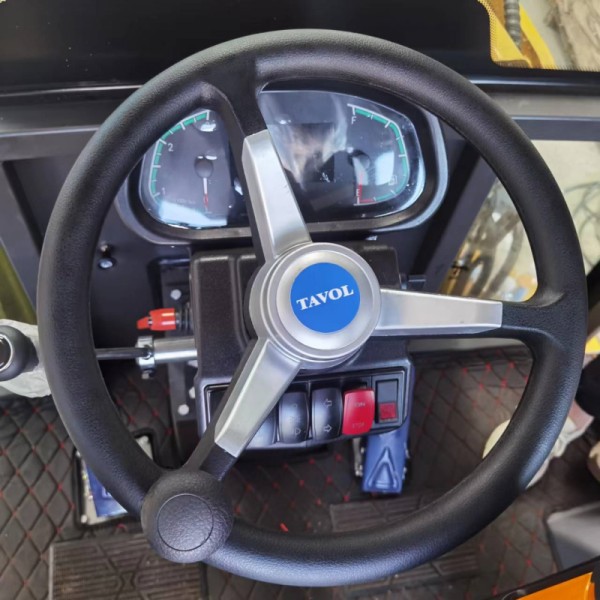

Luxury Instrument Board

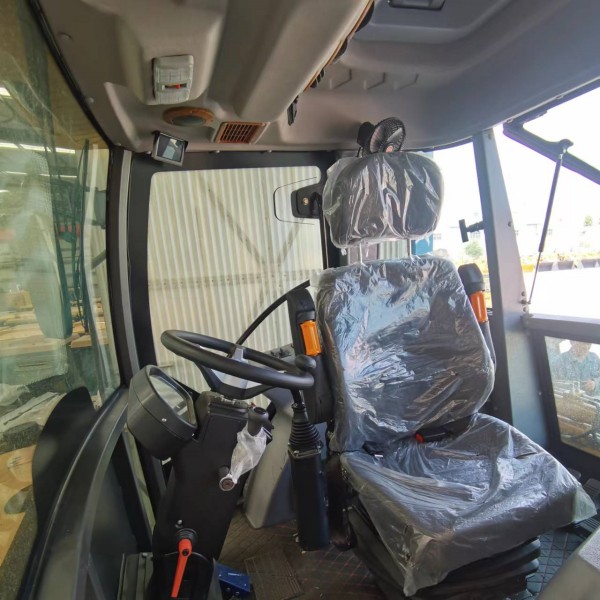

Spring Armrest Seat

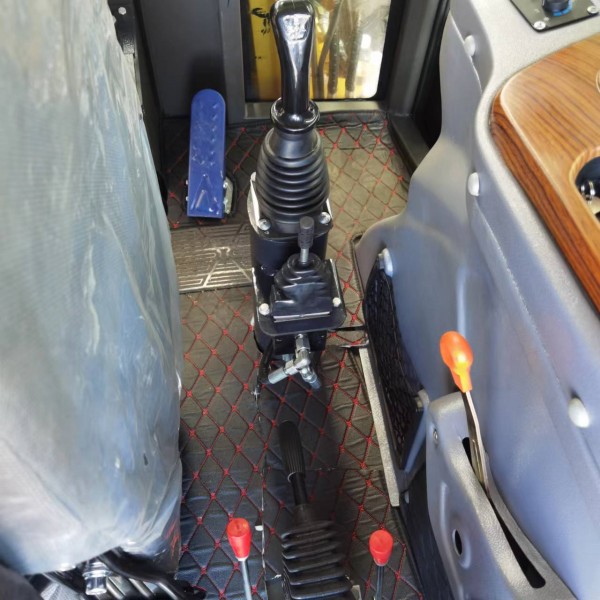

Pilot Control

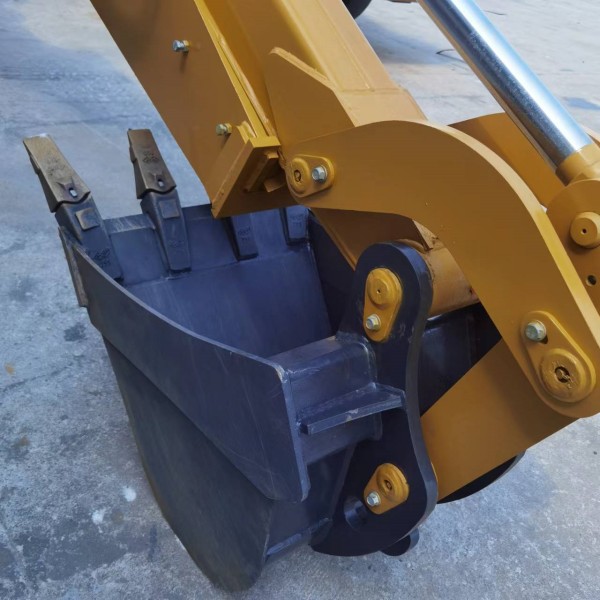

Backhoe Bucket

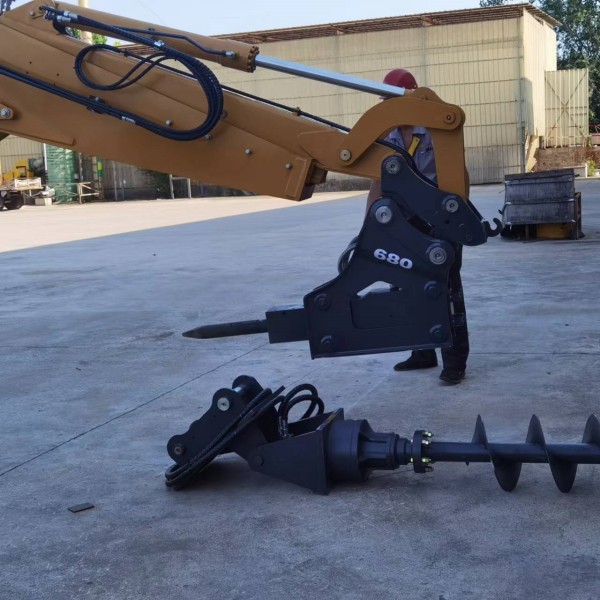

Breaking Hammer

Auger

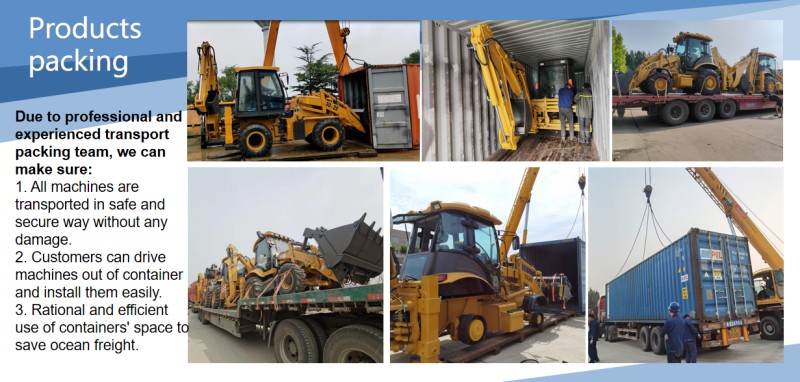

Product Packaging

Optional RO-RO/ CKD&SKD Package/ Full containers; 1 unit naked within 1 x 40HQ container.

Company Profile:

Shandong Tavol Group Co., Ltd

Tavol Company was established in 2012, A Chinese construction machinery manufacturing brand that provides customized services. Mainly produces more than 20 models of wheel loaders with a load capacity ranging from 0.5 tons to 6 tons and backhoe loaders with a loader capacity ranging from 0.8tons to 2.5tons. We also produce skid steer loaders etc. and other related construction and agricultural machinery, such as forklifts, excavators, cranes and tractors etc.

Whether you're an agricultural farmer, a mine owner, or a contractor on a construction site, there will always be one machine that is right for you. As long as you can drive, you will operate these machine easily, It will definitely be your good partner to make a fortune.

fatory-Daisy

FAQ

Q: Are you a manufacturer ,Trader or agent?

A: We are manufacturer,mainly make the wheel loaders from 1Ton-6 Ton.

Q: Can you do some changes according to our requests?

A: Sure. We can do some changes according to your uses. We provide many options, like A/C, Cabin heater, Forklift, Pallet fork,log grapple, grass fork etc.

Q: Where is your main market?

A: Southeast Asia, Russia, Africa and the whole China.

Q: What is the payment item?

A: Payment item is negotiable and there will be favorable payment terms for long-term customers. TT or L/C depends on the cooperation time, country and contract value.

Q: How can we guarantee quality?

A: Always a pre-production sample before mass production; Always final Inspection before shipment.

Q: What can you buy from us?

A: Wheel loader/Mining Machinery/Forklift/Backhoe loader.

Q: What is the delivery item?

A: General EXW, FOB, CFR, CIF, CPT.

Q: Can you accept customization?

A: Yes. We support customize services according to your requirements, including size, appearance, color, engine, etc.
