Product Description

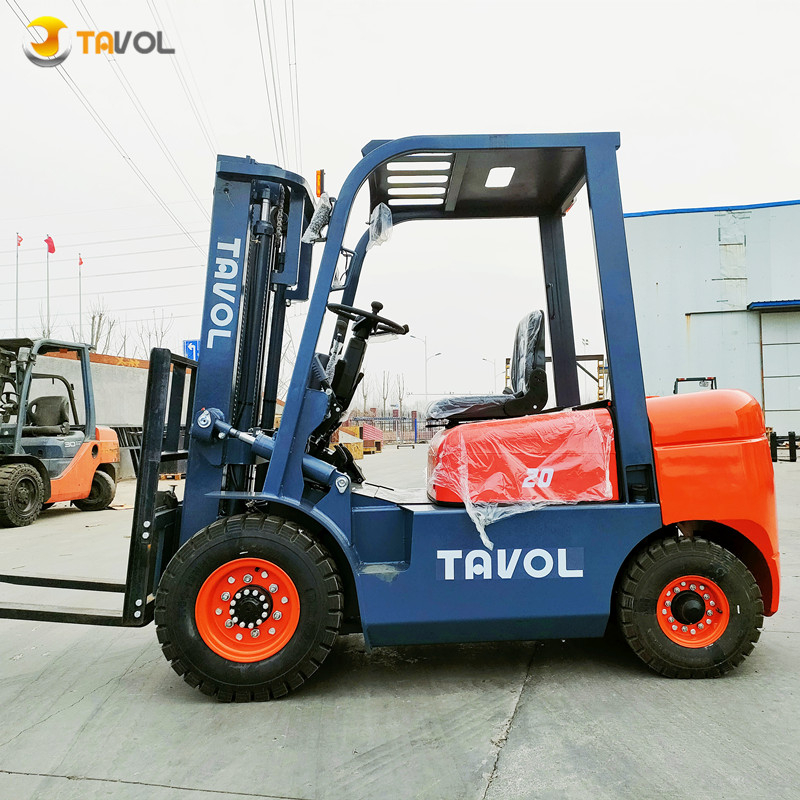

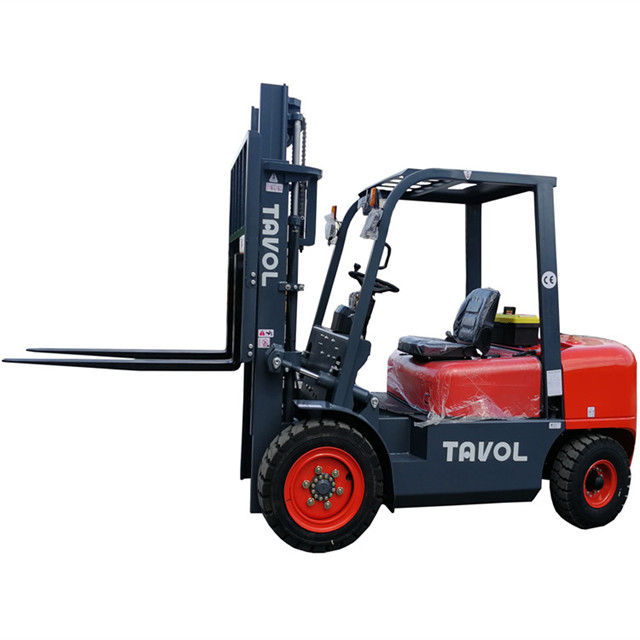

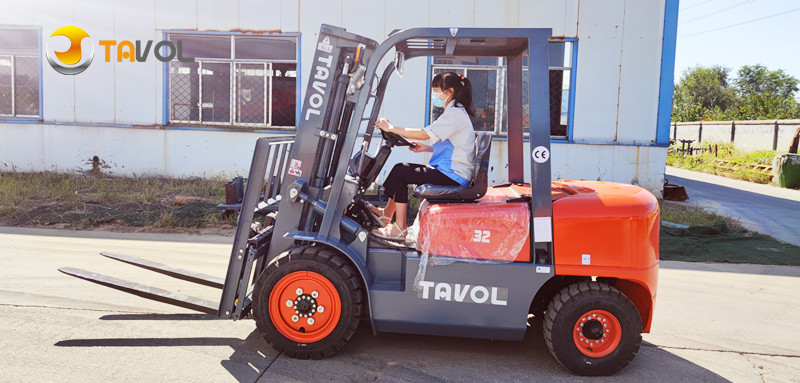

China Famous Factory New Design 3TON 3M Diesel Forklift Price for Sale
Tavol forklift adopts the streamline design that makes the appearance more pleasing,using domestic well-known engine brand which is powerful, dependable, easy to service ,and with low emissions and fuel consumption.Our forklift can reduce your cost,provide greater productivity and profitability for you.
Specification of Forklift
Model | CPC30 | ||
Rated Loading Capacity(kg) | 3000 | ||
Load center(mm) | 500 | ||
Drive Form | Diesel | ||
Max Lifting Speed(Full load)(mm/s) | 475 | ||
Max Driving Speed(Full/Empty load)(km/h) | 18/20 | ||
Fork Lifting Height(mm) | 3000 | ||
Mast Tilt Angle(Forward and Backward) | 6/12 | ||
Min. Turning Radius(mm) | 2530 | ||
Min. Ground Clearance(mm) | 135 | ||
Overall dimensions | Length(Including Fork)(mm) | 3970 | |
Width(mm) | 1230 | ||
Height (Door Frame Indented)(mm） | 2110 | ||

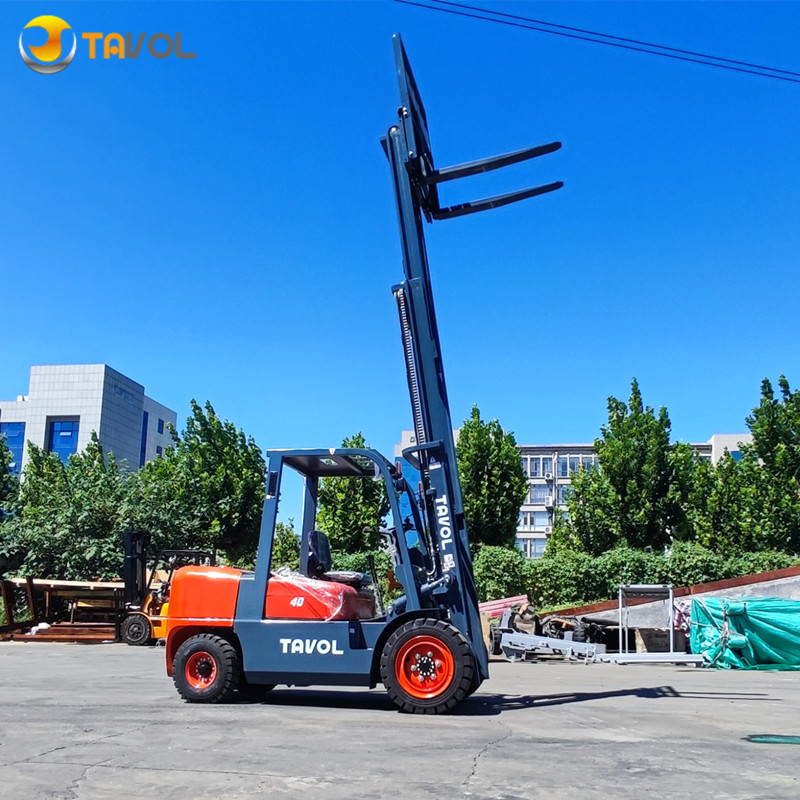

Max working Height (Door Frame Out Completely)(mm) | 4270 | ||
Height from ground to overhead guard(mm) | 2105 | ||
Front Overhang(mm) | 465 | ||
Wheel Base(mm) | 1775 | ||
Wheel distance | Front (mm) | 1000 | |
Back(mm) | 970 | ||
Tire | Front tire | 28*9-15 | |
Rear tire | 6.50-10 | ||
Self weight(kg) | 4250 | ||
Fork Width(mm) | 122 | ||
Fork Thickness(mm) | 45 | ||
Block Shelf Height | 1225 | ||
Standard Fork Length(mm) | 1220 | ||
Engine | Rated Power(kw) | 36.8 | |
Speed At Rated Power(rmp) | 2500 | ||
Maximum Torque(Nm) | 156 | ||
Speed At Maximum Torque(rpm) | 1700-1900 | ||
Transmission | Mechanical/Automatic | ||
Detail Image
New suspension adjustable seat More comfortable when working |
Operating Steering wheel and function operation bar Enlarge working space |
Full set of LED lightSave electricity, high strength, longer service life. |
Wear-resistant solid tireIncrease the ability of forklift to adopt different roads and working environment. |

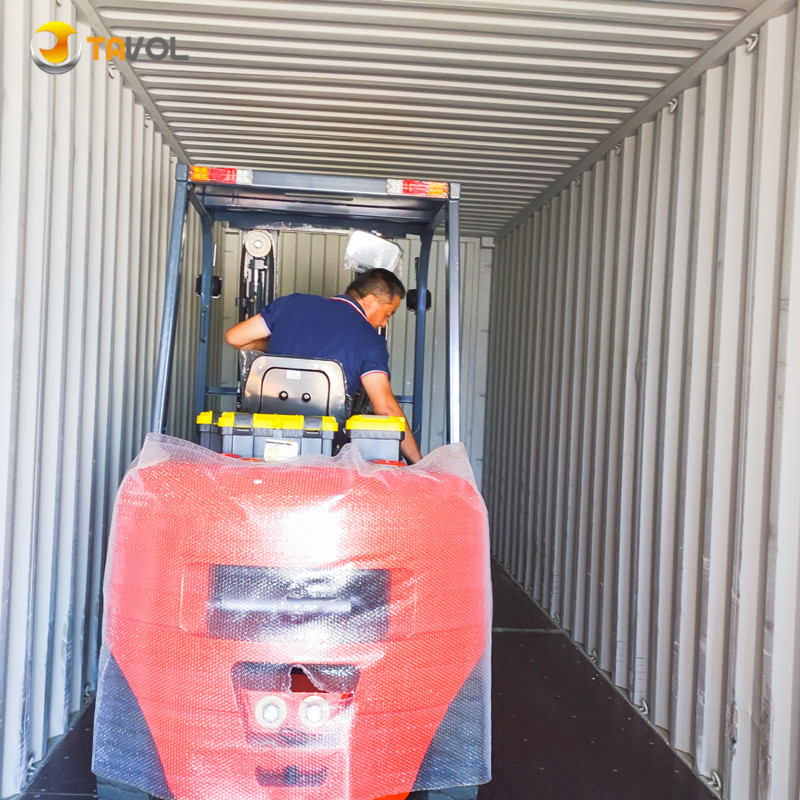

Package Information
Cetification
If you are interested in our forklift, welcome to contact us
