Product Description

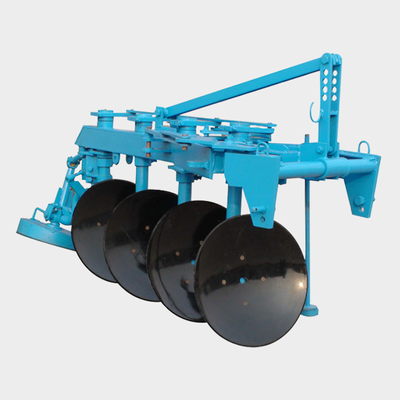

1LYQ(T)（Disc plough）
1LYQ(T) disc plough with horizontal pendulum structure, is applicable for the paddy-field, particularly, suit to high-yielding green manure land，rice and wheat land. It has strong ability to rake, small farming resistance and is easy to adjust, etc of agricultural production.
MAIN SPECIFICATIONS
| Model | Workingwidth （mm） | Weight（kg） | Working width（mm） | Matchedpower(hp) | No.of disc |
| 1LYQ(T)-220 | 40 | 150 | 20 | ≥18 | 2 |
| 1LYQ(T)-315 | 45 | 180 | 18 | ≥25 | 3 |
| 1LYQ(T)-320 | 60 | 190(200) | 20 | 25-40 | 3 |
| 1LYQ(T)-325 | 60 | 420(430) | 25 | ≥50 | 3 |
| 1LYQ(T)-330 | 90 | 470 | 30 | 40 | 3 |
| 1LYQ(T)-425 | 100 | 480(490) | 25 | 80-100 | 4 |
| 1LYQ(T)-525 | 125 | 530(560) | 25 | 100-120 | 5 |
| 1LYQ(T)-625 | 150 | 570(600) | 25 | 120-160 | 6 |
1LY(SX) (Two-way disc plough)
1LY(SX) disc plough is completely mounted with tractor. During operation, the disc is rotating to turn the soil, it is suitable for operating on the field with grasses, straw and stems of crops or plants, etc. It is good at cutting the grasses and straw and free from stopped by the grasses, soil or stones, etc. It is efficient during the work, it is good quality during operation , and is easy to adjust.
MAIN SPECIFICATIONS
| Model | Workingwidth （mm） | Weight （kg） | Working width （mm） | Matched power (hp) | No.of disc | Disc diameter（cm） |
| 1LY(SX)-325 | 75 | 520 | 25-30 | ≥50 | 3 | 66 |
| 1LY(SX)-425 | 100 | 600 | 25-30 | 80-100 | 4 | 66 |
| 1LY(SX)-525 | 125 | 680 | 25-30 | 100-120 | 5 | 66 |
| 1LY(SX)-625 | 150 | 780 | 25-30 | 120-150 | 6 | 66 |
