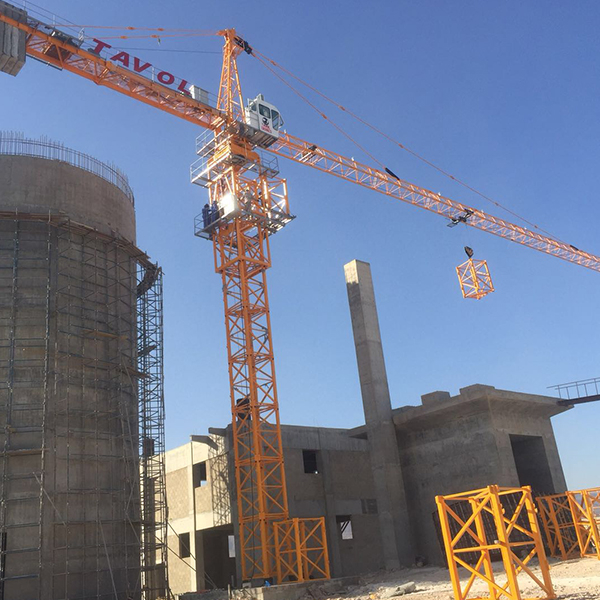

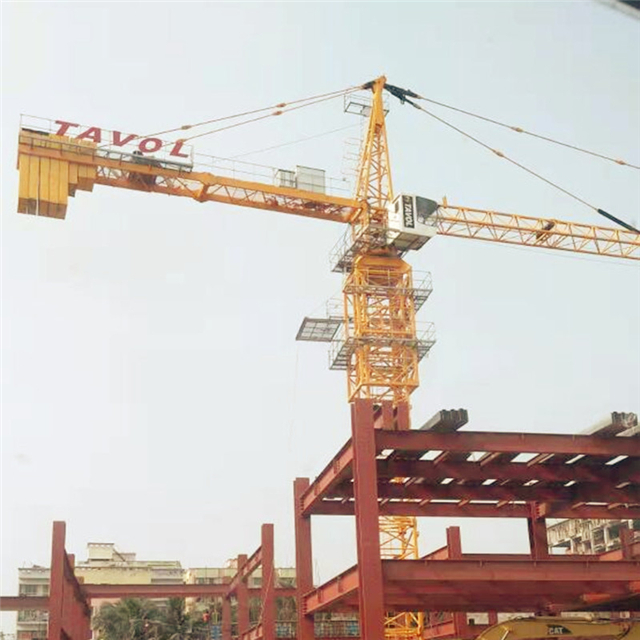

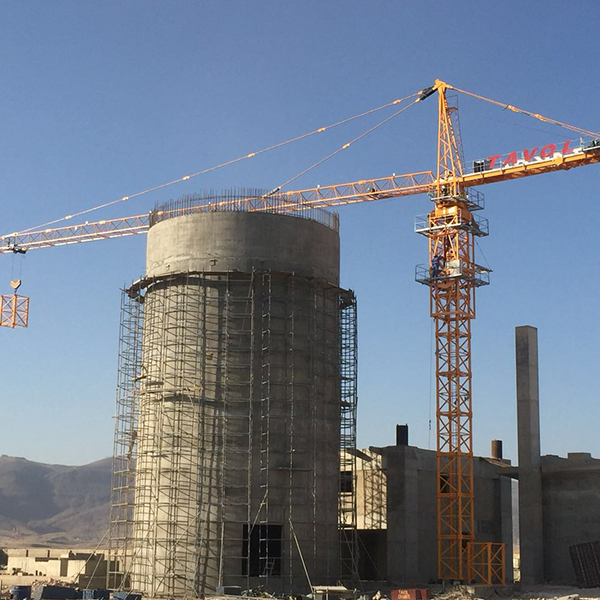

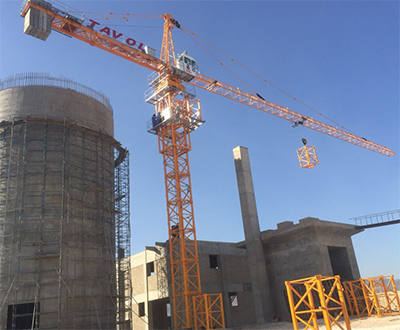

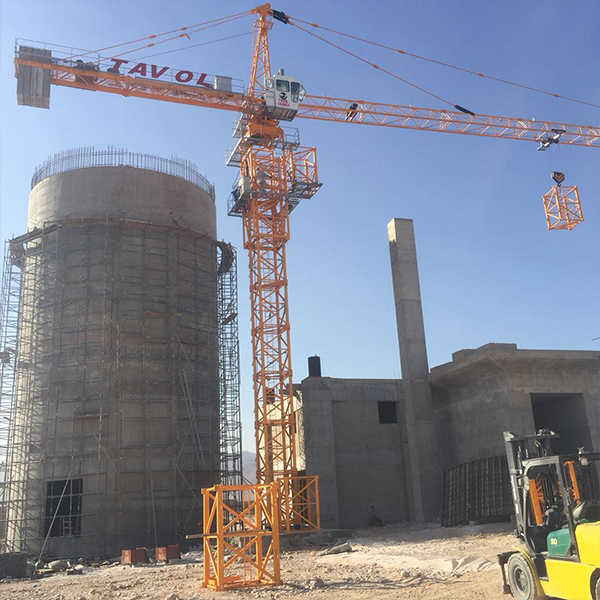

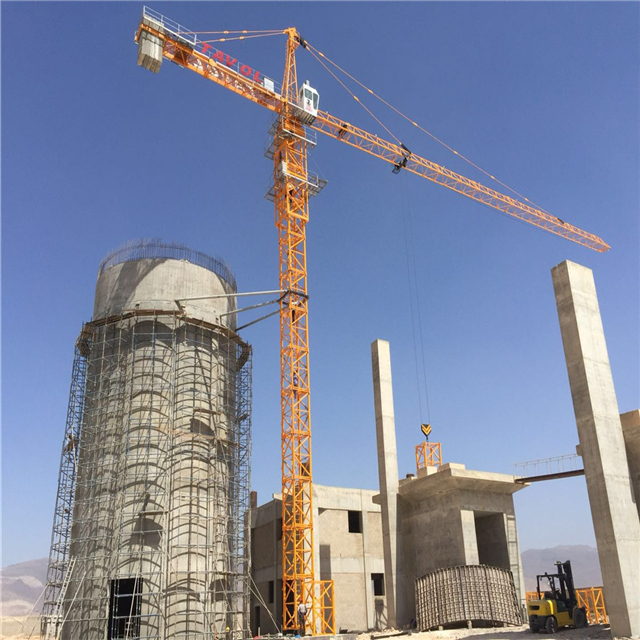

6Ton Self Erection Tower Crane of Hammer head tower

6T Self Erection Construction Tower Crane with 56m Working Radius is designed by our group company. The performance and technical specification is advanced in China, has reached the international advanced level, maximum work range is 56m, maximum lifting height is 140m.
max .load :
jib length:
free standing height:
max anchorage height:
mast size:
Availability:
Quantity:
  • 6Ton Self Erection Tower Crane of Hammer head tower
  • TAVOL
  • 84262000

Product Description

1-Product Description:

6T Self Erection Construction Tower Crane with 56m Working Radius is designed by our group company. The performance and technical specification is advanced in China, has reached the international advanced level, maximum work range is 56m, maximum lifting height is 140m.

6T Self Erection Construction Tower Crane with 56m Working Radius with flat lifting jib, trolley, self-rising upper slewing applications. The appearance of the product is international popular type, very beautiful, have been very popular among overseas.

The electric control system adopts the professional electric company, introduces electric components produced by foreign advanced technology, the longevity is 3~4 times more than domestic component , low trouble, easy to repair, reliably operation.
The driving cabinet is independent and located outside, has a good view, big inside space, creating good work ambient for operators, with advanced Linkage table to operate each mechanism action, easy to operate and repair.


2-Specification

Series

QTZ63

Standard Model

5610

Max. Lift Load

6t

Tip Load

1.0t

Free Standing Height

40m

Max. Anchorage Height

140m

Jib Length

56m

Mast size

1.6×1.6×2.5m



Lift Mechanism

Lifting Speed

(a=2)80/40/8.5 m/min

(a=4)40/20/4.25m/min

Lift motor

24/24/5.4kw

Trolley Mechanism

Trolley speed

48/24 m/min

Trolley Motor

2.2/3.3kw

Slewing Mechanism

Slewing speed

0.65r/min

Slew Motor

3.7kw*2

Jacking Mechanism

Jack climbing speed

0.58m/min

Jack climbing motor

7.5kw

Voltage

380V/50Hz/3P

Luxury Operate Cabin, Schneider Electric Parts


3-Safety Features

1

Torque limiter

Control torque, it will warns when lifting weights reach to 90% of rated lifting torque. When reach to 110% of the rated lifting torque, it will limit rising upwards and trolley.

2

Weight limiter

Control the maximum lifting capacity, lifting weight reach to 40% of the rated capacity, limit high-speed lifting; lifting weight reach to 110% of the rated capacity, limit  the lifting up

3

Height limiter

Control the lowest and highest extreme position of lifting hook

4

Slewing limiter

Control the extreme turns number of turn left and right

5

Amplitude limiter

Control trolley limit position of inward and outward

6

Overload protection

If the material is over the capacity, the crane will give a sharp warning for protection itself

7

Emergency brake

If the operation staff  encounter some emergency situation, we could start the emergency brake system to protection the related treasure

8

Control Method

Room control or remote control to avoid any injury to the operation staff

9

Main lifting motor

with thermal protection and currency protection

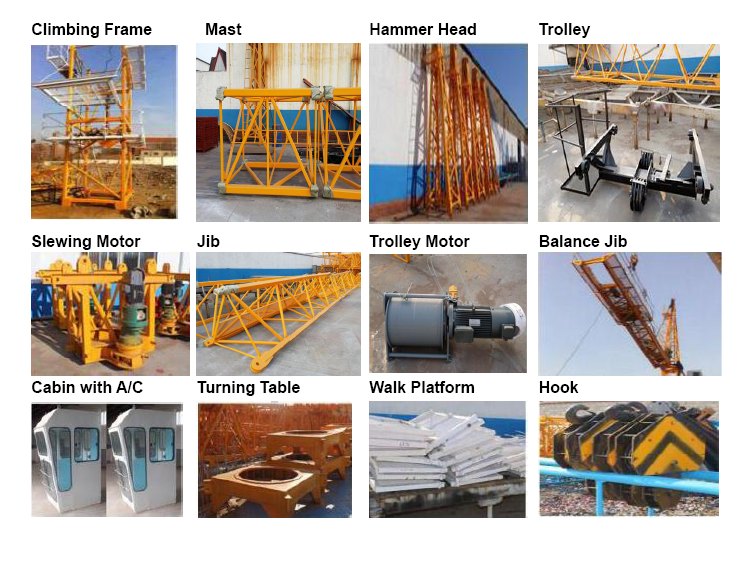

4-Product Details

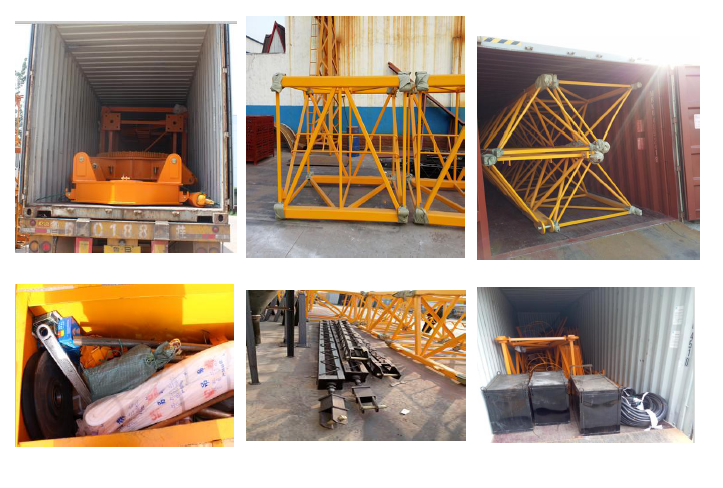

5-Delivery, shipping and serving

Packaging: High quality seaworthy package, usually by 40HC container.

 Delivery time: 25 working days after advance payment


6. FAQ:

 If you are interested in our 6Ton Self Erection Construction Tower Crane, please no hesitate to contact us with following parameters:

1. Max load capacity?

2. Tip load?

3. Jib length?

4. Hoist lifting height?
