CPC/CPCD
TAVOL
84272090
Product Description

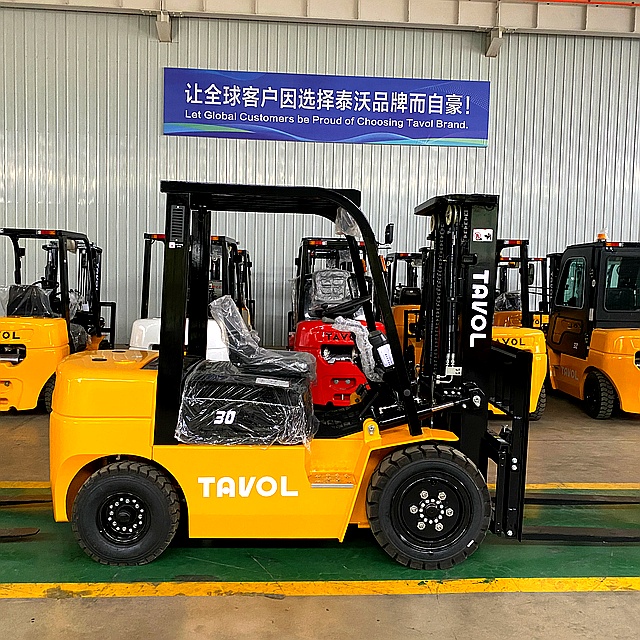

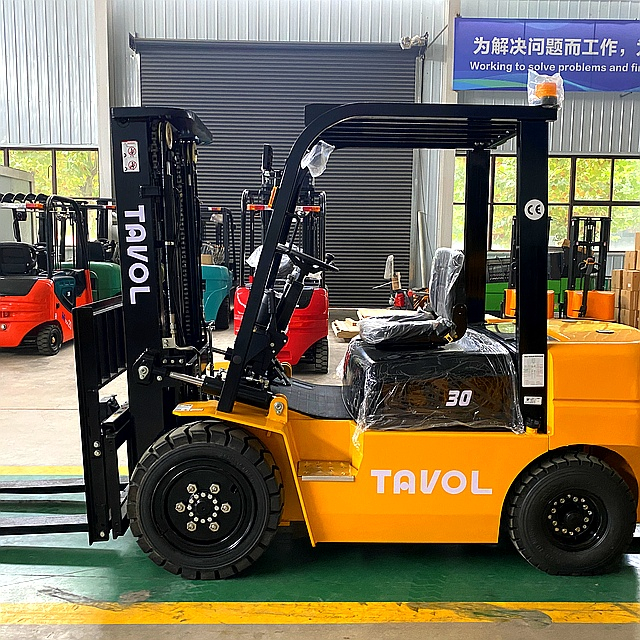

3 Ton Diesel Forklift CPCD30 - Tavol Group
Tavol forklift adopts the streamline design that makes the appearance more pleasing,using domestic well-known engine brand which is powerful, dependable, easy to service ,and with low emissions and fuel consumption.Our forklift can reduce your cost,provide greater productivity and profitability for you.

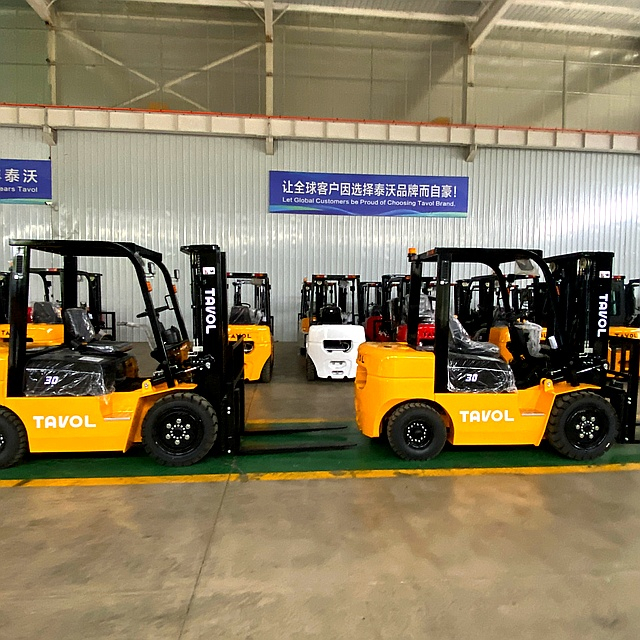

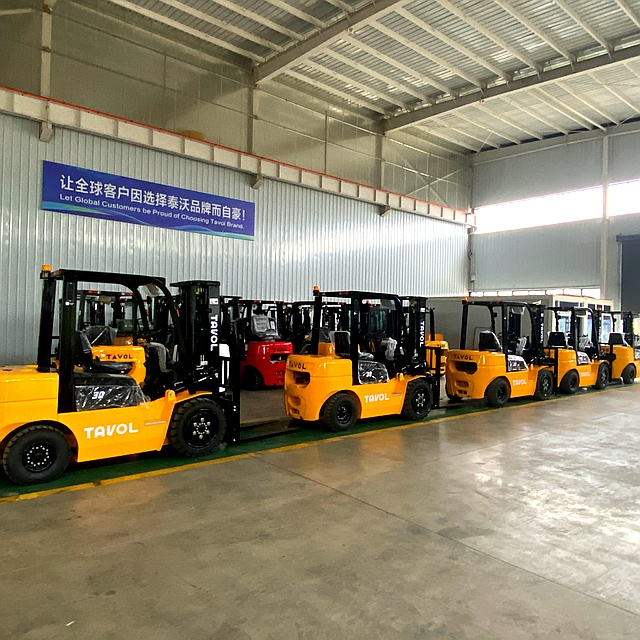

Reference Pictures:

Tavol Forklifts Advantages:
01- Premium Power & Shock Absorption (ID 20): Powered by world-class engines (Xinchai/Quanchai/ISUZU) and featuring a suspended cabin design that reduces operational vibration by 60%, significantly lowering driver fatigue.
02- Extreme Handling Efficiency (ID 9): Transforms "8 hours of manual labor into 8 minutes of operation." Our forklifts turn heavy manual lifting into a high-speed, fingertip-controlled art form.
03- World-Class Components (ID 22): Integrated with "heart" components from global leaders like Schneider, SKF, and CHINT, resulting in an extremely low failure rate under heavy-duty cycles.
Technical Specifications:
| Model | CPC20/CPCD20 | CPC25/CPCD25 | CPC32/CPCD32 | CPC36/CPCD36 | |
| Rated Loading Capacity(kg) | 2000 | 2500 | 3200 | 3600 | |
| Load Center Distance(mm) | 500 | 500 | 500 | 500 | |
| Drive Form | Diesel | Diesel | Diesel | Diesel | |
| Max Lifting Speed (Full load)(mm/h) | 400 | 400 | 475 | 450 | |
| Max Driving Speed (Empty/Full load)(km/h) | 17/19 | 17/19 | 18/20 | 18/20 | |
| Fork Lifting Height(mm) | 3000 | 3000 | 3000 | 3000 | |
| Mast Tilt Angle (Forward and Backward) | 6°/12° | 6°/12° | 6°/12° | 6°/12° | |
| Min. Turning Radius(mm) | 2450 | 2450 | 2530 | 2540 | |
| Min. Ground Clearance(mm) | 110 | 110 | 135 | 135 | |
| Length (Including Fork)(mm) | 3605 | 3605 | 3970 | 4000 | |
| Width(mm) | 1160 | 1160 | 1230 | 1230 | |
| Height(Door Frame Indented) | 2095 | 2095 | 2110 | 2110 | |
| Max working Height(mm)(Door Frame Out Completely) | 4080 | 4080 | 4270 | 4270 | |
| Height From Ground to Overhead Guard(mm) | 2095 | 2095 | 2105 | 2105 | |
| Front Overhang(mm) | 451 | 451 | 465 | 465 | |
| Wheel Base(mm) | 1640 | 1640 | 1775 | 1775 | |
| Front Wheel Track(mm) | 970 | 970 | 1000 | 1000 | |
| Rear Wheel Track(mm) | 970 | 970 | 970 | 970 | |
| Front Wheel Tyre | 7.00-12 | 7.00-12 | 28*9-15 | 25*9-15 | |
| Rear Wheel Tyre | 6.00-9 | 6.00-9 | 6.50-10 | 6.50-10 | |
| Self Weight(kg) | 3320 | 3600 | 4250/4290 | 4660/4700 | |
| Fork Width(mm) | 122 | 122 | 122 | 122 | |
| Fork Thickness(mm) | 40 | 40 | 45 | 45 | |
| Block Shelf Height | 1000 | 1000 | 1225 | 1225 | |
| Standard Fork Length(mm) | 1070 | 1070 | 1220 | 1220 | |
| Engine Rated Power(kw) | 36.8 | 36.8 | 36.8 | 36.8 | |
| Engine Speed At Rated Power (rmp) | 2500 | 2500 | 2500 | 2500 | |
| Engine Maximum Torque(Nm) | 157 | 157 | 156 | 156 | |
| Engine Speed At Maximum Torque(rpm) | 1800 | 1800 | 1700~1900 | 1700~1900 | |
| Variable speed form | Mechanical / Hydraulic | Mechanical / Hydraulic | Mechanical/ Hydraulic | Mechanical/ Hydraulic | |
About Tavol Company:
Heritage & Intelligent Manufacturing As the high-tech arm of Tavol Group, Tavol Technology has been a pioneer in industrial material handling since 2011.
Backed by 15 years of engineering excellence, we provide smart and efficient forklift solutions to over 10,000 clients worldwide, helping enterprises optimize their supply chains with precision and power.
Full-Series Forklift Portfolio We specialize in the development and manufacturing of a versatile forklift range:
Electric Forklifts (1T to 10T): Zero-emission, low-noise solutions perfect for modern indoor warehouses and cold-chain logistics.
Diesel Forklifts (1T to 20T): Heavy-duty powerhouses designed for high-intensity, continuous operations in manufacturing and ports.
Rough Terrain Forklifts: Engineered with superior ground clearance and specialized tires for complex outdoor construction and agricultural sites.
Why Choose Tavol Forklift ?
01- Unrivaled Power: 27% Gradeability Engineered to conquer steep slopes that stop other electric forklifts. We combine zero emissions with internal combustion-level climbing performance.
02- Global Compliance: Multi-Engine Options From high-value brands to Isuzu, Mitsubishi, and Kubota (Euro V/EPA). We provide 100% legal compliance and easy maintenance for any country.
03- Risk-Free Investment: 24-Month Warranty Backed by Stock Code 307262. With our 5-part transparent quotation and 2-year warranty, your capital is secure and your asset maintains high resale value.
Global Service & Certified Quality:
01- Certified Compliance: All Tavol equipment is fully CE and ISO certified, meeting the most stringent international safety and performance standards. We ensure your machinery is fully compliant with local regulations in over 120 countries, providing a "passport" for global entry.
02- Global Support Network: Our dedicated service network spans 64 countries, offering professional local technical support, troubleshooting, and maintenance services. You are never alone—wherever your project is, Tavol is there.
03- Rapid Spare Parts Supply: We maintain a comprehensive global supply chain to ensure that critical spare parts are delivered to your site within 48-72 hours, minimizing downtime and maximizing your operational productivity.
