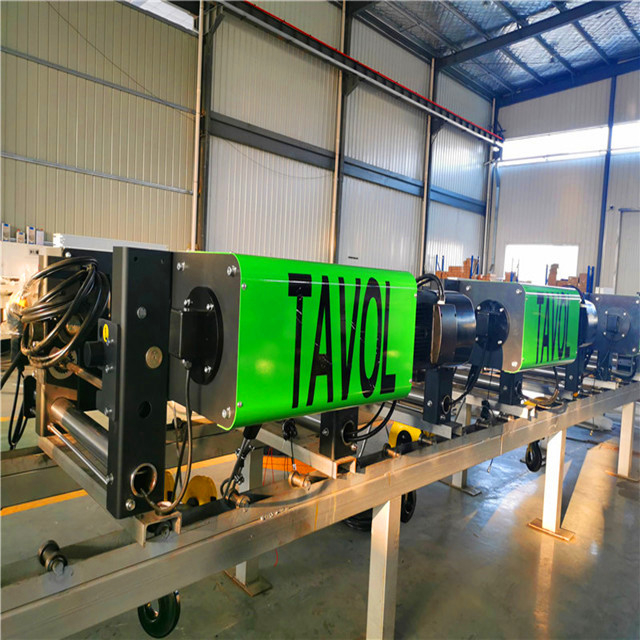

Wire Rope Electric Hoist
Tavol
036
Product Description
As the most widely used lifting device, wire rope electric hoist has always been the first choice for light and small lifting as the most commonly used equipment, then a suitable for various working conditions and environments, to meet the needs of various countries and regions of electric hoist, has become inevitable, as this, Tavol Brand European Design wire rope hoist was born, Heritage FEM. European standard design concept, do our best to create higher value for customers, truly save more raw materials for customers, reduce more maintenance costs, TAVOL services to promote industrial development.
Advantages of Tavol Euro Design Wire Rope Hoist
Full variable frequency drive - energy saving |
Protection class IP54- long life |
Noise as low as 65 decibels - mut |
High level of work - high efficiency |
Built-in precision planetary reducer drive - safe and efficient |
Selection table for single beam steel wire rope electric hoist
Rated Load Capacity t | Work duty FEM | Work Duty ISO | Lift Height m | Lift Speed M/min | Trolley speed M/min | ||
3.2T | 2m | M5 | 6/9/12/15/18 | 0-5.0 | 0-20 | ||
3.2T | 2m | M5 | 6/9/12/15/18 | 0-8.0 | 0-20 | ||
5T | 2m | M5 | 6/9/12/15/18 | 0-5.0 | 0-20 | ||
5T | 2m | M5 | 6/9/12/15/18 | 0-8.0 | 0-20 | ||
8T | 2m | M5 | 6/9/12/15/18 | 0-4.0 | 0-20 | ||
8T | 2m | M5 | 6/9/12/15/18 | 0-4.5 | 0-20 | ||
10T | 2m | M5 | 6/9/12/15/18 | 0-4.0 | 0-20 | ||
10T | 2m | M5 | 6/9/12/15/18 | 0-5.0 | 0-20 | ||
12.5T | 2m | M5 | 6/9/12/15/18 | 0-4.4 | 0-20 | ||
12.5T | 2m | M5 | 6/9/12/15/18 | 0-5.0 | 0-20 | ||
16T | 2m | M5 | 6/9/12/15/18 | 0-4.4 | 0-20 | ||
16T | 2m | M5 | 6/9/12/15/18 | 0-5.0 | 0-20 | ||
20T | 2m | M5 | 6/9/12/15/18 | 0-3.6 | 0-20 | ||
20T | 2m | M5 | 6/9/12/15/18 | 0-5.0 | 0-20 | ||
Our company

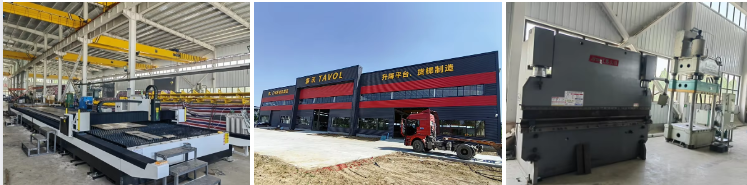

TAVOL has more than 60 professional experts and 12,000 square meters manufacturing factory. Our main innovative, high quality products and solutions include double girder crane, single girder crane, under hung bridge crane, overhead gantry crane, jib crane, overhead crane kits etc. The material handling capacity of our industrial crane ranges from 0.5 to more than 300 tons. Product innovation, quality assurance and customer satisfaction are our long term commitment to all our partners. All our products has been passed the CE certificates. Hope to be your partner.
IF you have inquiry for double girder overhead crane, please let us know the following information as below:
1. Lift capacity?
2. Lift height?
3. Span?
4. Travel length?
5. Power supply in your local? Is 380V/50Hz/3P?
6. Crane Long Travelling distance ?
contact Ms.Cherry Liu wechat/mobile/whatsapp:+008619862318428
