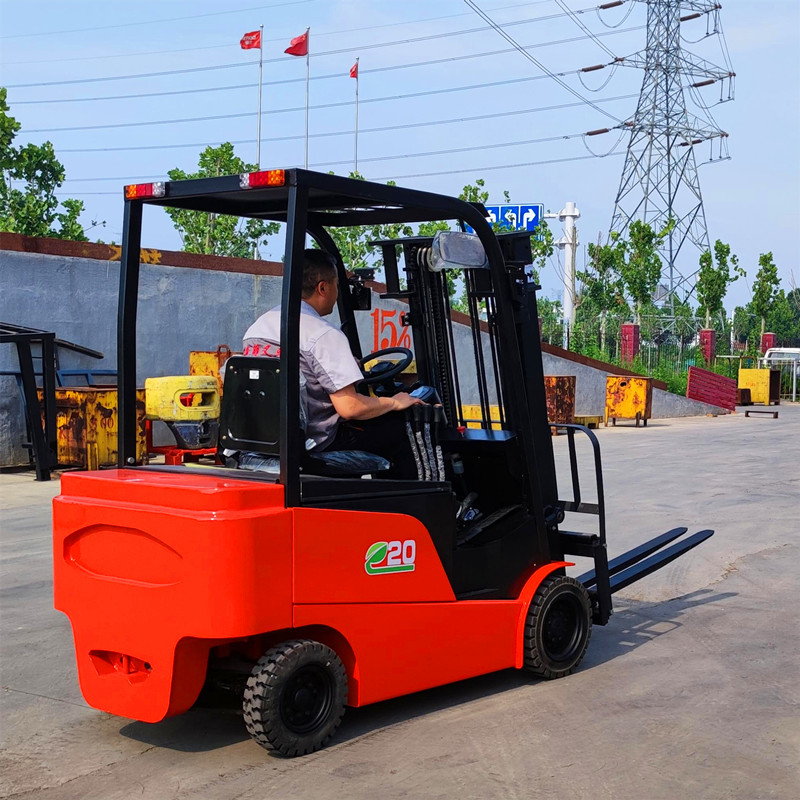

1ton 2ton 3ton 3.5ton Mini Electric Forklift with CE Certificate

Tavol Electric Forklift with more than 20 years production and export experience, loading capacity from 1ton to 3ton,standard lifting height is 3 meters duplex mast,also have 3 meters full free mast ,4 meters to 6 meters triplex mast for you choose.
Our standard battery is lead-acid battery,optional maintenance-free battery and lithium batteries. Standard battery after full charging can work continuously for 3-4 hours ,we also can customized battery capacity according to your working time.
Our electric forklift with fast delivery time(5-7 working days),accept OEM and ODM service.For more details ,welcome contact us.

max .load :	3.5ton
Lift height:	3m-6m
Load Capacity:	1ton-3.5ton
Color:	red or customized
Availability:

Quantity:



Inquire Add to Basket

Model:
FB
Brand:
TAVOL
Code:
84271090

Product Description

Product Description

PRODUCT INFORMATION

1ton 2ton 3ton 3.5ton Mini Electric Forklift with CE Certificate

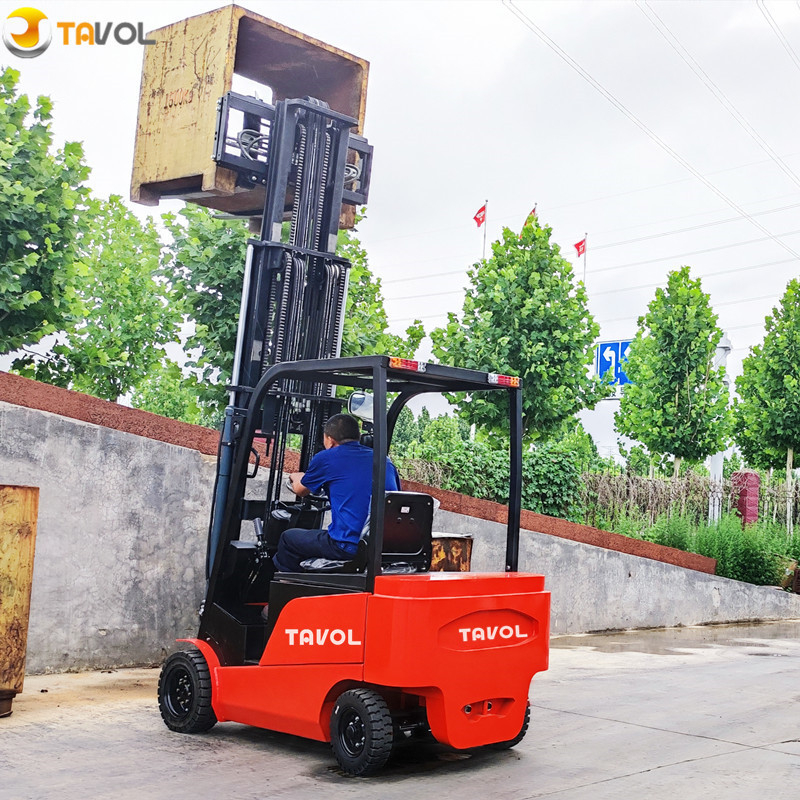

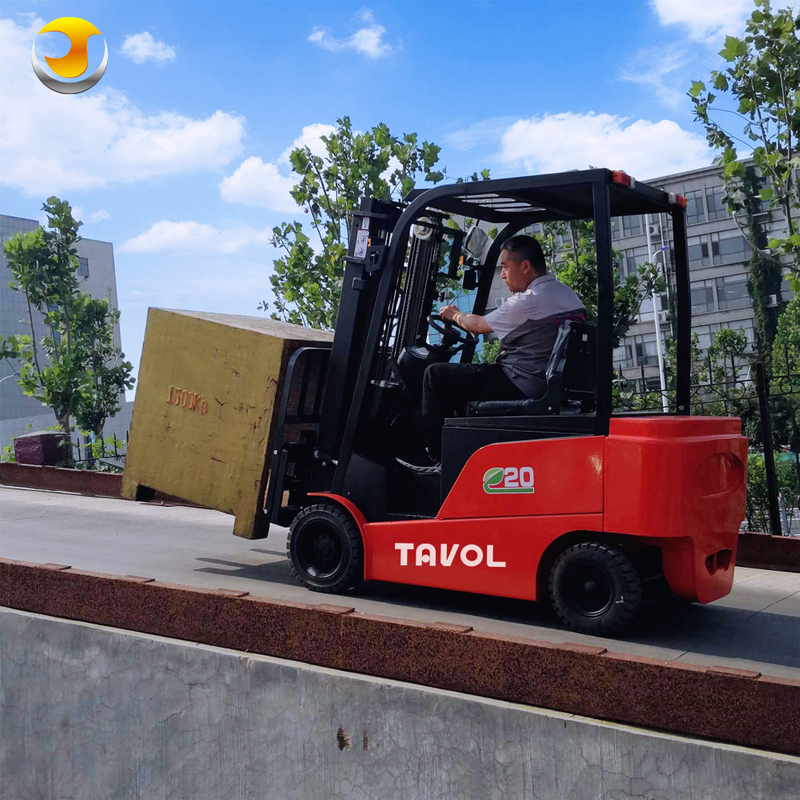

24 wu 9_副本

Electric forklifts are a quiet, environmentally friendly means of handling a wide range of unit loads including pallets,pallet boxes and stillages, giving you a comprehensive choice for any application.

Tavol forklift adopts the streamline design that makes the appearance more pleasing,using domestic well-known engine brand which is powerful, dependable, easy to service ,and with low emissions and fuel consumption.Our forklift can reduce your cost,provide greater productivity and profitability for you.

PRODUCT CONFIGURATION

 Durable Battery
 Work long time and meet different conditions


 Compound Chain
 Strong pull and easy lifting

 Solid Tire
 Adopt different roads and working environment.


 Hydraulic Steering
 Easy to operation

 Date Display
    See driving data clearly

 Electric Switch
  Convenient to turn the lights on and off


 Anti-Fatigue Seat.
 Feel comfortable when driving

 LED Light
 Save electricity, longer service life.

 Safe Overhead Guard
 Protect the driver

PRODUCT SPECIFICATIONS

Model		FB10	FB15	FB20	FB25
Rated Loading Capacity(kg)		1000	1500	2000	2500
Load center(mm)		400	500	500	500
Drive Form		Electric	Electric	Electric	Electric
Tyre type		Solid	Solid	Solid	Solid
Fork Lifting Height(mm)		3000	3000	3000	3000
Free lifting height(mm)		70	60	60	80
Mast Tilt Angle (Forward and Backward)(°)		5/10	5/10	5/10	6/12
Wheel Base(mm)		1260	1450	1450	1560
Wheel distance	Front (mm)	843	920	920	1008
Wheel distance	Back (mm)	869	928	928	981
Overall dimensions	Length (excluding Fork) (mm)	1852	2160	2160	2360
	Width(mm)	1000	1100	1100	1160
	Overhead guard height(mm)	1920	2040	2040	2190
	Height of mast lowered	1955	1933	1933	2030
Seat height		835	1036	1036	1154
Min. Turning Radius(mm)		1550	1650	1650	2180
Minimum right-angle stacking channel width(mm)		2350	2450	2450	2950
Min. Ground Clearance(mm)		106	106	106	122
Fork specifications(mm)		321001070	321001070	321001070	321001070
Distance between forks(mm)		200-944	200-1062	200-1063	244-1149
Cylinder bore(mm)		45	45	45	50
Gear pump displacement(ml/r)		14	14	14	16
Tyre model	Front (mm)	16x9-18	18x7-10	18x7-10	23x10-12
Tyre model	Rear (mm)	15x4 1/2-18	4.00-8	4.00-8	18x7-10
Performance parameter	Driving Speed (Empty/Full load) (km/h)	12/12	12/12	12/12	12/12
	Lifting Speed (Empty/Full load) (mm/h)	250/300	250/300	250/300	250/300
	Maximum climbing angle(%)	10/15	10/15	10/15	10/15
Motor	Driving Motor(kw)	3.7	5	6	8
	Maximum speed of driving motor(rad/min)	3800	3500	3500	3400
	Oil pump motor(kw)	3	4	5	9
	Maximum speed of oil pump motor (rad/min)	2000	2000	2000	2000
Battery	Voltage(V)	60	72	72	72
Battery	Capacity(Ah)	120(optional)	140(optional)	160(optional)	180(optional)
Charger	Input voltage(V)	220/380 (optional)	220/380 (optional)	220/380 (optional)	220/380 (optional)
	Current(A)	20	25	30	30
	Charging time（h）	8-10	8-10	8-10	8-10
Electric control current(V/A)		60/350	72/350	72/450	72/550
Steering system		Hydraulic	Hydraulic	Hydraulic	Hydraulic

PACKING&SHIPPING

One set is packed in plywood case,delivered by LCL.

 Two sets and more forklifts are packed in one container,all wheels fixed with
wooden corner block, tightened with frap rope,et

COMPANY PROFILE

What can we do for you?

We are manufacture,also group company,which has more than 20 years export experience.
All machines sold must be tested 3-5 times before shipment,100% quality assurance.
7*24 hours technical support by email,telephone or video online.
We provide free wearing parts, instructional videos, and provide pre-sale, in-sale and after-sale service support for life.
24 months warranty time.
