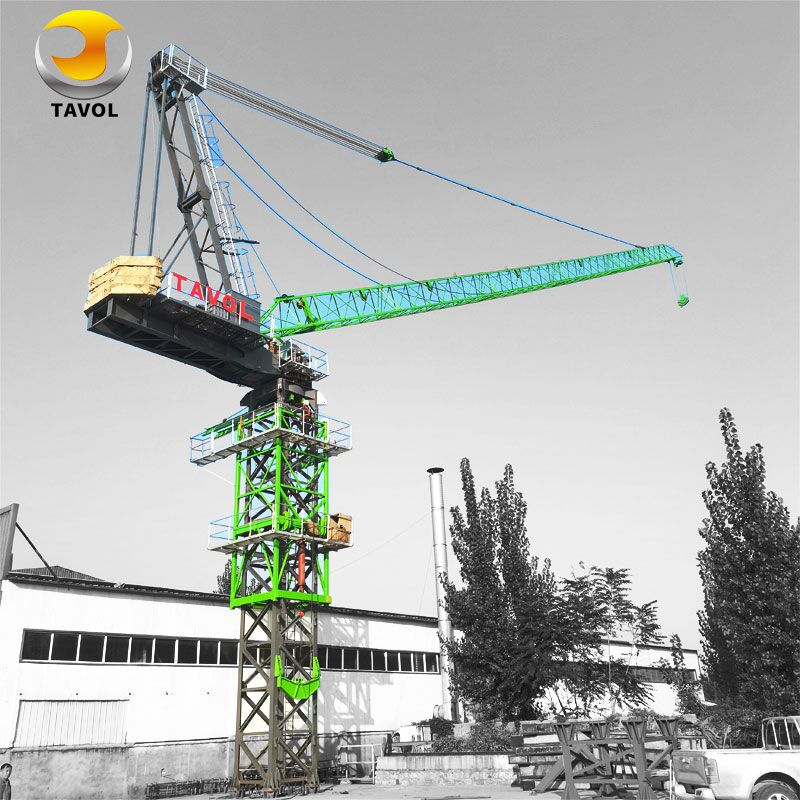

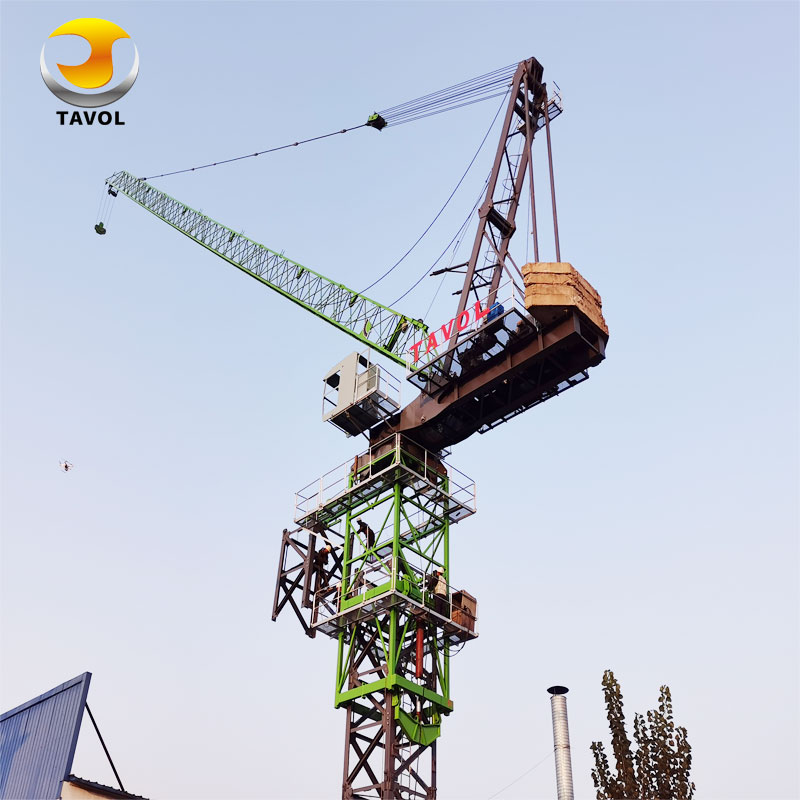

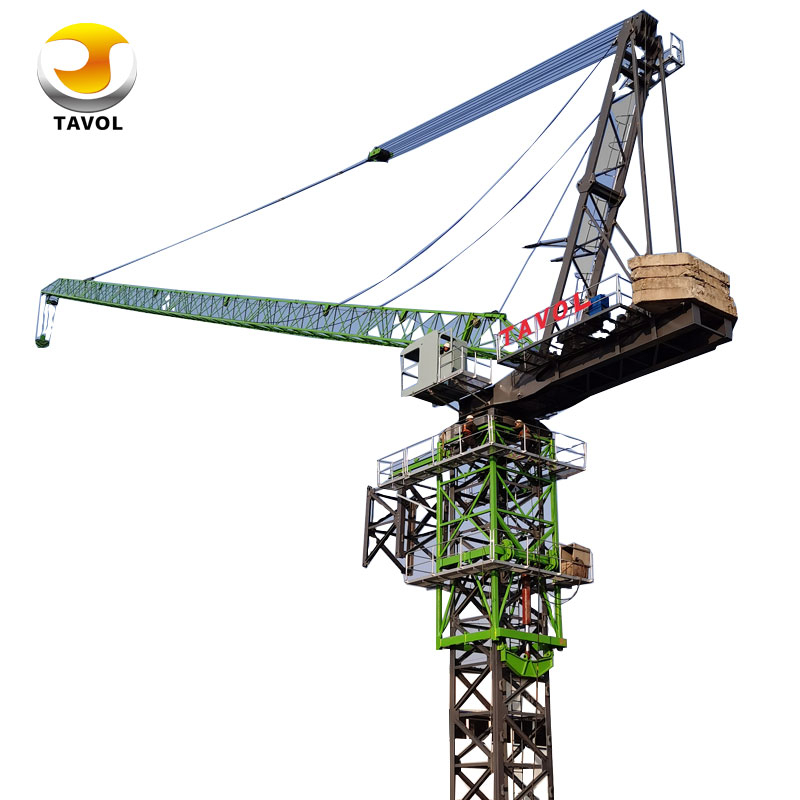

10ton Luffing Crane D125-5020 Tower Crane for Building

D125-5020 10t Luffing tower crane is designed by Tavol Cranes Group . The performance & technical specification is advanced in China, has reached the international advanced level.
Except the 10t tower crane , we can supply other capacity tower crane from 6t to 16t .
We have more than 30 years production history and more than 10 years of overseas business experience.
TAVOL brand tower crane have exported to many countries, such as USA, Germany, Brazil, UK, Bangladesh, Philippines, Sri Lanka,Vietnam , Maldives, Cambodia, Oman, Saudi Arabia, Sudan, Kenya, Guinea, Georgia, Indonesia, South America,etc.
max .load :
free standing height:
max anchorage height:
mast size:
jib length:
Availability:
Quantity:
  • 10ton Luffing Crane D125-5020 Tower Crane for Building
  • TAVOL
  • 84262000

Product Description

1- Product Description:

D125-5020 10t Luffing tower crane is designed by Tavol Cranes Group . The performance & technical specification is advanced in China, has reached the international advanced level.

Except the 10t tower crane , we can supply other capacity tower crane from 6t to 16t .
We have more than 30 years production history and more than 10 years of overseas business experience.


2- Characteristics

1.It is very convenient to mount and demount. The power unit, hoisting and luffing mechanism are installed on the turntable, which has reduced the requirements to installation.


2.The lifting, luffing and slewing mechanism are adopted with speed-regulating technology so that its running and operation is smoother and more reliable.

3.Large operating range, multi-style work and wide scope of application.

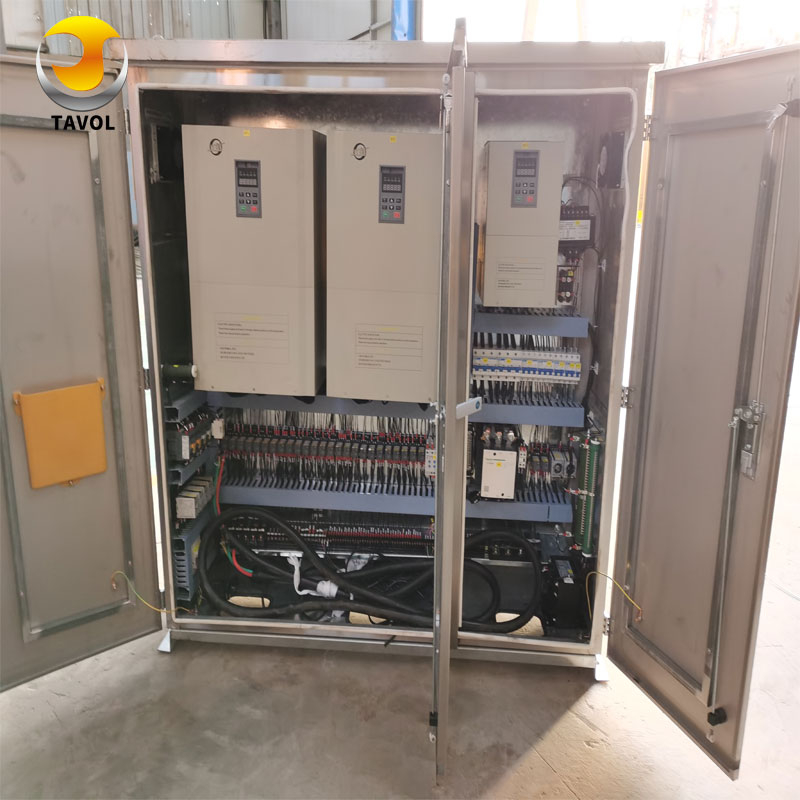

4.The electrical control elements are imported, which are reliable and have long life. The control system is highly automating so it is
convenient to operate and to keep all the functioning data of tower crane under control.

5.Complete safety devices.


2-Specification

Series
D125 luffing tower crane
Standard Model
5020
Max. Lift Load
10t
Tip Load
2.0t
Free Standing Height
37.5m
Lifting height
50m
Max. Anchorage Height
198m
Jib Length
50m
Mast size
2.0×2.0×3m pin type
Lifting Speed
4.6-92m/min
Slewing speed
0.75r/min
Jack climbing speed
0.5m/min

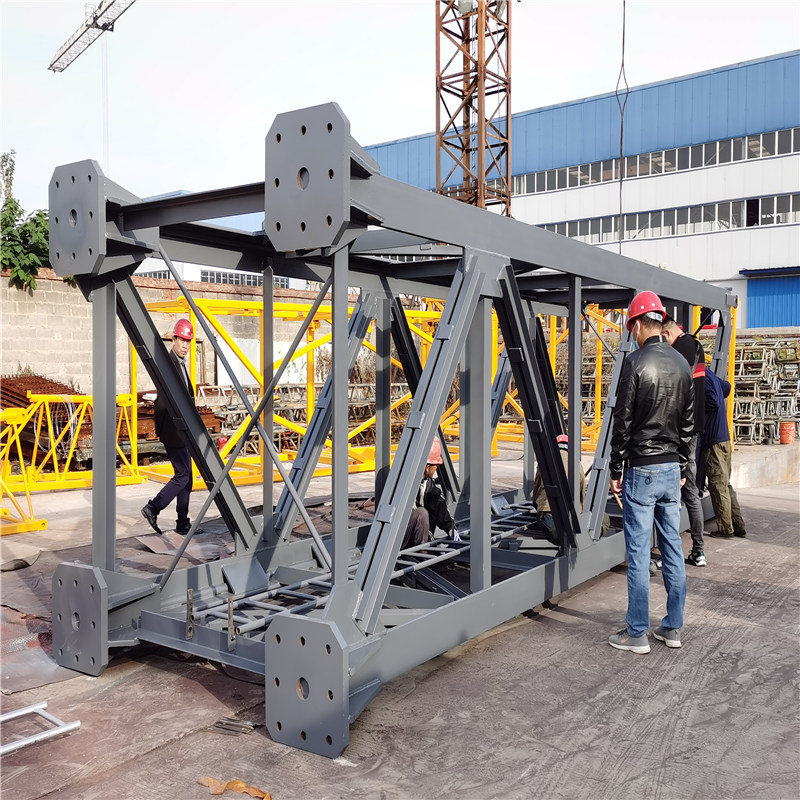

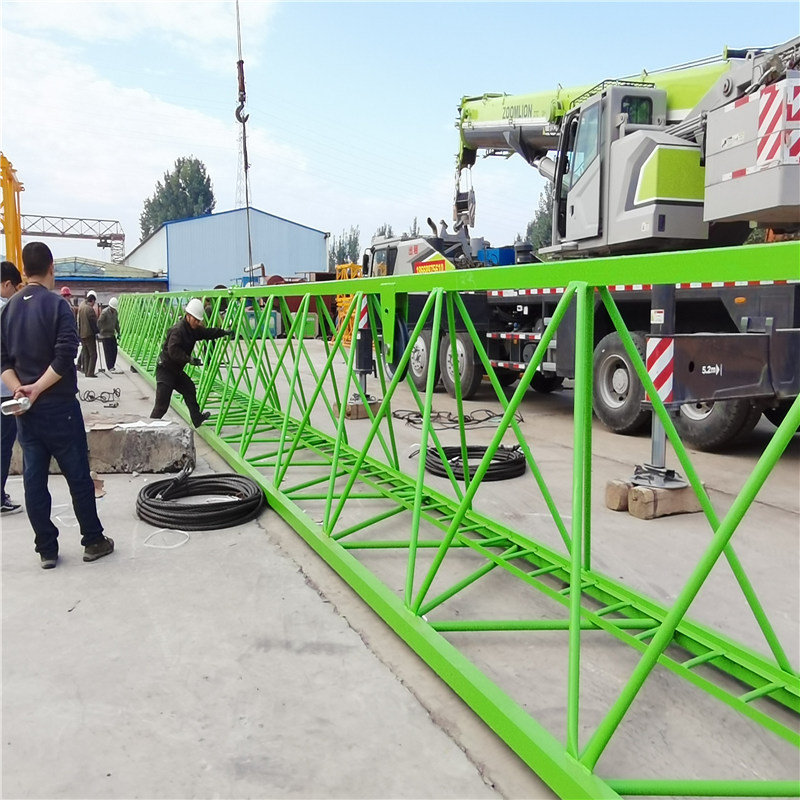

3-Product Details


4-Other model we supply


Model
Standard model
Jib length
(m)
Tip load
(ton)
Max.load(ton)
Free Standing  Height
(m)
Mast section size(m)
D120
4522
45
2.2
6
27
1.6x1.6x3
D120
4522
45
2.2
8
27
1.6x1.6x3
D125
5020
50
2.0
10
37.5
2×2×3
D160
5030
50
3.0
12
37.5
2×2×3
D260
6029
60
2.9
16
50
2×2×3


5-Product process:




5-Delivery, shipping and serving

Packaging: High quality seaworthy package, usually by 40HC container.

 Delivery time: 25 working days after advance payment




6. FAQ:

 If you are interested in our 16Ton Self Erection Construction Tower Crane, please no hesitate to contact us with following parameters:

1. Max load capacity?

2. Tip load?

3. Jib length?

4. Hoist lifting height?
