10 Ton Hammerhead Topkits Tower Cranes

QTZ125(TC6015) 10ton Tower Crane features stable operation and reliable management due to the adoption of various advanced technologies. This 10ton tower crane is configured with diverse devices like the hydraulic self-propelling device, frequency converting slewing device and a series of reliable safety devices like hoisting height limiter, slewing range limiter and multifunctional limiter. This 6015 construction tower crane is thus easy for this heavy lifting equipment to control the hoisting capacity, load moment and trolley traveling range more precisely. Additionally, multiple electric safety devices such as anemoscopes and obstacle lights effectively prevent the breaking of trolley axles and wire ropes.
jib length:
Color:
max .load :
free standing height:
max anchorage height:
Availability:
Quantity:
  • QTZ125(TC6015) 10ton Tower Crane of Building Construction
  • TAVOL
  • 84262000

Product Description

10 Ton Hammerhead Topkits Tower Cranes

Product Description:

QTZ125(TC6015) 10ton Tower Crane features stable operation and reliable management due to the adoption of various advanced technologies. This 10ton tower crane is configured with diverse devices like the hydraulic self-propelling device, frequency converting slewing device and a series of reliable safety devices like hoisting height limiter, slewing range limiter and multifunctional limiter. This 6015 construction tower crane is thus easy for this heavy lifting equipment to control the hoisting capacity, load moment and trolley traveling range more precisely. Additionally, multiple electric safety devices such as anemoscopes and obstacle lights effectively prevent the breaking of trolley axles and wire ropes.

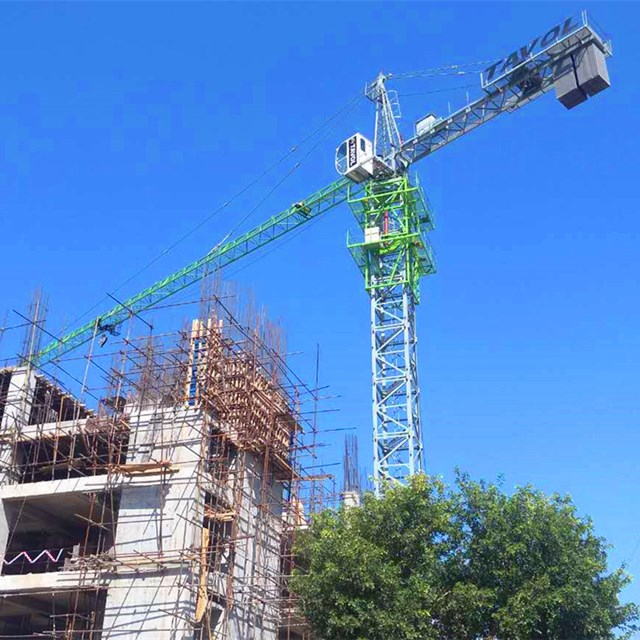

tower crane in pakistan

Technical Specification

Series

QTZ125

Standard Model

6015

Max. Lift Load

10t

Tip Load

1.5t

Free Standing Height

50m

Max. Anchorage Height

180m

Jib Length

60m

Mast size

1.833×1.833×2.5m



Lift Mechanism

Lifting Speed

(a=2)0-100 m/min

(a=4)0-50m/min

Lift motor

37kw

Trolley Mechanism

Trolley speed

40 m/min

Trolley Motor

5.5kw

Slewing Mechanism

Slewing speed

0.65r/min

Slew Motor

7.5kw*2

Jacking Mechanism

Jack climbing speed

0.58m/min

Jack climbing motor

7.5kw

Voltage

380V/50Hz/3P

Luxury Operate Cabin, Schneider Electric Parts

Tower Crane


Product Feature:

The raw material is the basis of product, is the first step to ensure the quality of our crane directly from Baosteel, Wuhan Iron and steel and other large steel orders batch purchase of steel, improve the safety of products.

Electric mechanism

The French Schneider contactor, power and phase sequence protection, motor overload-protection is complete, to ensure the safety of electrical system in normal operation.

The hoisting mechanism

The brake wheel with steel material, the surface hardening treatment, cylindrical grinding and strictly control thebeating degree. At the same time the dynamic balance test, each lifting mechanism are no load, static load, dynamic load test, to ensure the safe, durable, reliable brake.

Trolley mechanism

The amplitude of planetary gear reducer with brake motor maintenance free, cone, compact and reasonable structure, powerful car balance, high durability, low failure rate.

Slewing mechanism

Rotary motor winding motor, hydraulic transmission, stable rotation.

Control device

The cab adopts humanized design, convenient and comfortable, easy and safe driving.

Quality detection

Strict quality testing system can improve the safety and effective detection from the tensile testing of raw materialstesting, weld to the appearance of welding quality, the important processes and procedures will be quality inspection; at the same time the forearm, tower caps, and other key parts of the turntable assembly debugging, to ensure that each product safety and stability.

Protection device

Complete protection device can effectively improve safety; weight limiter to introduce foreign advanced pull ringtype structure, with the bow plate mechanical torque, able to adapt to the harsh outdoor environment, ensure thecrane limiter is sensitive and reliable, not to regulate the use of the accident.

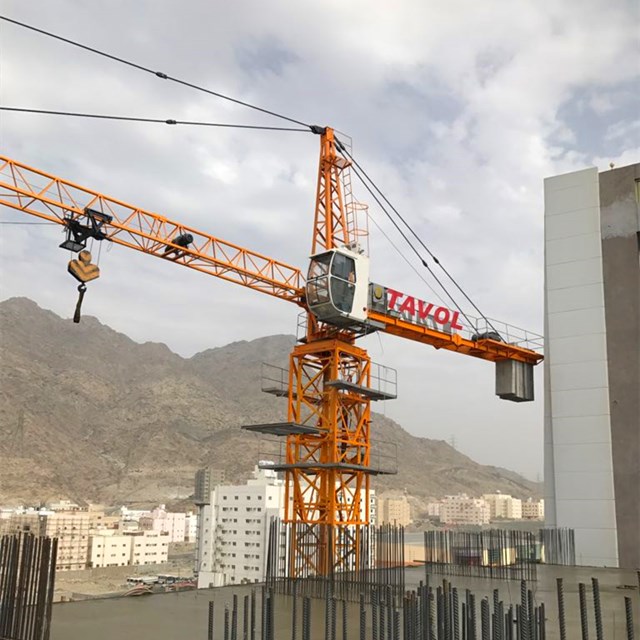

tower crane in saudi arabia


Advantages of Tavol Brand :

01- More than 20 years of production experience, More than 10 years of tower crane sales experience in the international market,product quality and after service is guaranteed.

02- Adopts ISO9001 international standards from product design to manufacturing process to ensure that product design information is complete, correct, and unified, and fully meets user requirements.

03- There is a gap in the core configuration,like The motor brand ,electrics brand , and key device etc.

04- There is a gap in the production process,

Tavol has more advanced processing technology and manufacturing equipment.

05- The gap in raw materials, All incoming raw materials are tested by carbon and sulfur analysis instruments.

06- All components undergo more rigorous testing before leaving the factory.

07- There is a gap between pre-sales, in-sale and after-sales service, Tavol is more professional.

08- The employee's working time in the company shows the stability of the company, Most of the employees have worked in the company for more than 10 years.


tower crane installation

FAQ:

 If you are interested in our 8Ton Self Erection Construction Tower Crane, please no hesitate to contact us with following parameters:

1. Max load capacity?

2. Tip load?

3. Jib length?

4. Hoist lifting height?
