Wire Rope Electric Hoist

Wire Rope Electric Hoist is a device used for lifting or lowering a load by means of a drum which wire rope wraps. It is operated electrically driven and use wire rope as its lifting medium.
Availability:
Quantity:
  • Wire Rope Electric Hoist
  • Tavol
  • 034

Product Description

5T 10T 16T Wire Rope Electric Hoist for Overhead Crane and Gantry Crane

Electric Hoist is the Core components of Overhead Cranes, As the most widely used lifting device,

wire rope electric hoist has always been the first choice for light and small lifting as the most commonly used equipment, then a suitable for various working conditions and environments, to meet the needs of various countries and regions of electric hoist, has become inevitable



1.Prodcut Introduction:

Wire Rope Electric Hoist is a device used for lifting or lowering a load by means of a drum which wire rope wraps. It is operated electrically driven and use wire rope as its lifting medium.



It is installed in a single beam crane, linear, curve strander beams;

also used together with double beam, gourd gantry crane, jib crane;

welcomed by industrial and mining enterprises, railways, docks, warehouses.

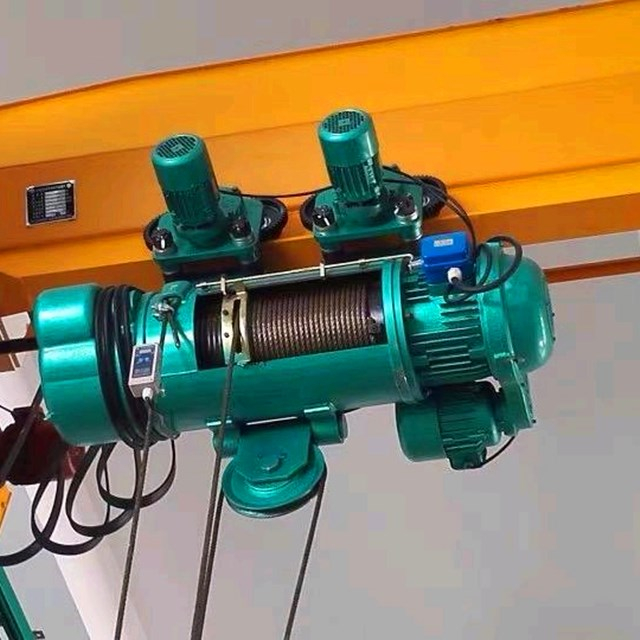

CD hoist



2.Product Features:

Three models of wire rope electric hoist CD, MD and HC are available in our facotry.

1. Model CD, MD and HC Electric Wire rope Hoist is a small-sized lifting equipment, which can be mounted on single beam bridge crane, gantry crane and jib crane. With slight modification, it can also be used as a winch. It is widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.

2. Model CD Electric Wire rope Hoist has only one normal lifting speed, which can satisfy normal application. Model MD Electric Wire rope Hoist provides two speeds: normal speed and low speed. At a low speed, it can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc. We call the electric hoist whose lifting capacity is over 20 tons HC model.


3.Product Specification:

SI

Descriptions

Reference Data

1

Lift capacity

0.5t, 1t, 2t, 3t, 5t, 10t, 15t, 20t, 32t, 50t

2

Lifting height

6-30M

3

Work duty

A3

4

Control method

Pendent control

5

Motors

Chinese Nanjing brand

6

Hook

Forged hook with safety lock

7

Lifting speed

0-8M/Min

8

Cross travelling speed

0-20M/Min

9

Variable frequency drives

Optional



4.Product Application:

Normally wire rope electric hoist is mounted on single beam bridge crane, gantry crane and jib crane as the lifting mechasim and cross travelling mechanism; Also wire rope electric hoist can be fixed on a trolley to be treated as the lifting mechasim and cross travelling mechasim of the double girder overhead crane and double girder gantry crane.




5.Product Package:

Normally electric wire rope hoist is packed by plywood box and shipped by container.
