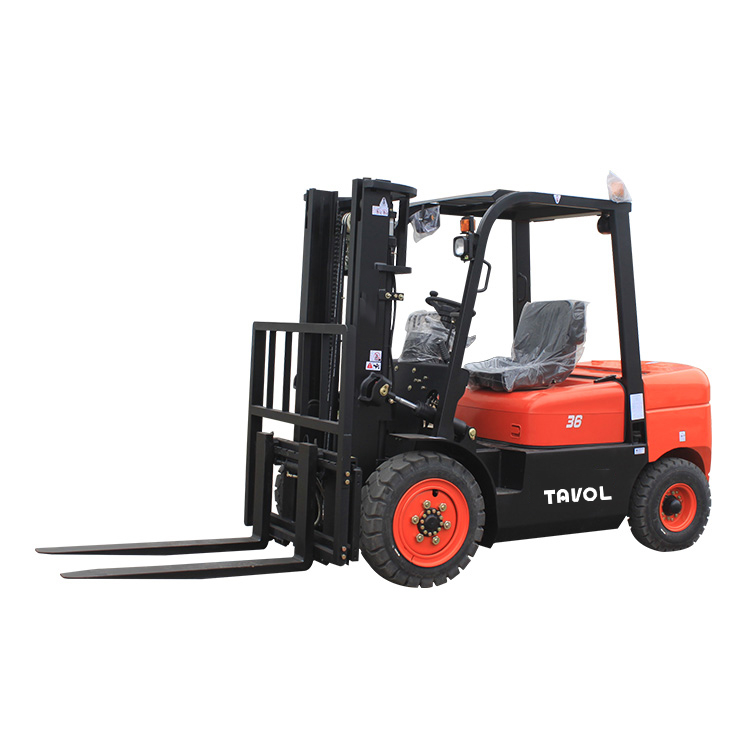

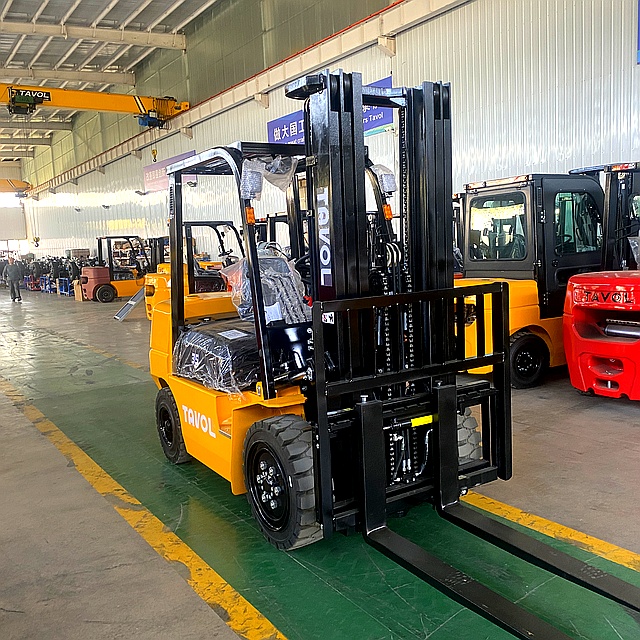

CPC36/CPCD36
Tavol
Product Description
Tavol is an International Madrid Brand, with ISO9001 and CE certificate,
Manufacture and Sales Diesel Forklift with Capacity 2ton, 3ton, 3.5ton and 5tons,
Electric Forklift with Capacity 1ton, 1.5ton and 2ton.
General Description
Condition: New
Place of Origin: Shandong, China
Brand Name: TAVOL
Power Souce: Diesel Engine
Fork Length: 1220mm
Fork Width: 122mm
Overall Dimensions: 4000*1230*2110mm
Certification: CE/ISO9001/TUV
Warranty: 1 Year
After-sales Service Provided, Online support
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Core Components: Motor, Gearbox, Engine
Loading Capacity: 3600kg
Color: Orange or Customized
Fork Size:1220*122*45mm
Wheels: Soild Tyre
Steering type:Wheel Steering
Drive mode: Diesel Oil
Technical Specifications
Model | CPC36/CPCD36 | |
Rated lifting weight (kg) | 3600 | |
Load center mm | 500 | |
Power type | diesel oil | |
Maximum hoisting speed mm/s | 400 | |
Maximum running speed (full/no load) km/h | 18/20 | |
Lifting height of cargo fork mm | 3000 | |
Gantry Angle (forward/backward) (°) | 6°/12° | |
Minimum turning radius mm | 2650 | |
Minimum ground clearance mm | 135 | |
Overall dimensions | The full length (including fork) mm | 4040 |
Full width mm | 1230 | |
Full height (door frame indented) mm | 2110 | |
Working maximum height (full extension of the door frame) mm | 4270 | |
Height from the ground to the roof guard is mm | 2110 | |
Before hanging from the mm | 465 | |
The wheelbase mm | 1800 | |
Wheel base | The front wheel mm | 1000 |
The rear wheel mm | 970 | |
tire | The front wheel | 28*9-15 |
The rear wheel mm | 6.50-10 | |
Kg weight | 4450 | |
Fork width mm | 122 | |
Thickness of fork mm | 45 | |
Block shelf height mm | 1225 | |
Standard fork length mm | 1220 | |
The engine | Model | Chinese emission standard at phase Ⅲ |
Rated power kW | 36.8 | |
RPM at rated power | 2500 | |
Maximum torque NM | 174 | |
Maximum torque RPM | 1800 | |
Variable speed form | Mechanical/hydraulic | |
Optional configuration
3.6 tons mechanical and hydraulic diesel forklifts
1. Mechanical forklift and hydraulic forklift are optional.
2. Optional engine: Japanese Isuzu engine, or Yuma engine
3. according to customer requirements to make different height of the door frame
Level 2 3.3m, 3.5m, 4m, 4.5m, 5m
Level 3:4.5m, 5m, 6m and 7.3m
4. Customize forks of different lengths according to customer's requirements
1.22 meters forks, 1.37 meters forks, 1.52 meters forks
5. Optional side shifter, full free lifting, plastic panel, rear light headlights, cab, high exhaust and various forklift accessories.
