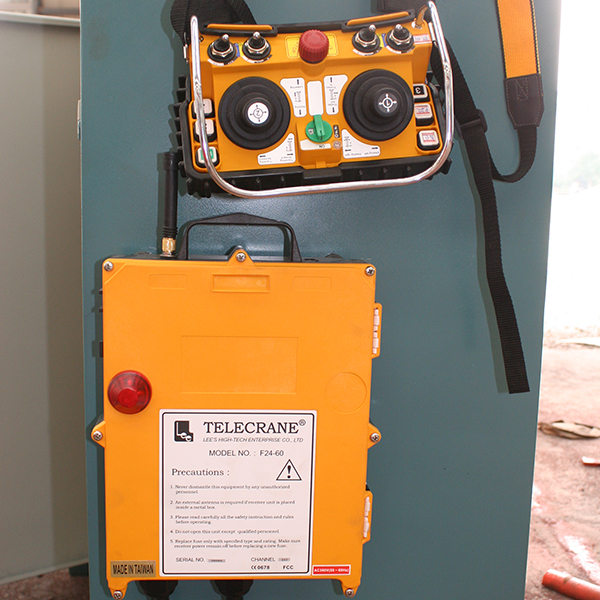

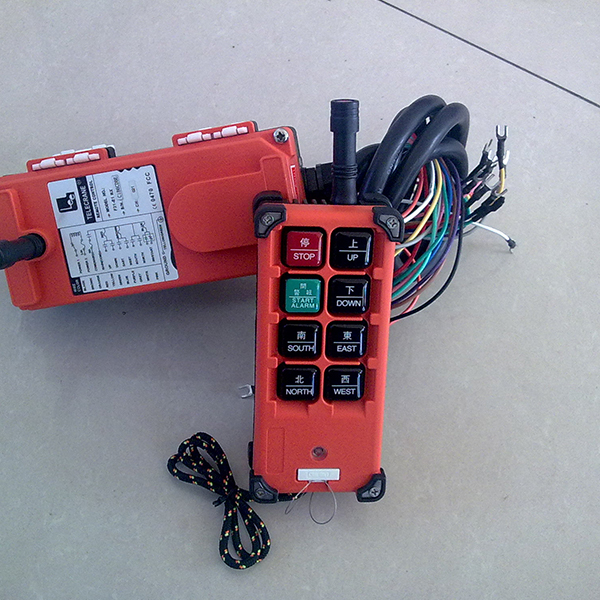

Crane Components of Remote Control System

Temperature

-35°C ~ 80°C

Unique codes

Over 4.3 billion unique ID code

Receiver power

48/220V/380V/110V AC or 12V~24V DC

Transmitter  power

AA alkaline batteries X2

6V DC (2 AA batteries last up to 4 months)

Ten operation single -double step buttons and one rotary stop button, 1start button

Set the internal functions by computer interface

Spare key can be set to start, acceleration, toggle switch, general or other functions

Output contact capacity

5A sealed relay output

(AC 250V/10A relays, 5A fuse contacts).

F24-10S

(2 single speed)Applications

Double-hook,

double-speed/multi-speed industrial remote control

F24-10D

(2 double speed) Applications

Standard Configuration

One transmitter

One receiver

Receiver with 1 meter cable

Operation and maintain manual
