column mounted jib cranes

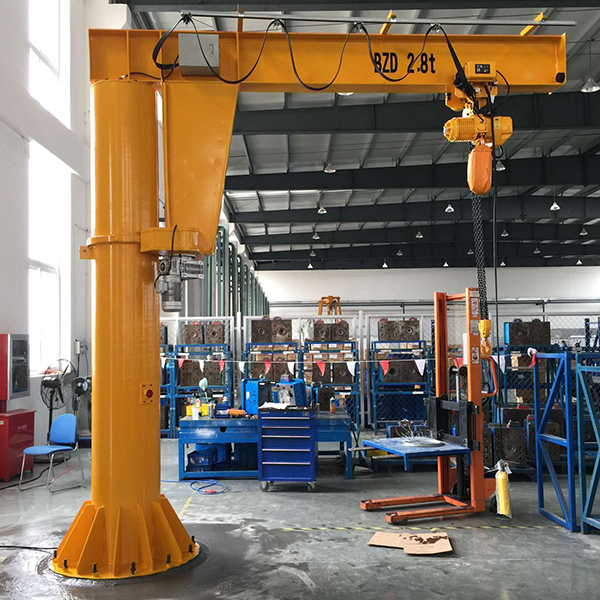

Overhead Jib Crane BZ Model Column Mounted 360 Slewing for factory and workshop
overhead jib crane capacity: BZ500kg - BZ10 ton
overhead jib length:3m- 10m
Column Total height:3m - 12m
Availability:
Quantity:
  • column mounted jib cranes
  • Tavol
  • 047

Product Description

A type of crane, which has a horizontal member (known as jib or boom) that supports a moveable hoist fixed to a floor-mounted pillar is known as jib crane. Jib Cranes lift and transport materials in semi circles (180 degrees) or full circles (360 degrees) around their support structure.





01- Overhead Jib Crane Structure:



A type of crane, which has a horizontal member (known as jib or boom) that supports a moveable hoist fixed to a floor-mounted pillar is known as jib crane. Jib Cranes lift and transport materials in semi circles (180 degrees) or full circles (360 degrees) around their support structure.



BZ model jib crane is composed by the vertical shaft, revolving arm, rotating shaft, hoist etc. The bottom of the vertical shaft is fixed on the concrete base.



Product Features:

1. Ergonomic design;

2. Increase worker productivity;

3. Reduce workplace injuries;

4. Improve safety.

According to hoist type, it separate with two type:

1- BZ Jib Crane with wire rope hoist


2- BZ jib crane with electric chain hoist.




02- Overhead Jib Crane Specification:



SI

Descriptions

Reference Data

1

Jib Crane capacity

500kg, 1 ton, 2 ton, 3 ton, 5 ton, 10 ton

2

Jib length

3m -10m

3

Column height

3m - 12m

4

Jib crane Work duty

A3/M3

5

Control method

Pendent control

6

Jib crane Motors

Chinese Nanjing brand

7

Jib Crane Hook

Forged hook with safety lock

8

Jib crane Lifting speed

0-8M/Min

9

Trolley speed

0-20M/Min

10

Rotation speed

0.8r/min

10

Slewing degree

180 or 360 degrees







03- overhead jib crane Application:

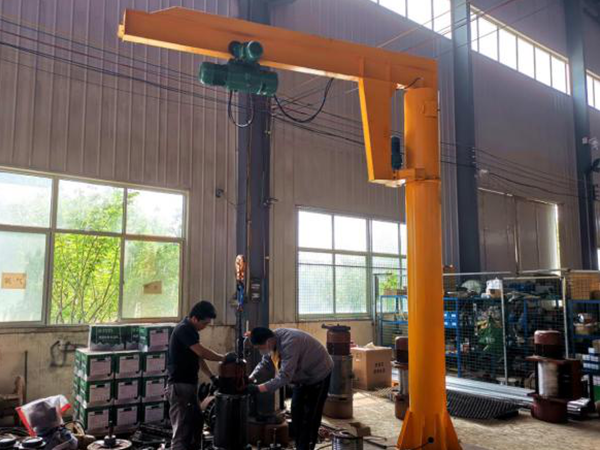

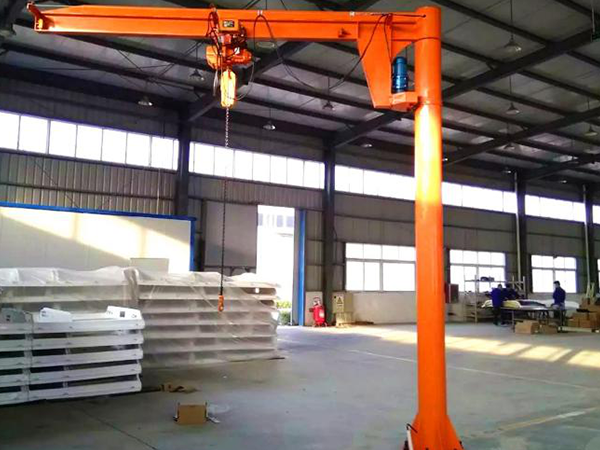

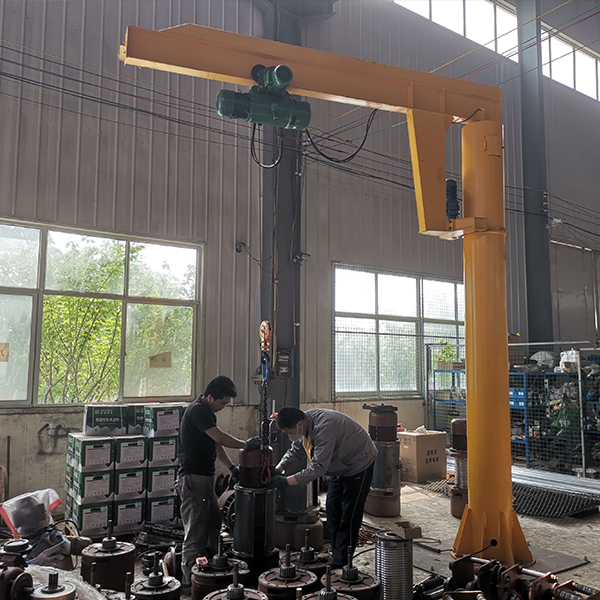

BZ model jib crane can be installed virtually anywhere including indoors or outdoors.

Freestanding jib systems can be used underneath large bridge crane systems, or in open areas where they can support individual work cells.

They can be used outdoors at marinas or loading docks, and indoors for machining and assembly operations where multiple jibs can be used in conjunction for staged operation.



04- overhead jib crane Product Package

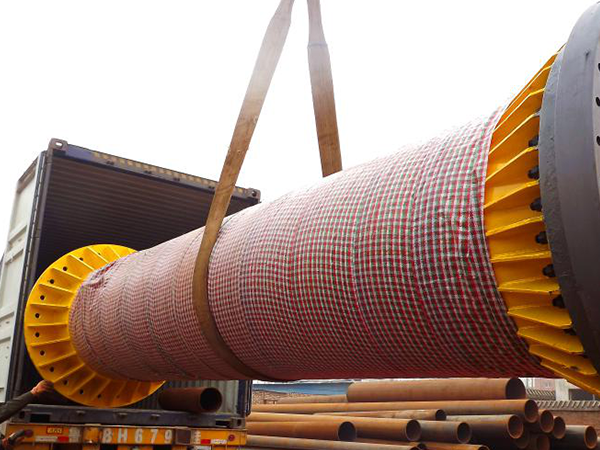

Normally the pillars and arms of the jib crane will be packed by woven bag; And electrical parts will be packed by plywood box;






05- About Tavol



Tavol is an overhead bridge cranes manufacturers, overhead crane installation, Overhead Crane Repair, Bridge crane maintenance, overhead crane operator training and overhead crane service company from China.



Following the china and international overhead crane design standard, focus on the overhead crane safety and bridge crane safety to the overhead crane operator, help you to solve your warehouse crane and factory crane troubles, try to reduce the overhead crane cost, mainly made overhead cranes, bridge cranes, gantry cranes, warehouse cranes, overhead jib cranes, overhead cranes and hoists, underhung bridge crane, workstation bridge crane, overhead crane kits etc.



The Popular model including 5 ton Crane, 10 ton crane, 5 ton gantry crane, 5 ton overhead crane, 5 ton bridge crane, 10 ton overhead crane, 10 ton gantry crane, 20 ton overhead crane, 2 ton overhead crane, 10 ton bridge crane, 2 ton bridge crane, 1 ton overhead crane, 20 ton gantry crane, 1 ton bridge crane, 20 ton bridge crane, 3 ton bridge crane, 15 ton overhead crane, 15 ton bridge crane, 25 ton overhead crane, 5t overhead crane, 10t gantry crane,10t overhead crane etc.



Except the Full sets Overhead Bridge Cranes, Tavol also overhead crane suppliers of the bridge crane components, overhead crane accessories and overhead crane attachments and parts, like overhead crane trolley, overhead cranes and hoists, overhead crane rail, overhead crane wheels, overhead crane pendant, overhead crane motor, overhead crane trolley system, overhead crane track, bridge crane wheels, overhead crane hook, overhead crane brake mechanism, overhead crane gearbox, overhead crane cable, overhead crane rollers, Overhead crane bumpers, overhead crane busbar, Overhead Cabin etc.



As a top overhead crane manufacturers, Tavol supply the overhead eot crane and overhead crane project all of the world market, from Asia to Middle east, Africa and American countries, like Indonesia, UK, Singpore, Canada, India, Australia, Egypt etc.
