ZLP800 7.5m 800kg Painting Suspended Working Platform for Window Cleaning

The model perfectly suited to lightweight applications such as painting and decorating, refurbishing, jointing and repairs, windows cleaning etc. The complete system consists of the working platform equipped with two electric LTD hoists and the support wheels, suspended by means of steel wire ropes from a suspension structure.
max .load :
Size:
Material & Surface Treatment:
Counterweight:
Availability:
Quantity:
  • ZLP800
  • TAVOL
  • 8428909090

Product Description

ZLP800 7.5m 800kg Painting Suspended Working Platform for Window Cleaning

1-Production Description

The model perfectly suited to lightweight applications such as painting and decorating, refurbishing, jointing and repairs, windows cleaning etc. The complete system consists of the working platform equipped with two electric LTD hoists and the support wheels, suspended by means of steel wire ropes from a suspension structure.

Application of suspended platform:

1.Decorating and constructing the external walls of high rise buildings.
2.Repairing, checking, maintenance and cleaning for the external walls of the high rise buildings.
3.Construction, repairing and maintenance for large scale projects such as large tanks,chimneys,
dams & bridges.
4.Welding, cleaning and painting for large ships.
5.Installing billboard for the high- rise buildings.

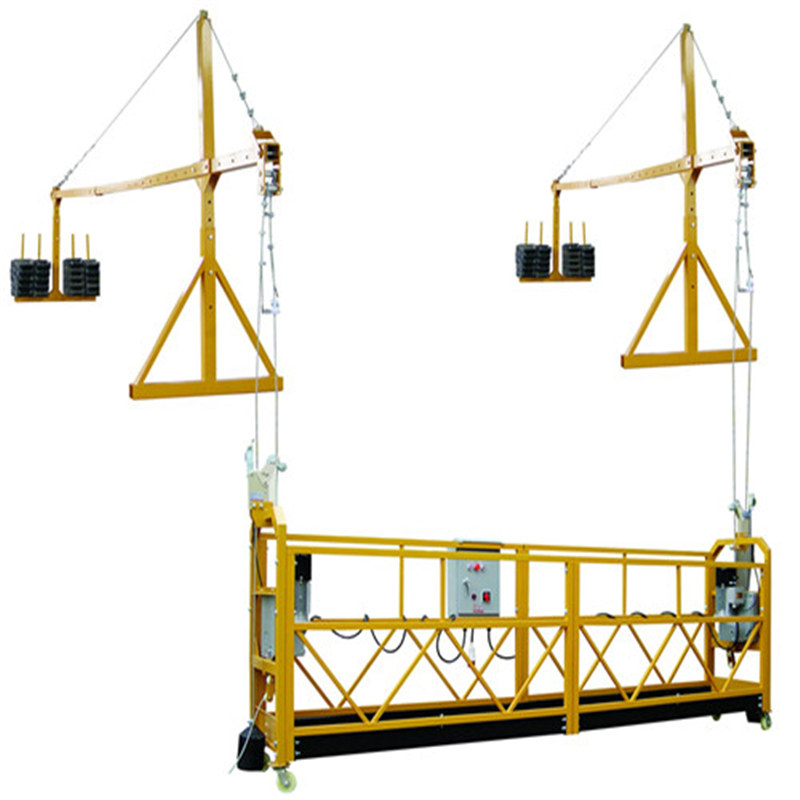

aerial work platform-3

2-Technical specification

Model

ZLP500

ZLP630

ZLP800

Rated Load

500kg

630kg

800kg

Lifting speed

9.6m/min

9.6m/min

9.6m/min

Barrel length

1m to 5m(can be spliced by   random)

1m to 6m(can be spliced by   random)

1m to 7.5m(can be spliced by   random)

Standard length

2+3m

1+2+3

1+1.5+2+3

Platform weight

320kg

358kg

400kg

Power lift

1.5kw(2sets)

1.5kw(2sets)

1.8kw(2sets)

Safety Systems

To ensure safe operation without danger to personnel, the platform is fitted with the following safety devices:
1. Service brake incorporated in the LTD hoist.
2. Two fall arrest devices acting on the safety wire ropes.
3. Two upper limit switches.
4. No power descent in case of power failure.
5. Emergency stop.

6. Phase controller. (Option)

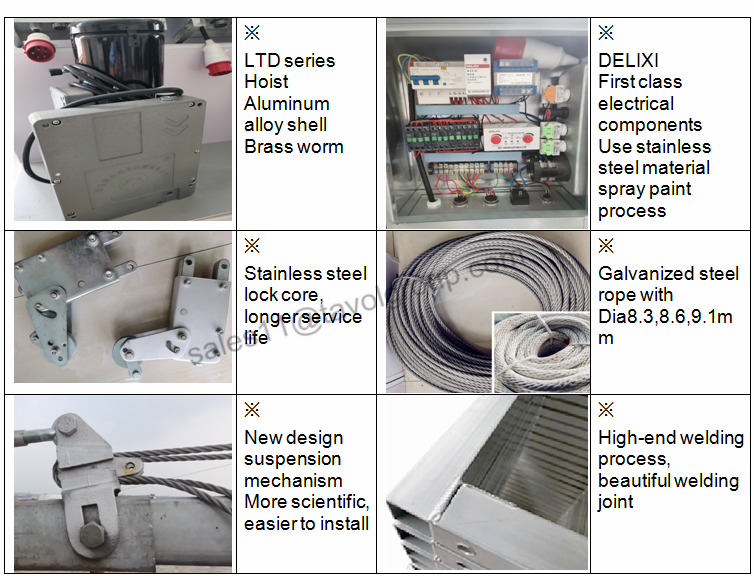

0123


3-Package and delivery

666

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

4.FAQ:

If you want quick offer, please confirm the below:

1) load capacity?630kg or 800kg?

2) Lifting height?

3) ordered quantity?
