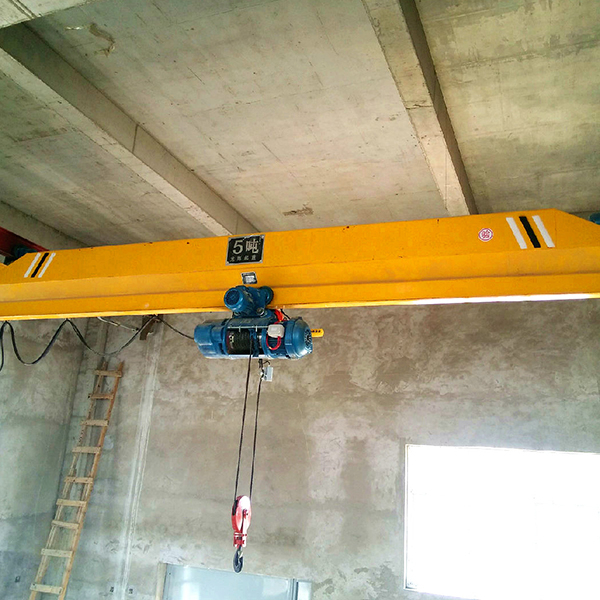

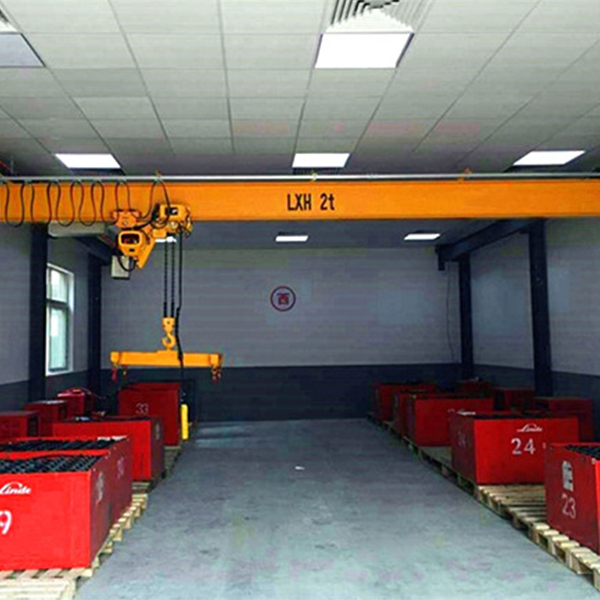

Under Running Overhead Cranes LX Single Girder Universal Type

Lift Capacity: LX0.5- LX10 ton
Lift Height: 6- 30m
Span:3- 16m
Power: 380V/50HZ/3P
Availability:
Quantity:
  • Under Running Overhead Cranes LX Single Girder Universal Type
  • Tavol
  • 032

Product Description

LX under hung single girder overhead crane is one kind of light duty crane, it runs under H steel rail .It is designed and made by reasonable structure and higher strength steel .

It uses together with CD1 model MD1 model electric hoist as a complete set, it is a light duty crane with a capacity 0.5 ton ~ 10ton. The span is 5-40m. Working duty is A3~A5, working temperature is -25-40℃.





01- Under Running Overhead Cranes Structure:

LX under hung single girder overhead crane is one kind of light duty crane, it runs under H steel rail .It is designed and made by reasonable structure and higher strength steel .

It uses together with CD1 model MD1 model electric hoist as a complete set, it is a light duty crane with a capacity 0.5 ton ~ 10ton. The span is 5-40m. Working duty is A3~A5, working temperature is -25-40℃.

LX Under Running Single Girder Overhead Crane is widely used in plants warehouse,steel plant,steel yard, material stocks etc to lift goods.




According to main girder and hoist type, it separate with two type:

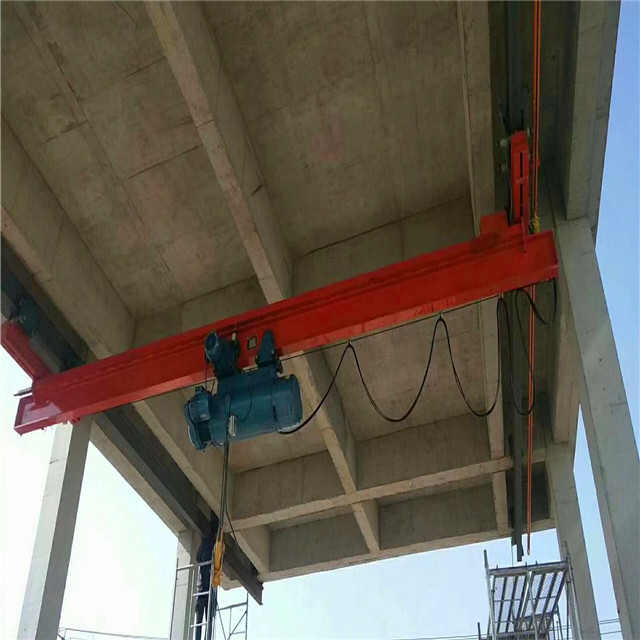

1- LX Under Running Overhead Crane Single Beam Universal Design


2- LXE Under Running Overhead Crane Single Beam European Design

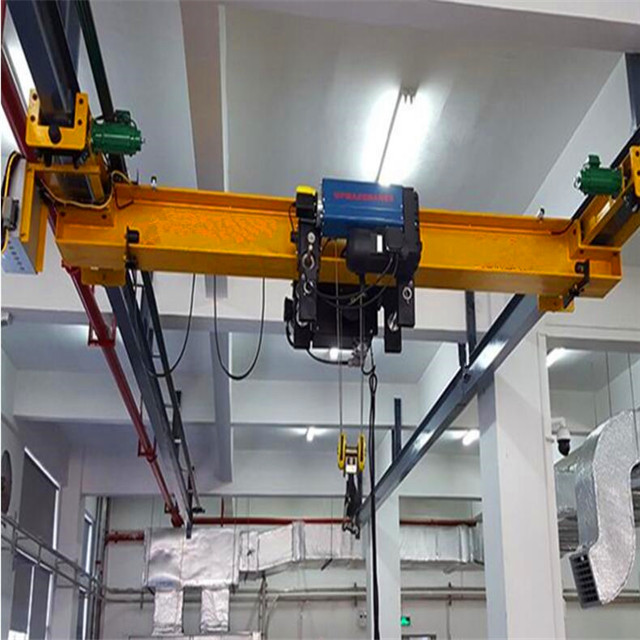

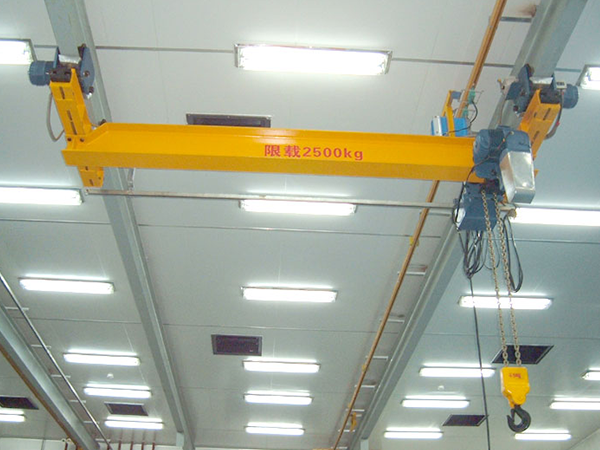

underslung eot crane





02- Under Running Overhead Cranes Specification:



Lifting Capacity (ton)

0.5 ton, 1 ton, 2 ton, 3 ton, 5 ton, 10 ton

Span (meter)

3-16

Crane Travelling

Mechanism

Travelling Speed (m/min)

20/30

Motor

0.5- 3 ton

ZDY12-4; N = 2x0.4kw

5- 10 ton

ZDY21-4; N= 2x0.8kw

Lifting

Mechanism

Electric Hoist

Lifting Speed (m/min)

8; 0.8/8

Lifting height (meter)

6 -30m

Trolley Device

Trolley Traverse speed

(m/min)

20/30

Motor

Taper Brake Rotor Motor

Working Duty

M3/A3 ( 25% )

Power Supply

3 Phase; 380V/50HZ

Wheel Diameter

0.5 -3 ton

134 mm

5 -10 ton

154 mm

Recommend Travel I beam

0.5 - 2 ton

20a- 45c

3- 5 ton

32a - 45c

10 ton

40b - 63c







03- Under Running overhead crane Application:



LX model under Running single girder bridge crane mainly used for manufacturing and maintenance applications.



It is widely applicable to multiple fields such as: Pre Engineered Steel Building, Steel Plant, Steel Product Maker, Oil Industry, Plastic Plant, Cement Plant, Power Plant , Mine Industry, Food Industry, Chemical Industry, Cable Plant, Machine Tools, Car/Truck Industry, Transport Company, Construction Company, Electrical Company, Shipyard, Stone Yard, Installation and Maintenance etc.





04- Under Running overhead crane Package:



1. Electric parts are packed by high quality plywood crate, to reduce distortion

in conveying;

2. Main beams, end beams are packed by plastic woven cloth, to reduce

abrasion when transport.

3. Whole set of overhead crane will be shipped by container or by bulk.

container loading

packing for euro hoist

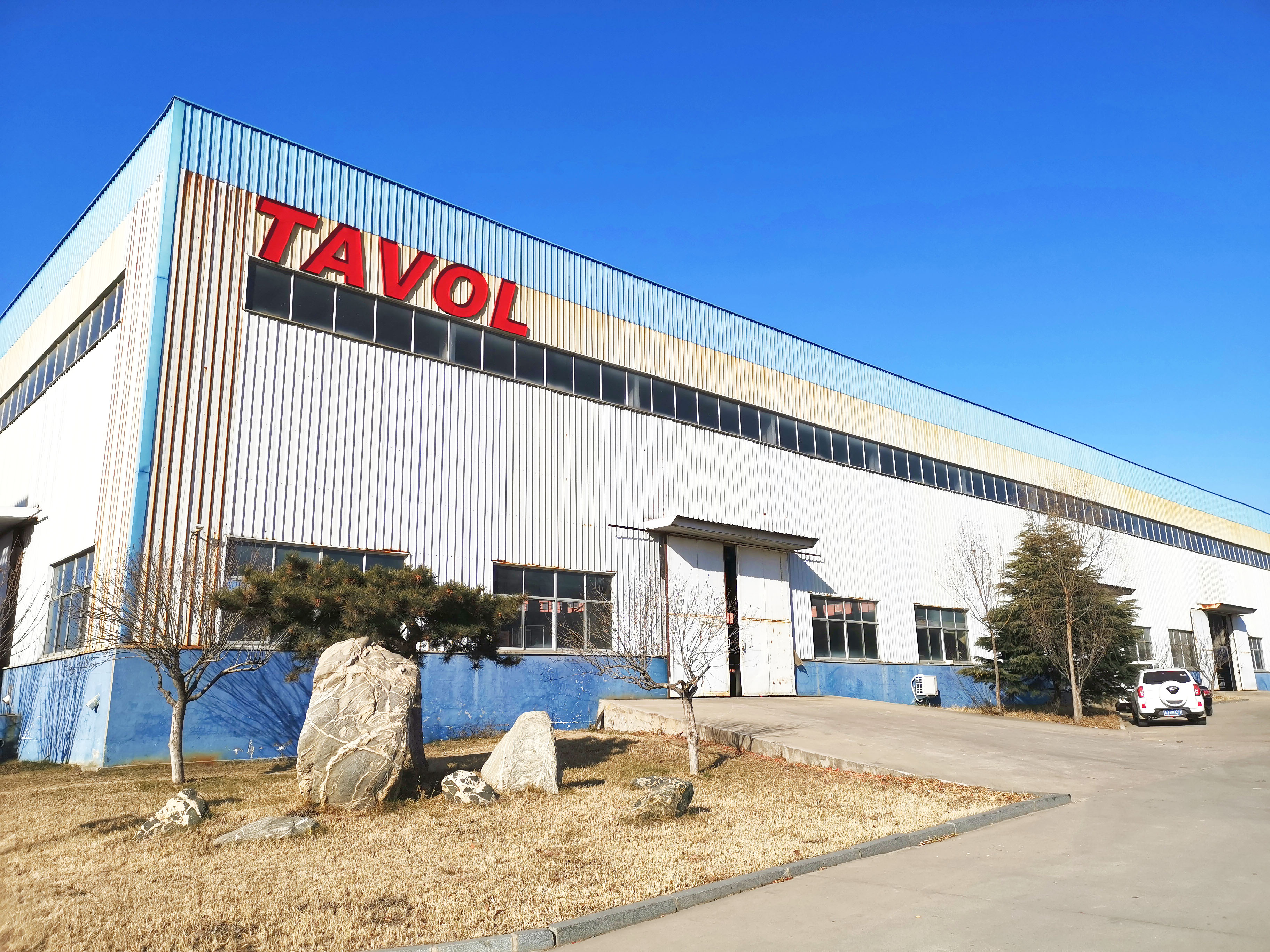

05- About Tavol



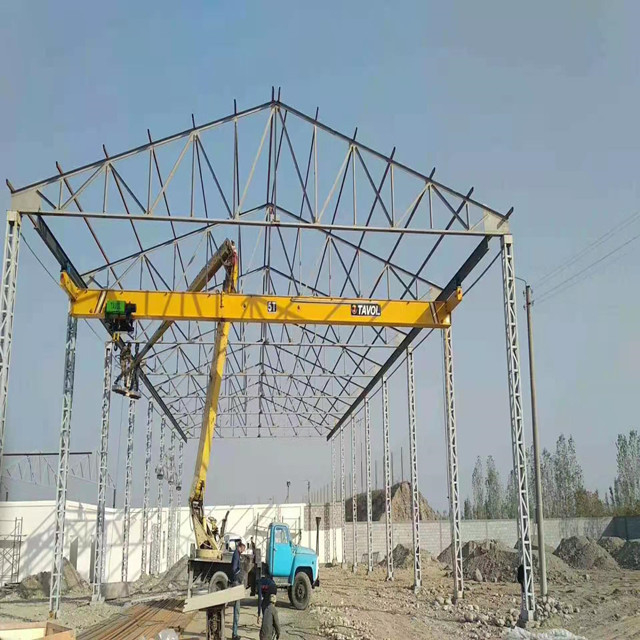

Tavol is an overhead bridge cranes manufacturers, overhead crane installation, Overhead Crane Repair, Bridge crane maintenance, overhead crane operator training and overhead crane service company from China.



Following the china and international overhead crane design standard, focus on the overhead crane safety and bridge crane safety to the overhead crane operator, help you to solve your warehouse crane and factory crane troubles, try to reduce the overhead crane cost, mainly made overhead cranes, bridge cranes, gantry cranes, warehouse cranes, overhead jib cranes, overhead cranes and hoists, underhung bridge crane, workstation bridge crane, overhead crane kits etc.



The Popular model including 5 ton Crane, 10 ton crane, 5 ton gantry crane, 5 ton overhead crane, 5 ton bridge crane, 10 ton overhead crane, 10 ton gantry crane, 20 ton overhead crane, 2 ton overhead crane, 10 ton bridge crane, 2 ton bridge crane, 1 ton overhead crane, 20 ton gantry crane, 1 ton bridge crane, 20 ton bridge crane, 3 ton bridge crane, 15 ton overhead crane, 15 ton bridge crane, 25 ton overhead crane, 5t overhead crane, 10t gantry crane,10t overhead crane etc.



Except the Full sets Overhead Bridge Cranes, Tavol also overhead crane suppliers of the bridge crane components, overhead crane accessories and overhead crane attachments and parts, like overhead crane trolley, overhead cranes and hoists, overhead crane rail, overhead crane wheels, overhead crane pendant, overhead crane motor, overhead crane trolley system, overhead crane track, bridge crane wheels, overhead crane hook, overhead crane brake mechanism, overhead crane gearbox, overhead crane cable, overhead crane rollers, Overhead crane bumpers, overhead crane busbar, Overhead Cabin etc.



As a top overhead crane manufacturers, Tavol supply the overhead eot crane and overhead crane project all of the world market, from Asia to Middle east, Africa and American countries, like Indonesia, UK, Singpore, Canada,  India, Australia, Egypt etc.


container loading in tavol factory
