Product Description

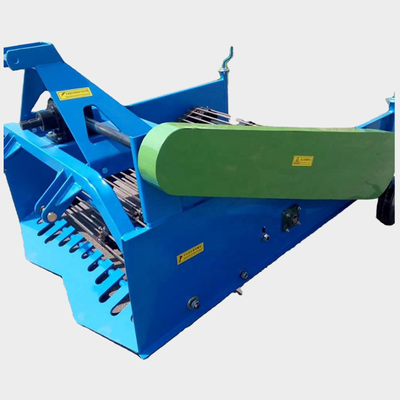

Due to its excellent performance with high working efficiency, this machine is mainly used for the harvest of potato,garlic,pachyrhizus,peanut
and other subterranean rootstalk crops with the advantages including high-working efficiency, lower breakage rate, light&quick running without
vibration,no jamming and simple structure as well as long useful life.
In addition, this machine has been granted with two patents including utility
model and outline design.
| Model | 4U-60 | 4U-70 | 4U-80 | 4U-90 | 4U-130 | 4U-160 |
| working rows | 1row | 1row | 1row | 1row | 2rows | 2rows |
| working speed | 0.5-0.8ac/h | 0.6-0.9ac/h | 0.7-1ac/h | 0.8-1.1ac/h | 1-1.4ha/h | 1.2-1.6ha/h |
| weight | 200kg | 220kg | 240kg | 260kg | 320kg | 400kg |
| matched power | 22-35hp | 25-35hp | 25-40hp | 30-45hp | 40-80hp | 50-80hp |
| working depth | 300-500mm | 300-500mm | 300-500mm | 300-500mm | 300-500mm | 300-500mm |
| working width | 600mm | 700mm | 800mm | 900mm | 1300mm | 1600mm |
| loss rate | <5% | <5% | <5% | <5% | <5% | <5% |
