Tavol Brand MH Model Single Girder Gantry Crane with Mono Rail Wire Rope Hoist

Tavol Brand MH Universal Model Single Girder Gantry Crane with Mono Rail Wire Rope Hoist
Overhead gantry crane single girder MH Model for indoors or outdoors factory and workshop
gantry crane capacity: MH1- 20ton
gantry crane span: 3- 40 m
gantry lift height:3- 20m
Run way length: 10- 200m
Quantity:
  • MH universal overhead gantry crane
  • Tavol
  • 028

Product Description

Tavol Brand MH Model Single Girder Gantry Crane with Mono Rail Wire Rope Hoist


MH model single girder gantry crane is similar to a bridge crane, but instead of moving on suspended runways,

the crane uses legs to support the bridge, and the electric hoist. The crane legs travel on fixed rails embedded in,

or laid on top of the floor.


gantry crane 15t




01- Overhead gantry crane single girder MH Model Structure:



MH model gantry crane is a frame gantry crane and rail mounted gantry crane, similar to a overhead bridge crane,

but instead of moving on suspended runways, the crane uses legs to support the bridge, and the electric hoist.

The crane legs travel on fixed rails embedded in, or laid on top of the floor.



According to working environment, it separate with two type:

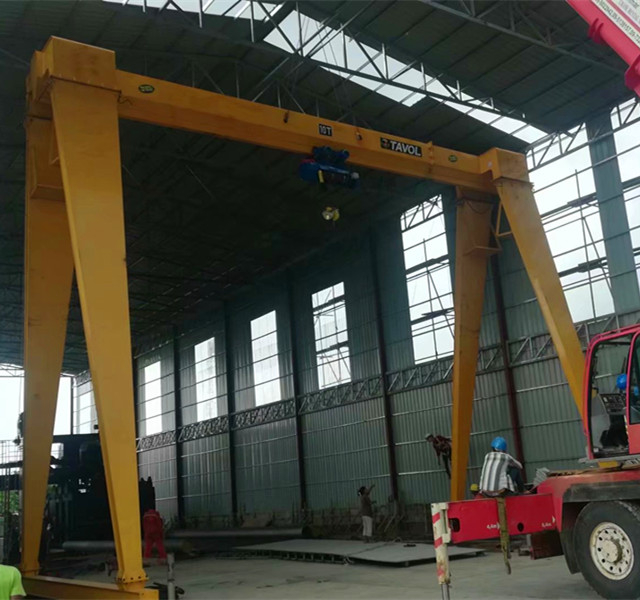

1- MH overhead gantry crane for indoors uses.

gantry crane 5t

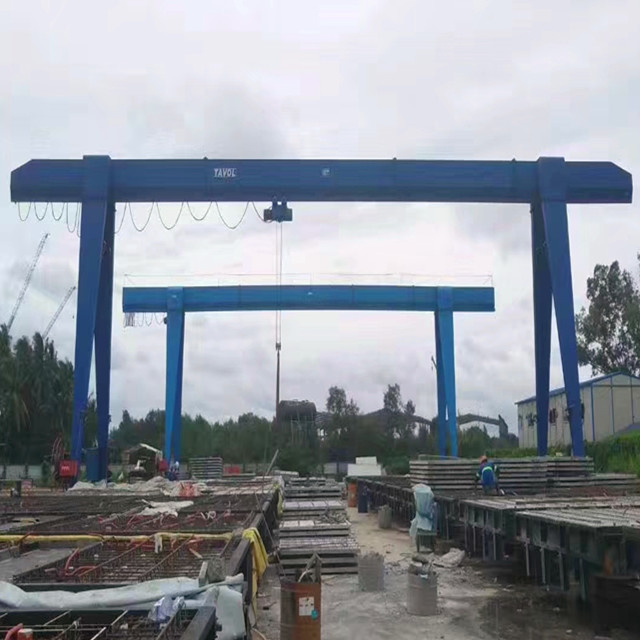

MH overhead gantry crane for outdoors uses.

industrial gantry crane


Tavol Overhead Gantry Crane Product Advantages:

1. Cut Down your cost in building of plant and workshop;

2. Improve your production efficiency;

3. Be suitable for indoor warehouse and outdoor usage;

4. Reduce daily maintenance;

5. Safety with high performance.



02- Overhead gantry crane single girder MH Model Specification:



SI

Descriptions

Reference Data

1

Single girder gantry crane capacity

1 ton, 2 ton, 3 ton, 5 ton, 10 ton, 15 ton, 20 ton, 32 ton

2

Single girder gantry crane Span

3-31.5M

3

Single girder crane Lifting height

6-12M

4

Single girder gantry crane Work duty

A3/A4 - A5/M5

5

Overhead Gantry Crane Control method

Remote control or Pendant control

6

Electrical parts

CHINT or Schneider

7

Gantry Crane Motors

Chinese Nanjing brand

8

Gantry Crane Bearings

Chinese famous brand "HRB"

9

Gantry Crane Hook

Forged hook with safety lock

10

Gantry Crane Hoist Lifting speed

0-8M/Min (8/0.8m/min)

11

Crane hoist Traverse speed

0-20M/Min

12

Overhead gantry Crane Long travelling speed

0-20M/Min (20/30m/min)

13

Variable frequency drives

Optional

14

Overhang part

Optional







03- Overhead gantry crane single girder MH Model Application:



MH model single girder China gantry crane is typically used in an outdoor applications where full beams and

columns can’t be installed, or may be used below an existing bridge crane system.



Gantry cranes can most commonly be found in shipyards, railyards, special outdoor projects like the construction

of a bridge, or in places like steel mills where overhead room may be an issue.



It is widely applicable to multiple fields such as: Pre Engineered Steel Building, Steel Plant, Steel Product Maker,

Oil Industry, Plastic Plant, Cement Plant, Power Plant , Mine Industry, Food Industry, Chemical Industry, Cable Plant, Machine Tools, Car/Truck Industry, Transport Company, Construction Company, Electrical Company, Shipyard,

Stone Yard, Installation and Maintenance etc.



04- Overhead gantry crane single girder MH Model Package



1. Electric parts are packed by high quality plywood crate, to reduce distortion

in conveying;

2. Main beams, end beams are packed by plastic woven cloth, to reduce

abrasion when transport.

Whole set of overhead crane will be shipped by container or by bulk.



05- About Tavol



Tavol is an overhead and gantry cranes manufacturers, gantry crane installation, gantry Crane Repair, gantry crane maintenance, gantry crane operator training and gantry crane service company from China.



Following the china and international gantry crane design standard, help you to solve your warehouse crane and factory crane troubles, try to reduce the gantry crane cost, mainly made gantry crane for sale with single girder gantry crane, double girder gantry crane, rail mounted gantry crane, motorized gantry crane, fixed gantry crane, industrial gantry crane, workshop gantry crane, trolley gantry crane, shop gantry crane, powered gantry crane, rolling gantry crane, indoor gantry crane and outdoor gantry crane etc.



The Popular model including 5 ton gantry crane, 10 ton gantry crane, 20 ton gantry crane, gantry crane 40 ton etc. Except the Full sets Overhead gantry Cranes, Tavol also gantry crane suppliers of the gantry crane components and accessories, like gantry crane rail, gantry crane wheels, gantry crane motor, gantry crane trolley system, gantry crane hook, gantry crane brake mechanism, gantry crane gearbox, gantry crane cables etc.



As a top overhead gantry crane manufacturers, Tavol supply the overhead  gantry crane project all of the world market, from Asia to Middle east, Africa and American countries, like Indonesia, UK, Singpore, Canada, India, Australia, Egypt etc.
