Tavol Brand Low Room Type Wire Rope Electric Hoist with SWL 3.2- 32tons Euro Designs Made in China with Same Quality And Good Looking

Tavol Brand Low Room Type Wire Rope Electric Hoist with SWL 3.2- 32tons Euro Designs Made in China with Same Quality And Good Looking, Competitive Price Offers.
Standard equipped with inverters, schneider spare parts, SZW motors, Aviation plug etc.
Availability:
Quantity:
  • Wire Rope Electric Hoist
  • Tavol
  • 033

Product Description

Tavol Brand  Low Room Type Wire Rope Electric Hoist with SWL 3.2- 32tons Euro Designs Made in China with Same Quality And Good Looking, Competitive Price Offers.

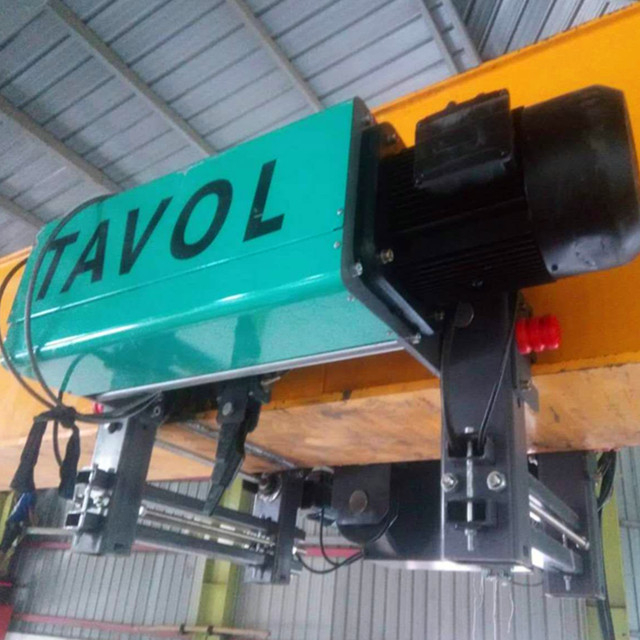

euro design rope hoist



1.Prodcut Introduction:

Wire Rope Electric Hoist is a device used for lifting or lowering a load by means of a drum which wire rope wraps. It is operated electrically driven and use wire rope as its lifting medium.



It is installed in a single beam crane, linear, curve strander beams; also used together with double beam, gourd gantry crane, jib crane; welcomed by industrial and mining enterprises, railways, docks, warehouses.



2.Product Features:

Tavol Euro Design hoist with the design similar with Germany Demag designs, 100% made in china, almost all the spare

parts is made in China, like SZW motors, Schnider Electric parts, Aviation plug, Inovance inverter, hoist steel structure is made by Tavol, We buy these spare parts and assembly in Tavol Workshop, Quality and Outward appearance is same as the Euro Designs, like Demag, Kone, Novo etc.


The speed control including lifting and trolley traverse stanard equiped with the Inverter with dual speed, Control Panel is standard equiped, the Remote control is optional, All the work duty is M5, Euro standard 2m, heavy duty Model.

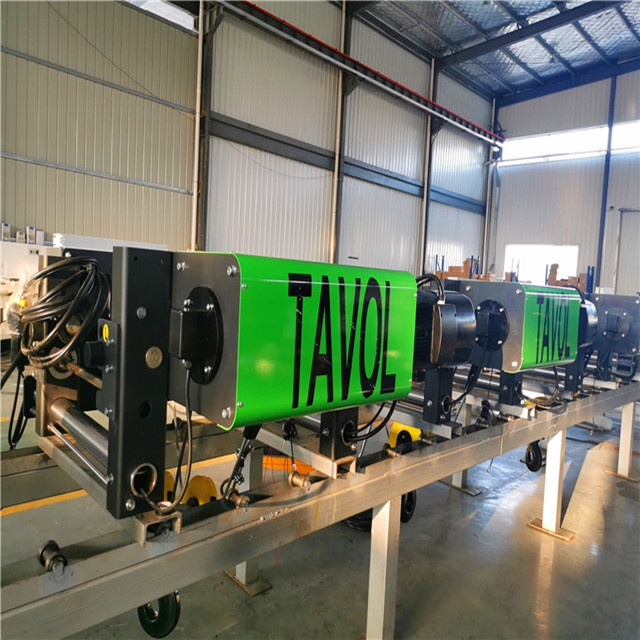

tavol new hoist

3.Product Specification:

SI

Descriptions

Reference Data

1

Lift capacity

3.2 -32T

2

Lifting height

6-30M

3

Work duty

M5

4

Control method

Pendent control and Remote Control

5

Motors

SZW

6

Hook

Forged hook with safety lock

7

Lifting speed

3.2t and 5t is 0.5/5M/Min

               10t is 0.4/4 m/min;

             16t is 0.45/4.5m/min

8

Cross travelling speed

2/20M/Min

9

Main Electric parts

Schneider



4.Product Application:

Normally wire rope electric hoist is mounted on single beam bridge crane, gantry crane and jib crane as the lifting mechasim and cross travelling mechanism; Also wire rope electric hoist can be fixed on a trolley to be treated as the lifting mechasim and cross travelling mechasim of the double girder overhead crane and double girder gantry crane.

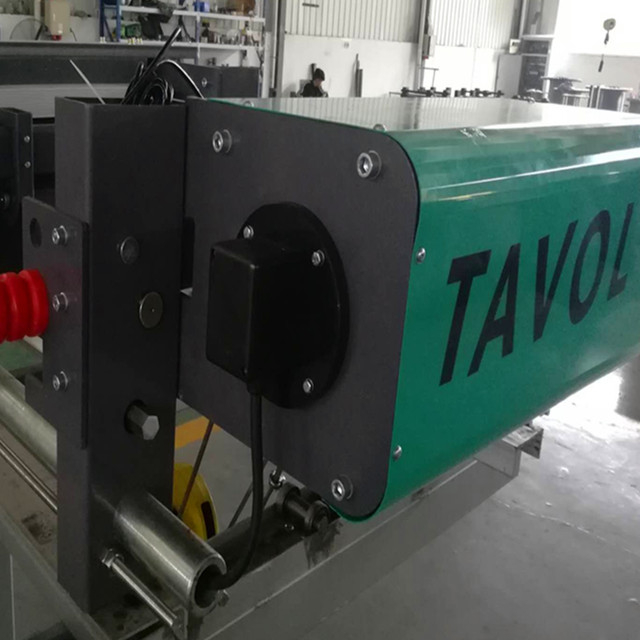

euro hoist



5.Product Package:

Normally electric wire rope hoist is packed by plywood box and shipped by container.

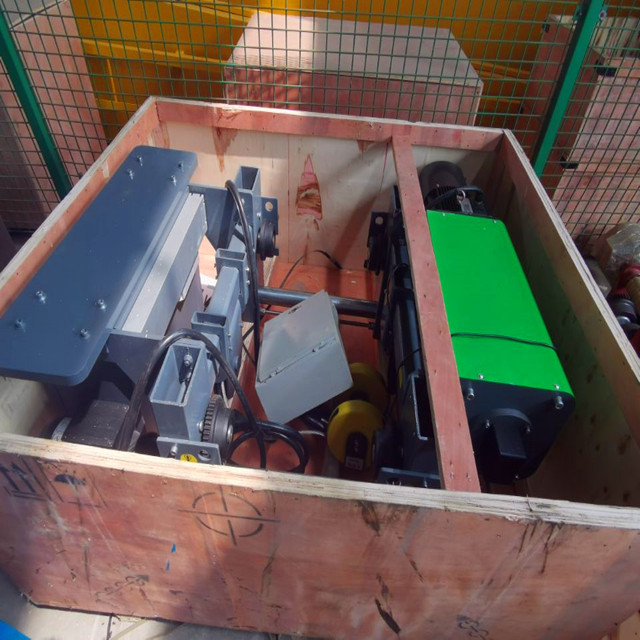

 packing for euro hoist




6.About Tavol



Tavol is an overhead bridge cranes manufacturers, overhead crane installation, Overhead Crane Repair, Bridge crane maintenance, overhead crane operator training and overhead crane service company from China.



Following the china and international overhead crane design standard, focus on the overhead crane safety and bridge crane safety to the overhead crane operator, help you to solve your warehouse crane and factory crane troubles, try to reduce the overhead crane cost, mainly made overhead cranes, bridge cranes, gantry cranes, warehouse cranes, overhead jib cranes, overhead cranes and hoists, underhung bridge crane, workstation bridge crane, overhead crane kits etc.



The Popular model including 5 ton Crane, 10 ton crane, 5 ton gantry crane, 5 ton overhead crane, 5 ton bridge crane, 10 ton overhead crane, 10 ton gantry crane, 20 ton overhead crane, 2 ton overhead crane, 10 ton bridge crane, 2 ton bridge crane, 1 ton overhead crane, 20 ton gantry crane, 1 ton bridge crane, 20 ton bridge crane, 3 ton bridge crane, 15 ton overhead crane, 15 ton bridge crane, 25 ton overhead crane, 5t overhead crane, 10t gantry crane,10t overhead crane etc.



Except the Full sets Overhead Bridge Cranes, Tavol also overhead crane suppliers of the bridge crane components, overhead crane accessories and overhead crane attachments and parts, like overhead crane trolley, overhead cranes and hoists, overhead crane rail, overhead crane wheels, overhead crane pendant, overhead crane motor, overhead crane trolley system, overhead crane track, bridge crane wheels, overhead crane hook, overhead crane brake mechanism, overhead crane gearbox, overhead crane cable, overhead crane rollers, Overhead crane bumpers, overhead crane busbar, Overhead Cabin etc.



As a top overhead crane manufacturers, Tavol supply the overhead eot crane and overhead crane project all of the world market, from Asia to Middle east, Africa and American countries, like Indonesia, UK, Singpore, Canada,  India, Australia, Egypt etc.


container loading in tavol factory
