Tavol Brand 15t MHS Model, Double Girder Gantry Crane with FEM European Deisgn.

15t MHS Model, Double Girder Gantry Crane , with FEM European Deisgn.
SWL 15t, Height 10m, Span Size 25m,
Lifting Speed: 0.44/4.4m/min, Trolley Speed: 2/20m/min, Crane Speed: 3/30m/min
All speed controlled with VVF Inverter,
Quantity:
  • MHS Double Girder type
  • TAVOL
  • 84262000

Product Description

TAVOL brand 15t MHS Model, Double Girder Gantry Crane ,  with FEM European Deisgn.

SWL 15t, Height 10m, Span Size 25m,

Lifting Speed: 0.44/4.4m/min, Trolley Speed: 2/20m/min, Crane Speed: 3/30m/min
All speed controlled with VVF Inverter,
Lifting motor: 13kw, Trolley Motor 0.96 x2, Crane motor: 5.5KW x 2, Crane Reducer: QS12
Trolley wheel Diameter 140mm x 4, Crane wheel Diameter 500mm x 4
Control type: Ground Remote and Pendent Switch button.

Power source: 380V/50HZ/3P, Work Duty: M5 (FEM 2m)

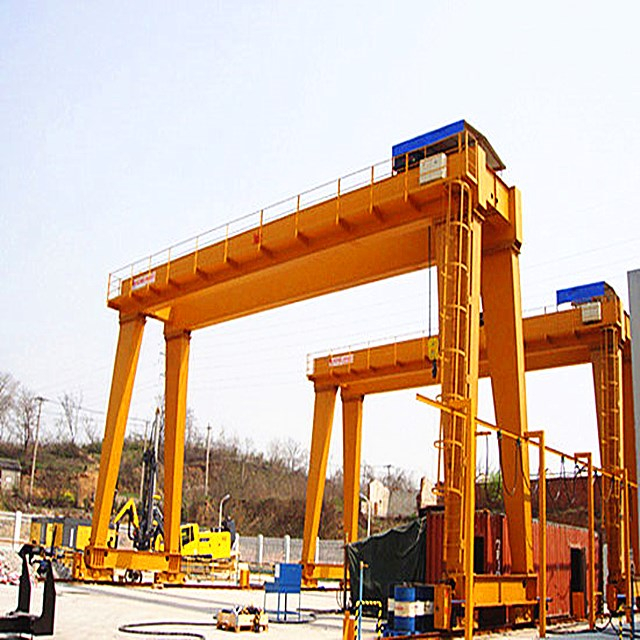

Double girder gantry crane

Concerned on meeting customers' material handling requirements, we are always focusing on quality and product innovation to provide you good quality, safe and reliable material handling equipment to realize our goal that to lift you up easily and create more values for customer in long run.

MHS Model European style double girder gantry crane is one successful innovation for us to step that goal.

gantry crane

Due to the design advantages, European double girder gantry crane could help you to lower initial investment for factory construction, increase productivity, and lower efforts for daily maintenance, and reduce energy consumption, and obtain higher return on investment.

gantry crane


European Design Double Girder Hoist Trolley Specifications


Rated Load

Capacity t

Work duty

FEM

Work Duty

ISO

Lift Height

m

Lift Speed

M/min

Trolley speed

M/min

3.2T

2m

M5

6/9/12/15/18

0-5.0

0-20

3.2T

2m

M5

6/9/12/15/18

0-8.0

0-20

5T

2m

M5

6/9/12/15/18

0-5.0

0-20

5T

2m

M5

6/9/12/15/18

0-8.0

0-20

8T

2m

M5

6/9/12/15/18

0-4.0

0-20

8T

2m

M5

6/9/12/15/18

0-4.5

0-20

10T

2m

M5

6/9/12/15/18

0-4.0

0-20

10T

2m

M5

6/9/12/15/18

0-5.0

0-20

12.5T

2m

M5

6/9/12/15/18

0-4.4

0-20

12.5T

2m

M5

6/9/12/15/18

0-5.0

0-20

16T

2m

M5

6/9/12/15/18

0-4.4

0-20

16T

2m

M5

6/9/12/15/18

0-5.0

0-20

20T

2m

M5

6/9/12/15/18

0-3.6

0-20

20T

2m

M5

6/9/12/15/18

0-5.0

0-20

25T

2m

M5

6/9/12/15/18

0-2.8

0-20

25T

2m

M5

6/9/12/15/18

0-3.8

0-20

32T

2m

M5

6/9/12/15/18

0-2.8

0-20

32T

2m

M5

6/9/12/15/18

0-3.8

0-20

50T

2m

M5

6/9/12/15/18

0-3.0

0-20

50T

2m

M5

6/9/12/15/18

0-4.0

0-20

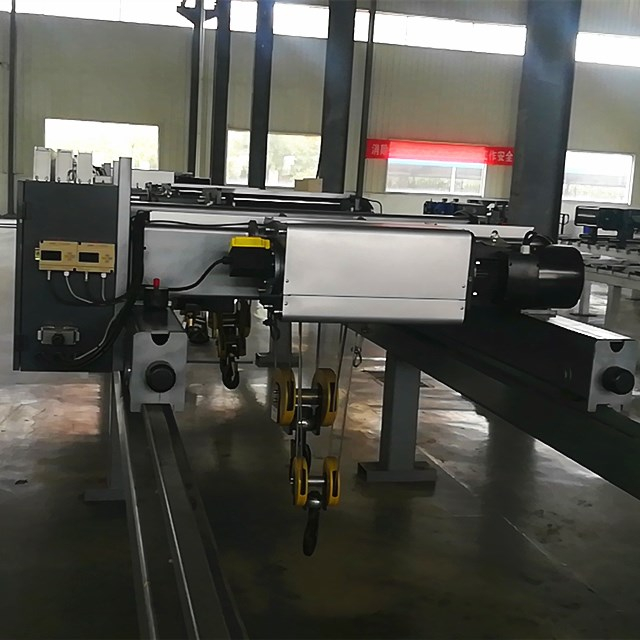

Euro type electric hoist
