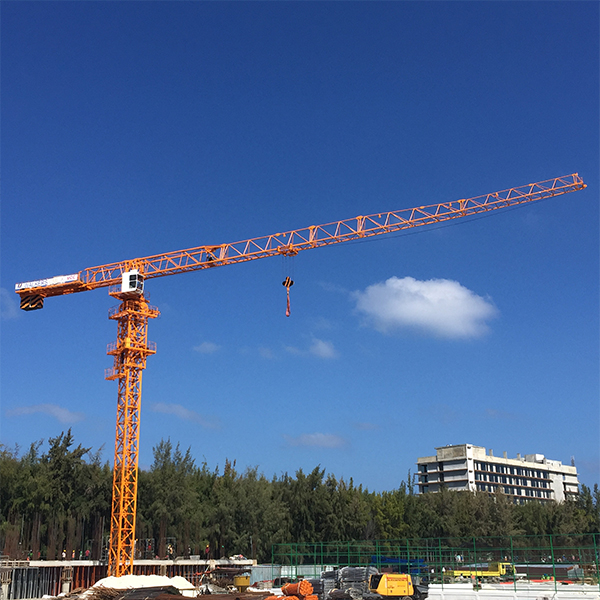

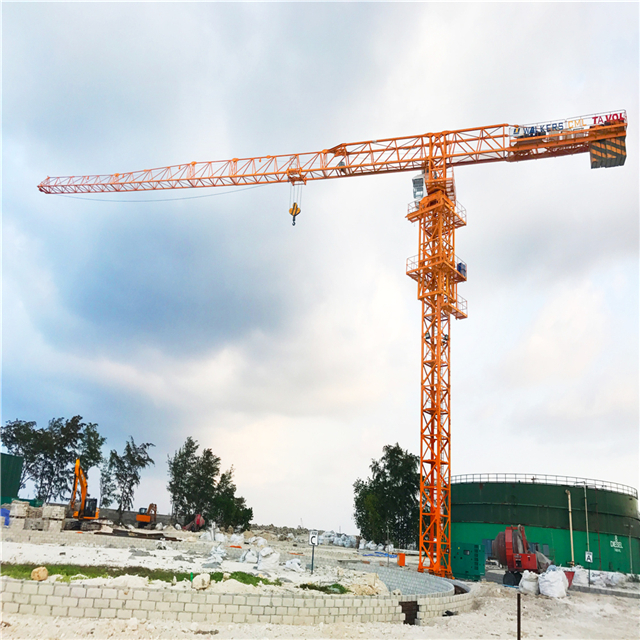

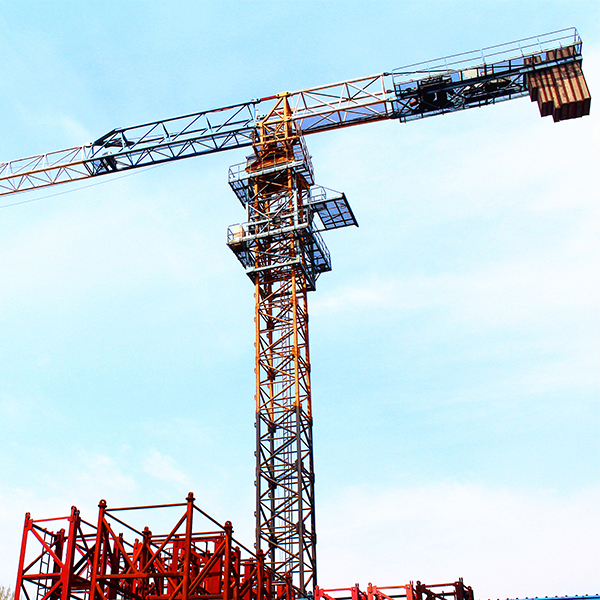

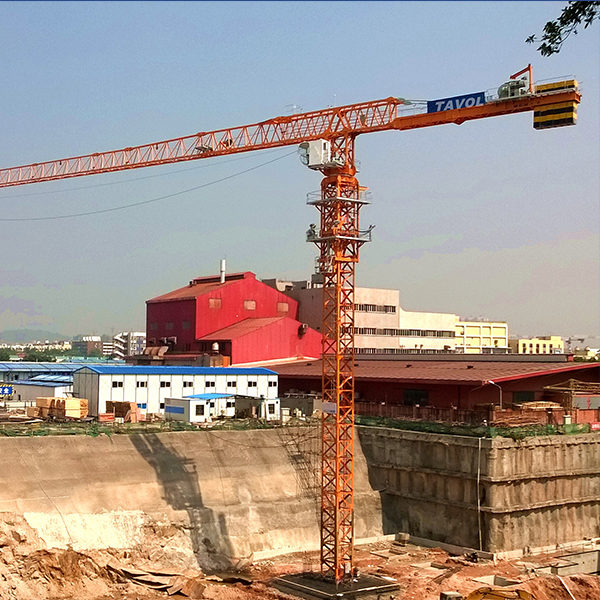

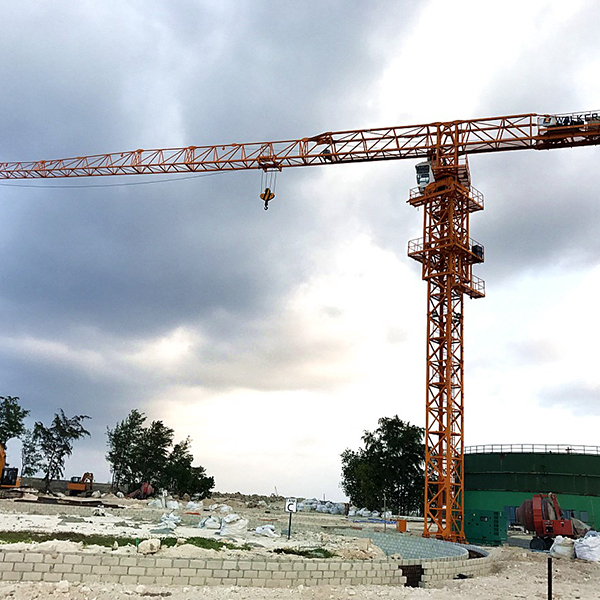

QTZ80(PT5610) Topless Tower Crane of Building Construction

The PT5610 topless tower crane 6ton features stable operation and reliable management due to the adoption of various advanced technologies.
max .load :
jib length:
free standing height:
max anchorage height:
mast size:
Availability:
Quantity:
  • QTZ80(PT5610) Topless Tower Crane of Building Construction
  • TAVOL
  • 84262000

Product Description

1-Product Description:

The PT5610 topless tower crane 6ton features stable operation and reliable management due to the adoption of various advanced technologies.

PT5610 6tons topless tower crane is configured with diverse devices like the hydraulic self-erecting device, frequency converting slewing device and a series of reliable safety devices like hoisting height limiter, slewing range limiter and multifunctional limiter.

PT5610 6tons topless tower crane is thus easy for this heavy lifting equipment to control the hoisting capacity, load moment and trolley traveling range more precisely. Additionally, multiple electric safety devices such as anemoscopes and obstacle lights effectively prevent the breaking of trolley axles and wire ropes.

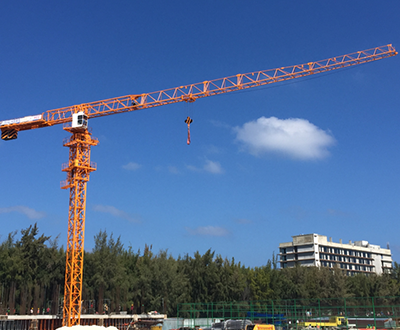

Tower Crane

2-Specification

Series

QTZ80

Standard Model

5610

Max. Lift Load

6t

Tip Load

1.0t

Free Standing Height

40m

Max. Anchorage Height

140m

Jib Length

56m

Mast size

1.833×1.833×2.5m



Lift Mechanism

Lifting Speed

(a=2)80/40/8 m/min

(a=4)40/20/4m/min

Lift motor

5.5/24/24kw

Trolley Mechanism

Trolley speed

48/24 m/min

Trolley Motor

3.3/2.2kw

Slewing Mechanism

Slewing speed

0.65r/min

Slew Motor

3.7kw*2

Jacking Mechanism

Jack climbing speed

0.58m/min

Jack climbing motor

7.5kw

Voltage

380V/50Hz/3P

Luxury Operate Cabin, Schneider Electric Parts

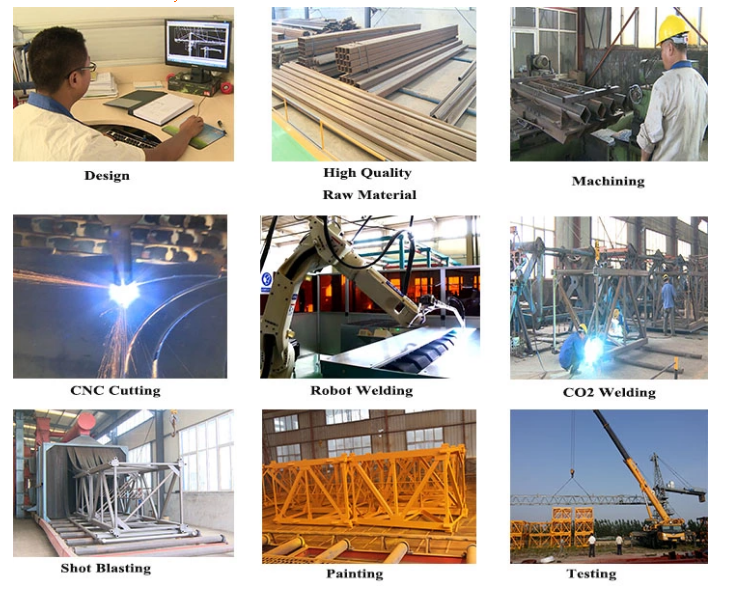

3-Product  Process

Tower Crane

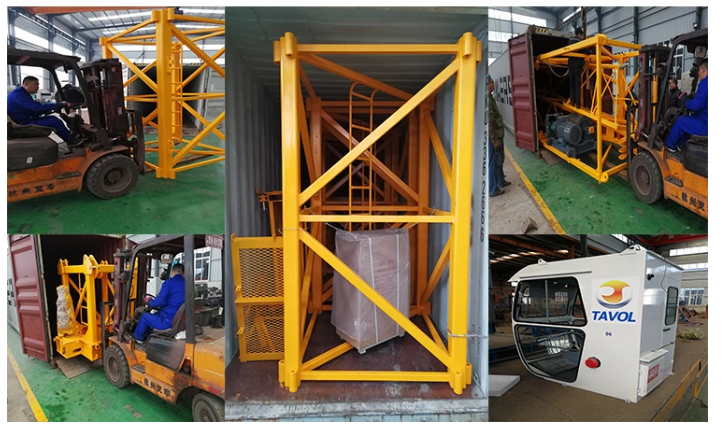

4-Delivery, shipping and serving

Packaging: High quality seaworthy package, usually by 40HC container.

 Delivery time: 25 working days after advance payment

tower crane loading

5 FAQ:

 If you are interested in our 8Ton Topless Construction Tower Crane, please no hesitate to contact us with following parameters:

1. Max load capacity?

2. Tip load?

3. Jib length?

4. Hoist lifting height?
