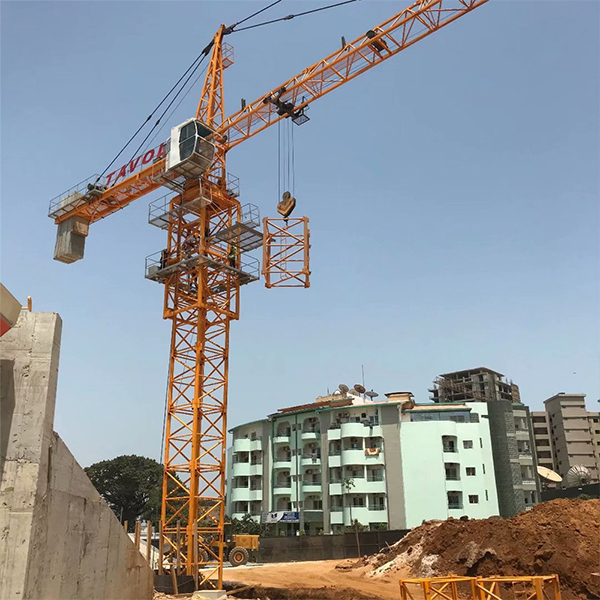

QTZ80 8ton Tower Crane of Boom 60m

This series of tower crane has a horizontal jib frame, a jib-trolley radius-changing mechanism and a hydraulic self-raising mechanism.  It is original in design, reliable in operation and satisfactory in shape.  Equipped with all necessary safety devices, these cranes show a good speed-control capacity, satisfactory operating stability and high work efficiency.
QTZ80 8ton Tower Crane can be widely used for the construction of high-rise hotels, residential buildings, high-rise industrial buildings, large-span factory buildings and tower-like buildings like tall chimneys.
max .load :
jib length:
free standing height:
max anchorage height:
mast size:
Quantity:
  • QTZ80 8ton Tower Crane of Boom 60m
  • TAVOL
  • 84262000

Product Description

1-Product Description:

This series of tower crane has a horizontal jib frame, a jib-trolley radius-changing mechanism and a hydraulic self-raising mechanism.  It is original in design, reliable in operation and satisfactory in shape.  Equipped with all necessary safety devices, these cranes show a good speed-control capacity, satisfactory operating stability and high work efficiency.

QTZ80 8ton Tower Crane can be widely used for the construction of high-rise hotels, residential buildings, high-rise industrial buildings, large-span factory buildings and tower-like buildings like tall chimneys.

We have exported to many countries such as Bangladesh, Vietnam, Thailand, Malaysia, Australia, Kazakhstan, Congo, Ethiopia, Peru, Brazil, Egypt and Iceland and so on.

Tower Crane

2-Specification

Series

QTZ80

Standard Model

6010

Max. Lift Load

8t

Tip Load

1.0t

Free Standing Height

40m

Max. Anchorage Height

160m

Jib Length

60m

Mast size

1.833×1.833×2.5m



Lift Mechanism

Lifting Speed

(a=2)100/50/10 m/min

(a=4)50/25/5m/min

Lift motor

30kw

Trolley Mechanism

Trolley speed

22/44 m/min

Trolley Motor

4.5/3.0kw

Slewing Mechanism

Slewing speed

0.62r/min

Slew Motor

3.7kw*2

Jacking Mechanism

Jack climbing speed

0.4m/min

Jack climbing motor

7.5kw

Voltage

380V/50Hz/3P

Luxury Operate Cabin, Schneider Electric Parts

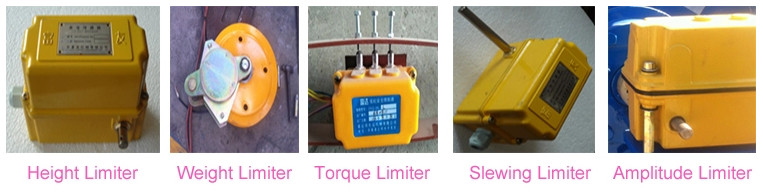

3-Safety Features

1

Torque limiter

Control torque, it will warns when lifting weights reach to 90% of rated lifting torque. When reach to 110% of the rated lifting torque, it will limit rising upwards and trolley.

2

Weight limiter

Control the maximum lifting capacity, lifting weight reach to 40% of the rated capacity, limit high-speed lifting; lifting weight reach to 110% of the rated capacity, limit  the lifting up

3

Height limiter

Control the lowest and highest extreme position of lifting hook

4

Slewing limiter

Control the extreme turns number of turn left and right

5

Amplitude limiter

Control trolley limit position of inward and outward

6

Overload protection

If the material is over the capacity, the crane will give a sharp warning for protection itself

7

Emergency brake

If the operation staff  encounter some emergency situation, we could start the emergency brake system to protection the related treasure

8

Control Method

Room control or remote control to avoid any injury to the operation staff

9

Main lifting motor

with thermal protection and currency protection

Tower Crane

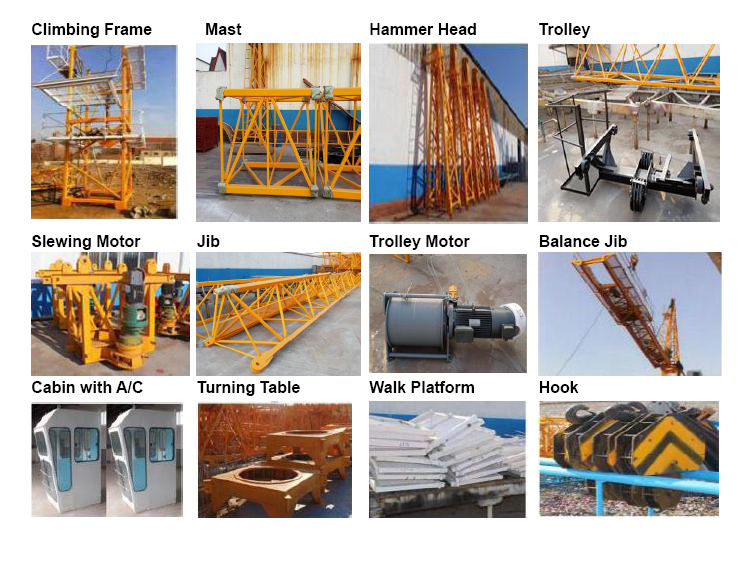

4-Product Details

Tower Crane

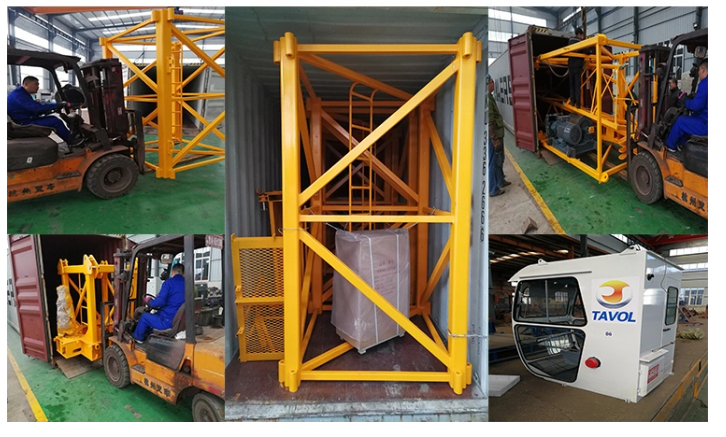

5-Delivery, shipping and serving

Packaging: High quality seaworthy package, usually by 40HC container.

 Delivery time: 25 working days after advance payment

Tower Crane

6. FAQ:

 If you are interested in our 8Ton Self Erection Construction Tower Crane, please no hesitate to contact us with following parameters:

1. Max load capacity?

2. Tip load?

3. Jib length?

4. Hoist lifting height?
