LD Single girder Overhead Crane Description

5 ton Overhead Crane Single Girder Top Running type for warehouse and factory
overhead crane capacity:LD500kg - LD32 ton
overhead crane span: 6m - 31.5 m
overhead crane lift height:3m - 60m
Availability:
Quantity:
  • LD Single girder Overhead Crane Description
  • Tavol
  • 044

Product Description

LD model single girder overhead crane consists of one girder beam supported on each side by an end truck.The electric hoist (electric wire rope hoist & electric chain hoist) are underhung—meaning they run on the bottom flange of the single girder.


01- Single Girder Overhead Crane Structure:

LD 5 ton Overhead Crane Single Girder Top Running type for warehouse and factory consists of one overhead crane beam supported on each side by an overhead crane end truck. The electric hoist (electric wire rope hoist & electric chain hoist) running on the bottom flange of the main girder.


Single girder overhead crane is also called single beam bridge crane, single girder overhead travelling crane, EOT crane, usually used in plant, warehouse, stock ground, different places to lift goods.

According to main girder and hoist type, it separate with two type:

1- LD Overhead Crane Single Beam Universal Design

2- LD Overhead Crane Single Box type girder Design

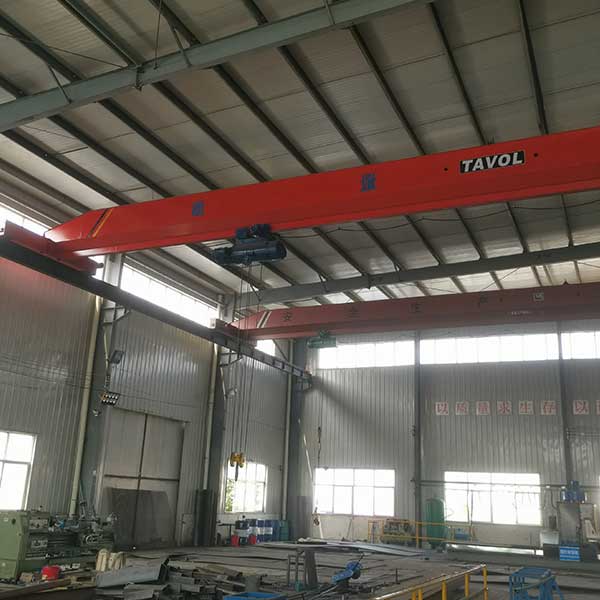

5 ton bridge crane universal design with CD/MD Hoist

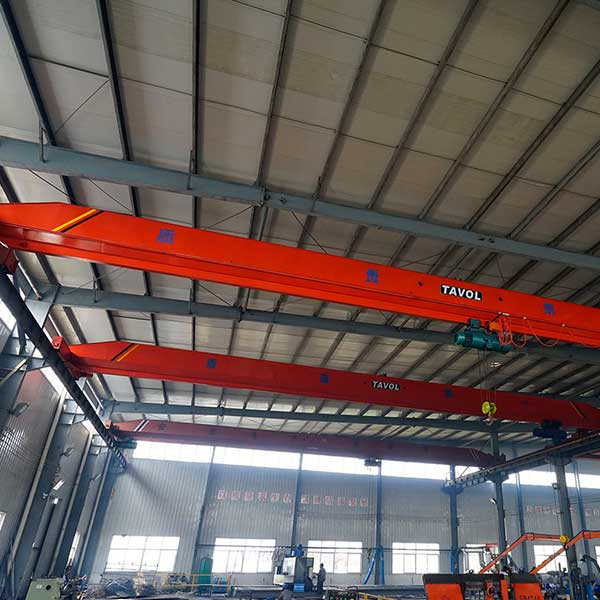

5 ton overhead crane box girder design with CD/MD Hoist

02- Single girder Overhead Crane Specification:

SI

Descriptions

Reference Data

1

Single girder overhead crane capacity

500kg, 1 ton, 2 ton, 3 ton, 5 ton, 10 ton, 15 ton, 20 ton, 32 ton,

2

Single girder overhead crane Span

6 - 31.5 meter

3

Single girder crane Lifting height

3- 60 meter

4

Single girder bridge crane Work duty

A3/M3 ; A4/M4; A5/M5

5

Overhead Crane Control method

Remote control & Pendant control

6

Electrical parts

CHINT or Schneider

7

Overhead Crane Motors

China Nanjing brand

8

Overhead Crane Bearings

China famous brand "HRB"

9

Overhead Crane Hook

Forged hook with safety lock

10

Overhead Crane Hoist Lifting speed

0-8M/Min (8/0.8m/min)

11

Crane hoist Traverse speed

0-20M/Min

12

Single girder Bridge Crane Long travelling speed

0-20M/Min (20/30m/min)

13

Variable frequency drives

Optional

  03- Single girder overhead crane Application:

LD model single girder bridge crane mainly used for manufacturing and maintenance applications.

It is widely applicable to multiple fields such as: Pre Engineered Steel Building, Steel Plant, Steel Product Maker, Oil Industry, Plastic Plant, Cement Plant, Power Plant , Mine Industry, Food Industry, Chemical Industry, Cable Plant, Machine Tools, Car/Truck Industry, Transport Company, Construction Company, Electrical Company, Shipyard, Stone Yard, Installation and Maintenance etc.

Single girder overhead crane and electric hoist structures are manufactured by strictly following European-style technology standards and Chinese national standards.

Single girder overhead crane is typically less expensive due to:

1. Reduction in freight expenses

2. Faster installation

3. Simpler hoist and trolley design

4. Lighter runway beams

04- Single girder overhead crane Package:

1. Electric parts are packed by high quality plywood crate, to reduce distortion

in conveying;

2. Main beams, end beams are packed by plastic woven cloth, to reduce

abrasion when transport.

3. Whole set of overhead crane will be shipped by container or by bulk.




05- About Tavol

Tavol is an overhead bridge cranes manufacturers, overhead crane installation, Overhead Crane Repair, Bridge crane maintenance, overhead crane operator training and overhead crane service company from China.

Following the china and international overhead crane design standard, focus on the overhead crane safety and bridge crane safety to the overhead crane operator, help you to solve your warehouse crane and factory crane troubles, try to reduce the overhead crane cost, mainly made overhead cranes, bridge cranes, gantry cranes, warehouse cranes, overhead jib cranes, overhead cranes and hoists, underhung bridge crane, workstation bridge crane, overhead crane kits etc.

The Popular model including 5 ton Crane, 10 ton crane, 5 ton gantry crane, 5 ton overhead crane, 5 ton bridge crane, 10 ton overhead crane, 10 ton gantry crane, 20 ton overhead crane, 2 ton overhead crane, 10 ton bridge crane, 2 ton bridge crane, 1 ton overhead crane, 20 ton gantry crane, 1 ton bridge crane, 20 ton bridge crane, 3 ton bridge crane, 15 ton overhead crane, 15 ton bridge crane, 25 ton overhead crane, 5t overhead crane, 10t gantry crane,10t overhead crane etc.

Except the Full sets Overhead Bridge Cranes, Tavol also overhead crane suppliers of the bridge crane components, overhead crane accessories and overhead crane attachments and parts, like overhead crane trolley, overhead cranes and hoists, overhead crane rail, overhead crane wheels, overhead crane pendant, overhead crane motor, overhead crane trolley system, overhead crane track, bridge crane wheels, overhead crane hook, overhead crane brake mechanism, overhead crane gearbox, overhead crane cable, overhead crane rollers, Overhead crane bumpers, overhead crane busbar, Overhead Cabin etc.

As a top overhead crane manufacturers, Tavol supply the overhead eot crane and overhead crane project all of the world market, from Asia to Middle east, Africa and American countries, like Indonesia, UK, Singpore, Canada, India, Australia, Egypt etc.
