Hoist Trolley for Double Girder Cranes with Popular Model 3t, 5t, 10t, 15t, 20t, 32t

Hoist Trolley for Double Girder Cranes with Popular Model 3t, 5t, 10t, 15t, 20t, 32t
Double girder electric hoist trolley is widely used in double girder bridge crane and double girder gantry crane to be treated as the lifting and cross travel mechanism. It is mainly composed of fixed electric hoist, trolley, motor, brake, buffer, wheel, etc.
Quantity:
  • LH Model Hoist Trolley
  • Tavol
  • 051

Product Description

Hoist Trolley for Double Girder Cranes with  Popular Model 3t, 5t, 10t, 15t, 20t, 32t

Double Girder Electric Hoist Trolley for Overhead Crane and Gantry Crane, you can buy the cranes system from us, you also can buy the crane kits from Tavol, Tavol will supply the main girder welding drawing.


Product Introduction:

Double girder electric hoist trolley is widely used in double girder bridge crane and double girder gantry crane to be treated as the lifting and cross travel mechanism. It is mainly composed of fixed electric hoist, trolley, motor, brake, buffer, wheel, etc.

Sometimes there are 2 sets of electric hoist fixed on same trolley to meet the requirement of main lift and auxiliary lift.

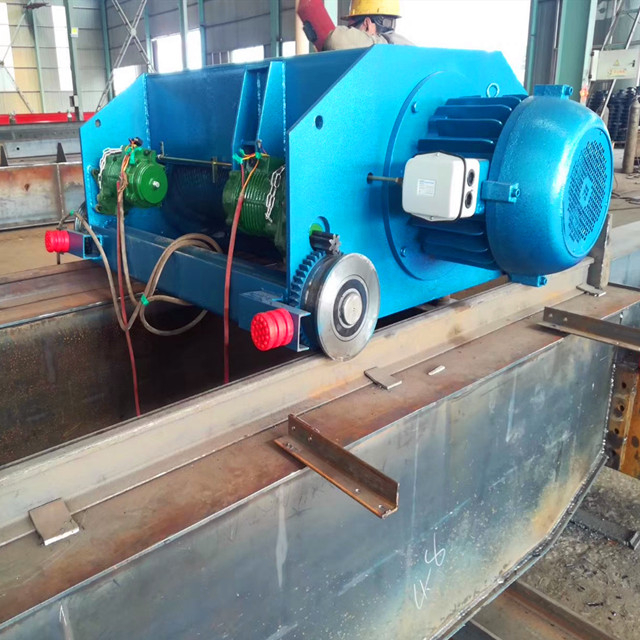

mmexport1587342319531


Product Specification:

SI

Descriptions

Reference Data

1

Lift capacity

1-32T

2

Lifting height

6-30M

3

Work duty

M3-M4

4

Electrical parts

CHINT or Schneider

5

Motors

Chinese Nanjing brand

6

Hook

Forged hook with safety lock

7

Lifting speed

0-8M/Min

8

Cross travelling speed

0-20M/Min

9

Variable frequency drives

Optional

Product Application:


Normally double girder electric hoist trolley is used in double girder eot crane and double beam gantry crane.

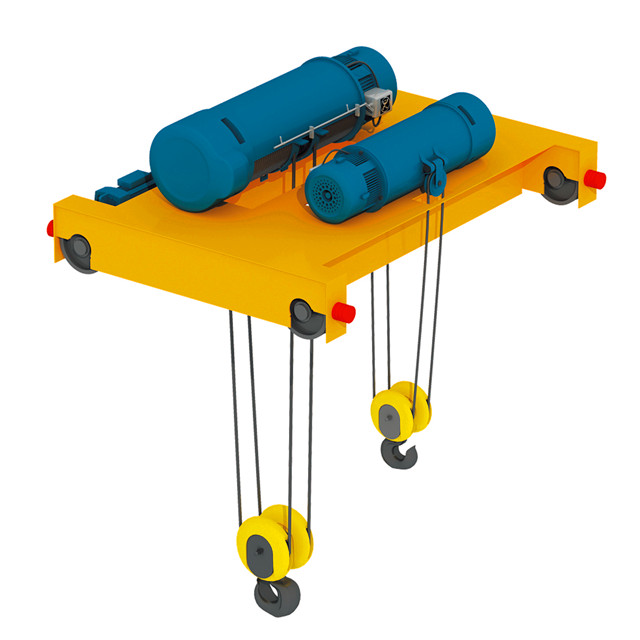

double girder trolley
